Many organizations jump straight to hardware. The result is often too many permissions, uncontrolled entry points, weak visitor control, thin audit trails and a system that doesn't talk to anything else in the building. Fixing that after the fact costs far more than designing it right.
This guide walks through the planning sequence: assessing requirements, defining access policy, designing the architecture, choosing technology, implementing and testing, and keeping the system healthy afterward. It tracks the SAFE framework (Survey, Apply, Fortify, Evolve) from Mastering Modern Security, the book by Rob Jackson, CEO of SafeEdge Solutions, which oversees IPS. Whether you're securing one building or a multi-site campus, the order of decisions matters as much as the equipment.
Key Takeaways
- Document a risk assessment and a full inventory of users, access points and assets before choosing hardware.
- Treat authorization, credentials, door hardware, software and emergency behavior as one system.
- Weigh interoperability, cybersecurity, auditability and growth ahead of the lowest equipment price.
- Build credential ownership and testing into the plan from day one.
- Bring in an experienced integrator for multi-site or regulated environments.
What Is an Access Control System? Components, Models, and Planning Goals
An access control system combines policies, credentials, readers, controllers, locks, management software and procedures to decide who can enter which areas and when. Think of it as a decision engine wrapped around your doors.
The Four Core Components
Every working system relies on four practical pieces:
- Credentials: cards, fobs, mobile credentials, PINs, biometrics or temporary visitor passes
- Readers: devices at the door that capture a presented credential
- Controllers and locking hardware: panels that make the grant/deny decision, plus the electrified locks, request-to-exit devices and door position switches that carry it out
- Management software: the database, audit logs, alerts, integrations and admin tools
The platforms IPS installs cover that full range, scaling from a single door to integrated systems with thousands of openings and alarm points.
Authentication vs. Authorization
These get confused constantly. Authentication confirms who is presenting a credential. Authorization decides what that person may access, and under what conditions.
Authorization Models Worth Knowing
Five models describe how organizations structure authorization:
| Model | How Permissions Are Decided |
|---|---|
| DAC | An owner or authorized controller grants access at their discretion |
| MAC | A central authority applies fixed rules using sensitivity classifications |
| RBAC | Users receive roles, and roles carry predefined privileges |
| ABAC | Decisions evaluate attributes like time, location and clearance |
| PBAC | A policy layer combines multiple factors and conditions |
Most real facilities blend them. A hospital might use RBAC for general staff access, with ABAC-style time limits on medication rooms. That practical mix is what works day to day.
Planning Goals That Shape the Design
Hardware and software choices should follow clear outcomes, not the other way around. Most commercial and public-sector projects aim for:
- Least-privilege access, so people reach only the areas their role requires
- Logs that hold up in compliance reviews and investigations
- Predictable door behavior during network or power failures
- A path from one door or site to a multi-site portfolio
- Clean integration with the video, intrusion and identity systems already in place
Those goals decide credential type, door hardware, authorization model and software architecture before any product is chosen.

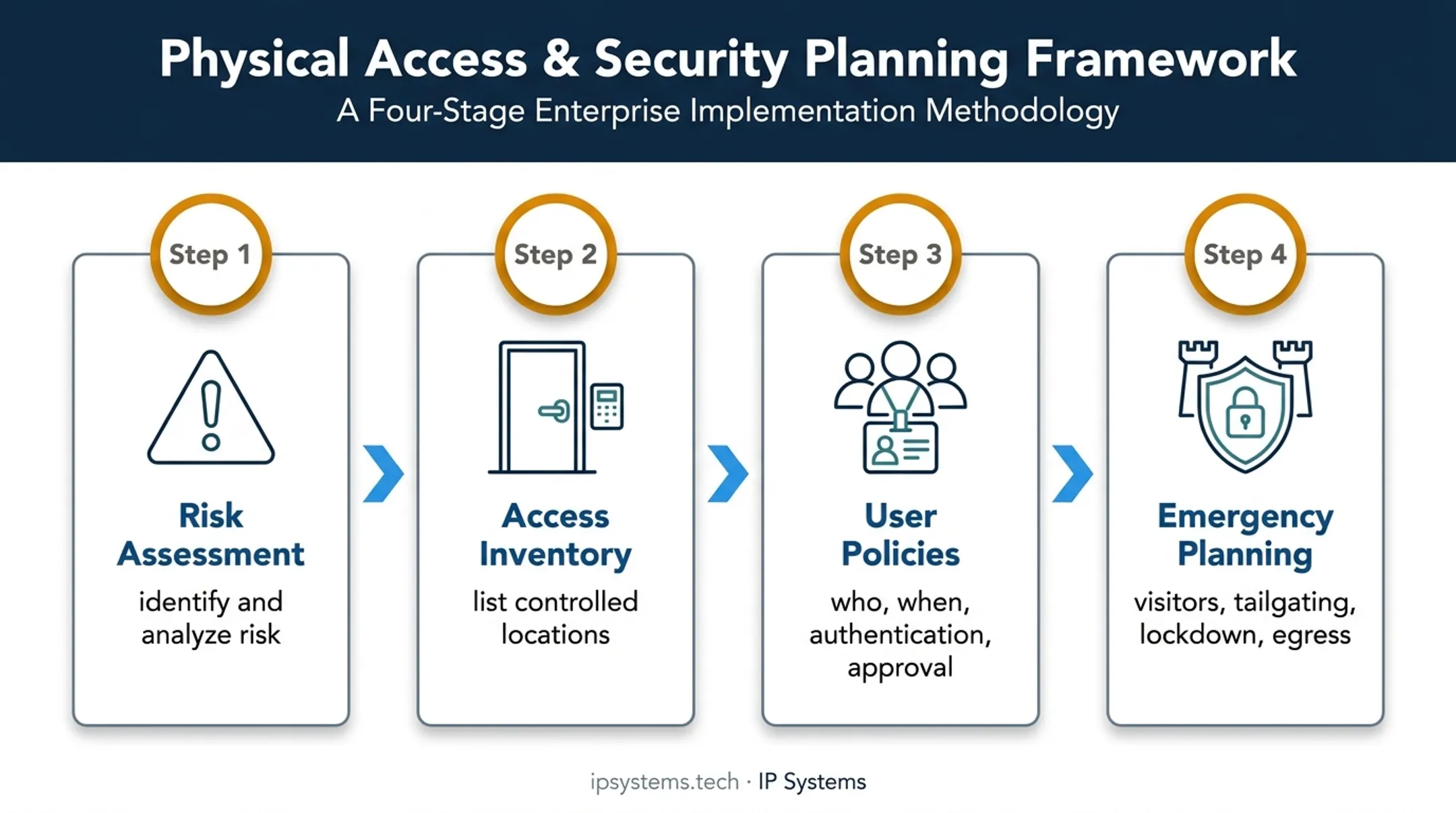

Assess Security Requirements and Define the Access Policy
In our experience, skipping the assessment is the most common reason access control projects disappoint. Every later decision about hardware, software and budget depends on it.
Start With a Risk and Site Assessment
Document your assets, sensitive areas, likely internal and external threats, existing controls, incident history and regulatory obligations. The ANSI/ASIS Security Risk Assessment Standard (ASIS SRA-2024) lays out a structured process: establish the context, plan the assessment, identify, analyze and evaluate risk, then carry out post-assessment activities.
IPS starts projects with an obligation-free System Assessment that evaluates the property and identifies risks, whether you're planning a new building, an upgrade, or want to find where you're vulnerable.
When is a formal assessment worth it? If you have more than one site, a regulated environment, a recent incident, or an existing system you're unsure about reusing, start there before asking anyone for pricing.
Build a Complete Access-Point Inventory
List every location that could reasonably need controlled access:
- Exterior doors and loading docks
- Interior restricted rooms and server rooms
- Parking areas, gates and elevators
- Medication or records storage
- Production areas and emergency exits
Not every door needs a reader. Decide which openings truly need control and which are better served by a door contact and a camera. Walk every door with someone who knows the hardware. Door-hardware surveys catch frames, hinges and exit devices that will change the lock choice. Then rank each threat and access path by severity, so the first budget goes to the worst exposures.
Map User Groups and Set Policy Per Area
Identify every group that uses the facility: employees, managers, contractors, vendors, visitors and temporary workers. Include terminated and inactive users so revocation is defined from day one. For each restricted area, define:
- Who may enter, and under what role or clearance
- When access is allowed (schedules, shifts, exceptions)
- How strong authentication needs to be for that risk level
- Who approves, reviews and revokes that access over time
Item 4 is the one most often left blank. A common problem we see is a system with no named owner after go-live. HR stops sending terminations, contractors keep active badges, and the database drifts.
Plan Operational and Emergency Requirements
Visitor processing, tailgating, lockdown procedures and fail-safe versus fail-secure behavior all belong in this phase. Treat accessibility and fire and life-safety coordination as required inputs, and settle them before hardware and cable decisions are locked.
Design the System Architecture and Choose the Right Technologies
Once policy is set, architecture follows. This is where most trade-offs happen, and where mistakes get expensive.

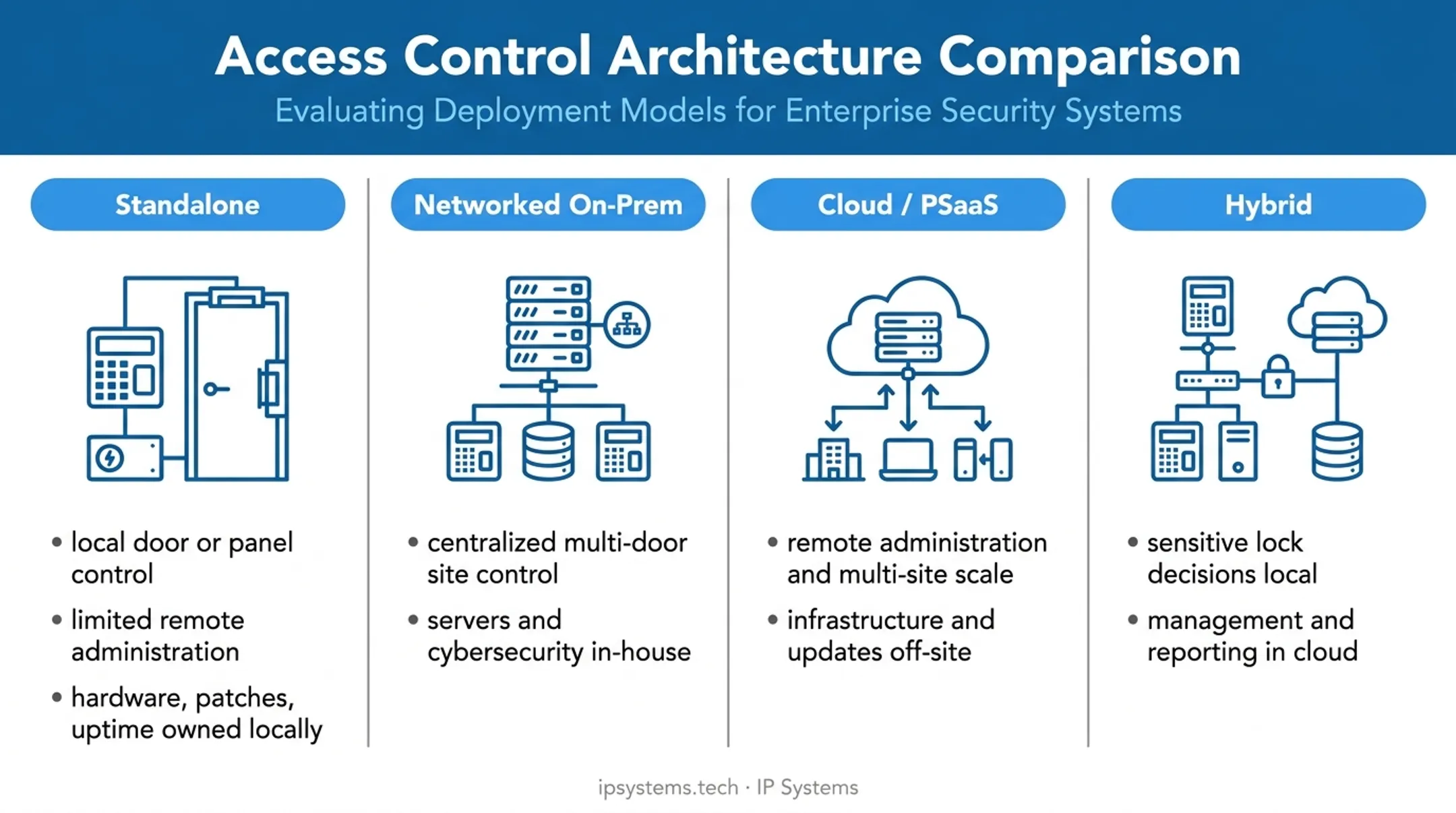

Standalone, Networked, Cloud, or Hybrid?
Weigh each model on control, remote administration, who owns cybersecurity, and how far you need to scale:
- Standalone: local control at the door or panel; limited remote admin; you own hardware, patches and uptime
- Networked on-prem: central control across a site; servers and cybersecurity stay in-house
- Cloud / PSaaS: strong remote admin and multi-site scale; infrastructure and updates move off-site
- Hybrid: keep door decisions local at the panel; push management, reporting and health monitoring to the cloud
A hosted path, such as IPS Hosted & Managed Services (Physical-Security-as-a-Service), moves the server burden off-site. You get 24/7/365 system availability, redundancy through certified data center partners, and immediate software updates without keeping servers in your own building.
The trade-off: cloud usually lowers capital cost and IT workload but adds a recurring fee and depends on your internet connection. On-prem costs more up front, needs IT involvement for patching and backups, but has no per-door subscription. Bandwidth matters more for video than for access control, so run that math separately if you're moving both.
Choosing Authentication Methods
There's no single best credential. The right choice depends on risk, user volume and how fast people need to get through the door.
- PINs avoid a physical token but depend on people keeping them secret
- Proximity and RFID cards are fast and familiar but vary widely in security
- Smart cards add encryption and multi-application use
- Mobile credentials are convenient but need compatible readers and a rollout plan
- Biometrics make sharing hard but need a fallback method
Legacy 125 kHz proximity credentials deserve a specific warning. NIST's guidelines for securing RFID systems identify eavesdropping, rogue scanning and cloning as threats to RFID systems without cryptographic protection. Treat legacy prox as something to migrate away from on any high-risk door. The reader-to-panel connection matters too: OSDP supervises the reader and supports encryption, while Wiegand does neither.
Specify Door Hardware by Opening Type
Electric strikes, maglocks, electrified exit devices, gate operators, intercoms and request-to-exit devices serve different situations. Choose based on traffic, indoor or outdoor exposure, vandalism risk and egress requirements.
Fail-safe versus fail-secure has to be decided door by door, with your fire protection engineer and the authority having jurisdiction. Don't leave it to the installer on site. NFPA guidance on permissible egress door locking arrangements makes the priority clear: access control can't block code-compliant emergency egress, even when that costs some security convenience.
Plan Supporting Infrastructure and Integrations
Cable, network segmentation (a dedicated security VLAN), PoE or local power, and battery backup all need to be designed, not assumed. Check PoE budgets on every switch that will power readers or controllers. Plan integrations with the same care:
- Video surveillance and intrusion detection
- Fire and life-safety systems
- Visitor management and HR/identity systems
- Elevator and parking controls
IPS designs access control, video, fire systems and cloud-based services as one coordinated system rather than separate silos. One platform versus best-of-breed is a real trade-off: a single platform is simpler to administer and support, while mixing products can get you a better fit in one area at the cost of more integration work and more vendors to manage.
Build in Room to Grow
Reserve capacity for more doors, sites, users and credentials before you need it. Get written documentation on compatibility, licensing, ownership and recurring costs before procurement. IPS pricing is based on the number of devices and the services in scope, so a clear device count and scope up front avoids surprises later.
Then write the decisions down as a standard. Larger owners do this as CSI MasterFormat Division 28 (Electronic Safety and Security) specifications naming approved manufacturers, reader types, card encryption and device placement. A smaller owner can use a short user-requirements document. Either way, the next site starts from a tested playbook, contractor submittals have something to be checked against, and site managers are less likely to buy off-standard hardware on their own.

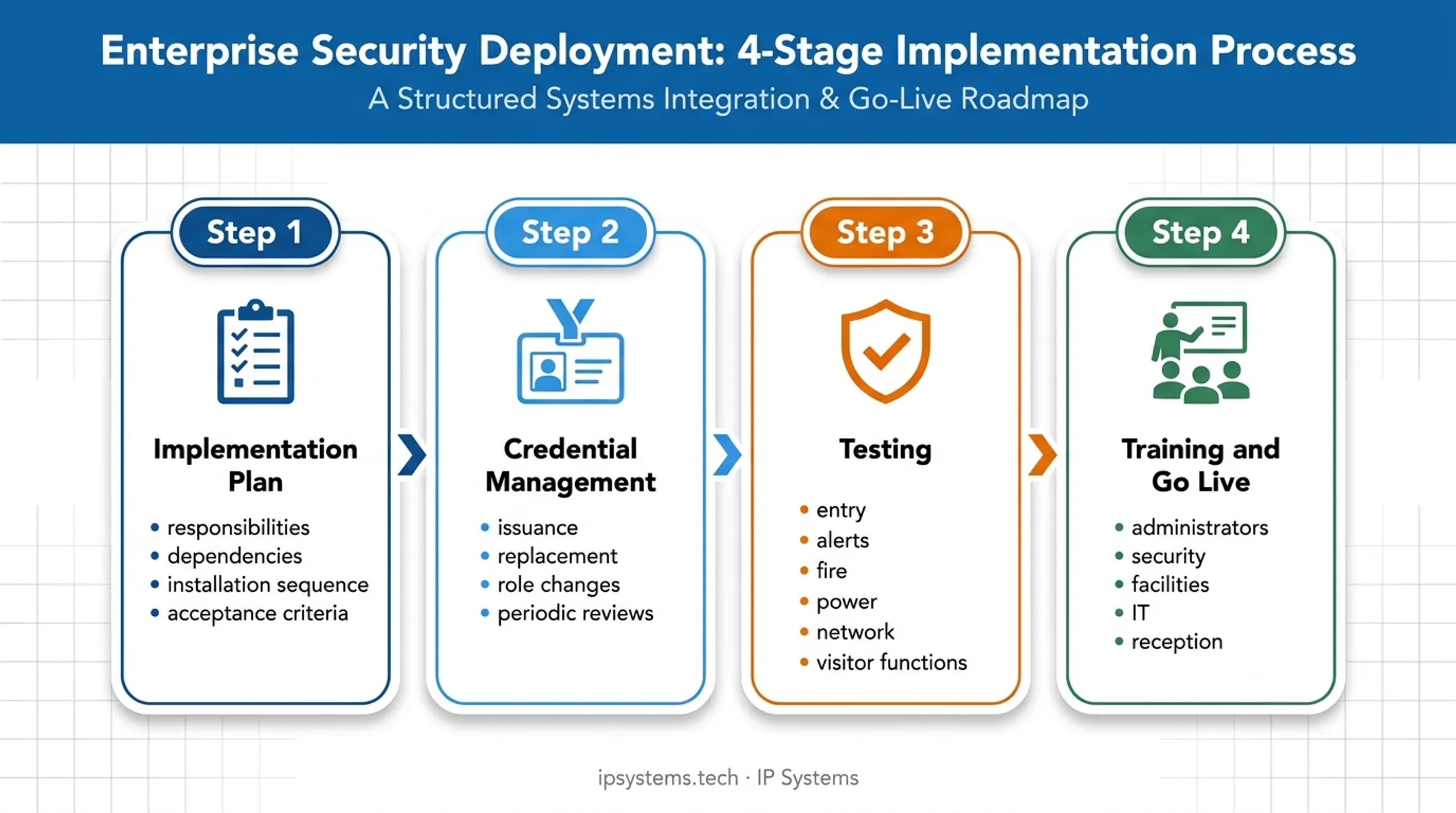

Implement, Test, and Operate the Access Control System
A good design still fails if implementation is rushed or testing is skipped. This phase turns the design into a working, verified system.
Convert the Design Into an Implementation Plan
Define responsibilities, dependencies, installation sequence and acceptance criteria before work starts. Decide between a phased rollout and a single cutover. Phasing is slower but lets you prove the design on a few doors while the old system still works. Name who owns each role: the engineer writing the specs, the integrator, the electrical contractor, and whoever will add new readers to your network and Active Directory afterward. IPS assigns project managers, installation technicians and software specialists to deployments, and clients accept the installation and training before the project closes.
Establish Credential Management Procedures
Cover the whole credential lifecycle:
- Identity verification and issuance
- Lost or stolen credential replacement
- Role changes and terminations
- Periodic access reviews
Good credential procedures also remove a hidden cost: re-keying every time someone leaves. Revoking a credential in software replaces that.
Test, Train, and Go Live
Before go-live, verify:
- Normal and denied entry attempts
- Door-held-open and forced-door alerts
- Fire alarm interaction and emergency egress behavior
- Power loss, network loss and battery backup recovery
- Visitor access and lockdown functions
Record every test result, including open issues, with an owner and retest date.
Train every role that uses the system (administrators, security, facilities, IT and reception) on daily operation, incident response and escalation. Then hand over the documentation: as-builts, door schedule, panel maps and admin credentials.
Assessment, design, installation and support are easier to get right with an experienced partner. IPS has worked with video, access control, fire and communication systems since 1998, serving businesses and public-sector organizations with a standardized process from assessment through ongoing support.

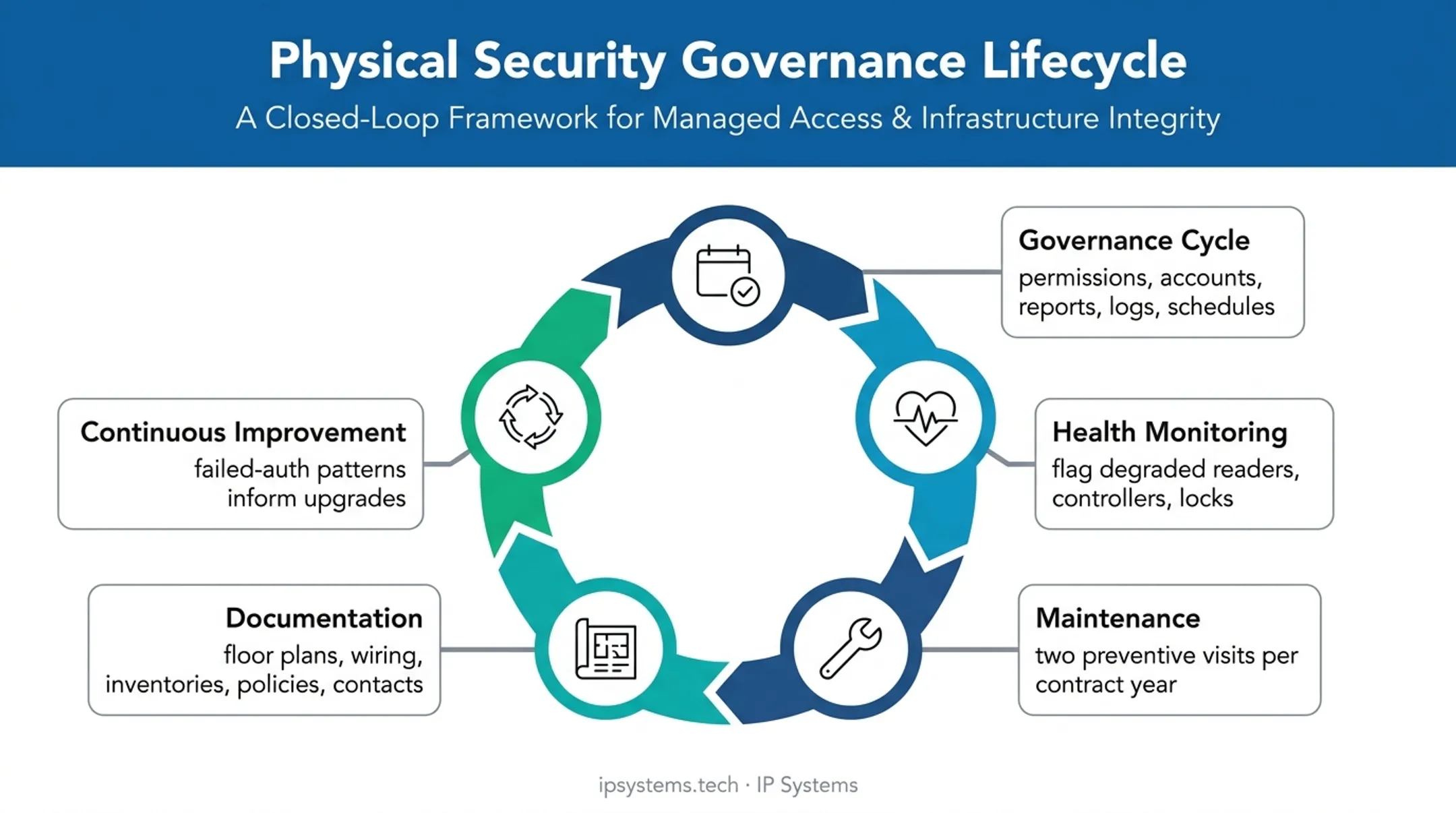

Monitor, Maintain, and Improve the System Over Time
Installation day isn't the finish line. Access control systems degrade in small, easy-to-miss ways, such as a weak backup battery or a skipped firmware update, unless someone is watching.
Set a Recurring Governance Cycle
Review permissions, inactive accounts, exception reports, audit logs and door schedules on a set cadence. Track:
- System availability and service response times
- Unresolved alarms and failed authentication patterns
- Overdue access reviews
- How quickly credentials are revoked
Use Centralized Monitoring to Catch Problems Early
Device-health monitoring can flag a failing reader, controller or lock before it fails at a bad moment. The IPS Network Operations Center provides constant health checks, smart dashboards and predictive maintenance for the security devices we support. An IPS application sends outbound data over TLS to IPS's secure AWS server, and the NOC provides real-time risk detection with nearly immediate notifications.
Monitoring finds the problem. A maintenance contract gets it fixed. IPS support programs include two preventive maintenance visits per contract year, plus access to a documented history of the system from the first sales visit through installation and resolved support issues.
Keep Documentation Current
Floor plans, wiring diagrams, device inventories, credential policies and vendor contacts should never go stale. Outdated documents are often the first thing that slows an incident response or an audit.
Plan replacement now, too. Most installs don't, and unplanned replacement means rush pricing. As a guideline, access control servers and databases last 4–6 years, panels and power supplies 7–10, and card readers 10–12. Budget for them before they fail, so a refresh is routine work and not an emergency.
Treat incidents and audit findings as input, not just records. Failed-authentication patterns, exception reports and after-action notes should feed back into permissions, door schedules and hardware upgrades, so the system gets tighter over time, not just older.
Apply Access Control Planning to Different Facility Types
The planning process stays the same, but priorities shift by facility type. Each environment has different risks, traffic and compliance obligations.
- Healthcare facilities balance regulatory, clinical and facility-protection needs at once. Medication storage and patient-record areas need stronger authentication than general corridors.
- Education campuses usually prioritize visitor management and lockdown readiness across buildings with constant public traffic.
- Manufacturing sites need clear separation between general areas and hazardous or production zones, often with different credential tiers.
- Data facilities generally need layered authentication and detailed audit trails.
- Government and municipal buildings often combine public access areas with highly restricted zones in one footprint.
IPS works with organizations in healthcare, education, federal and municipal government, banking and finance, commercial real estate, data and technology, and manufacturing, among other industries. Each sector's access control priorities follow its own risk profile.
When one organization spans several sites or facility types, a phased deployment lets you secure the highest-risk locations first while keeping policy and central administration consistent. With central remote administration, a policy change at headquarters takes effect at every site without a truck roll.
If you have an existing system, start by deciding what can be reused. Existing cable, panels or locks can stay if they meet your needs. If they don't, replacing them during the project is usually cheaper than working around them for years. When you're ready, talk to a security specialist at IPS or schedule an access control assessment.
Frequently Asked Questions
How do you design an access control system?
Start with a risk assessment, then map access points and user groups and define permissions. Choose authentication and hardware to match risk, and plan software, integrations, emergency behavior, testing and maintenance from day one.
Which access control model is best: RBAC, ABAC, or PBAC?
It depends on how complex your organization is and which conditions should affect access, such as time, location or clearance. Most facilities do best with a layered combination rather than a single model.
What are the main access control models (DAC, MAC, RBAC, ABAC, PBAC)?
DAC lets an owner grant access at their discretion; MAC enforces fixed central classification rules. RBAC assigns permissions by role, ABAC by attributes such as time and location, and PBAC under one multi-factor policy.
What is an access control system?
It's the combination of policies, credentials, readers, controllers, locks, management software and procedures that decides who can enter specific areas and when, along with the audit trail that records it.
What are the four main components of an access control system?
Credentials (cards, fobs, biometrics), readers that capture them, controllers and locking hardware that enforce decisions, and management software that logs activity and generates alerts.
What are examples of RFID-based access control projects?
Typical projects include employee building entry, multi-building campus access, warehouse zone limits, parking or gate control, and contractor or visitor credentials. Match each credential's security level and read range to the risk of the area it protects.
