Introduction
Every facility runs on a loop. Something senses a condition, something decides what to do, and something acts. Secure control systems are what make that loop trustworthy, whether it's one building's door locks or cameras and access points across a dozen sites.
When it goes wrong, the consequences are physical. NIST's guide to operational technology (OT) security lists unauthorized changes to instructions, commands, or alarm thresholds as a threat that can damage or shut down equipment, create environmental impacts, or endanger people.
For U.S. commercial and public-sector organizations, downtime, compromised credentials, and blind spots show up as compliance findings, insurance claims, and lost trust.
This article covers the four core control-system architectures, explains the ICS vs. SCADA question that confuses many teams, and walks through how to choose. We also cover the part IPS works on every day: the physical security layer around these systems, and the security devices that are themselves networked control systems.
Key Takeaways
- Secure control systems combine sensing, logic, and action to run operations while limiting risk.
- Four architectures come up most: open-loop, closed-loop, distributed control, and SCADA.
- ICS is the umbrella category. SCADA is one supervisory architecture within it, built for spread-out assets.
- Layer physical, technical, and administrative safeguards. No single product makes a system secure.
What Are Secure Control Systems?
A secure control system is the full chain of sensors, controllers, software, networks, interfaces, and actuators that watches conditions and directs a response: releasing a door, adjusting airflow, or closing a valve.
The "secure" part can't be added later. It is protection around the whole chain, so unauthorized users can't manipulate it, disrupt it, or force it into an unsafe state.
Two ideas often get lumped together:
- Control-system type describes how the system operates: open-loop, closed-loop, distributed, or SCADA.
- Security-control type describes how an organization prevents, detects, or corrects risk: locked equipment rooms, encrypted communications, background-checked staff, tested incident-response plans.
You need both. A well-engineered closed-loop system with an unrestricted controller is as exposed as a poorly designed one.
Why Are Secure Control Systems Important?
When the security layer is right, you get:
- Fewer unplanned stoppages
- Safer access to restricted areas
- Equipment that performs as expected
- Documented events ready for audits
- Faster response when something goes wrong
When it's missing, this tends to follow:
- Unauthorized commands reaching controllers or actuators
- Compromised credentials granting access nobody approved
- Device failures nobody notices until they cause damage downstream
- Bad sensor data feeding bad decisions
- Slow incident response because nobody was watching
- Fragmented visibility across sites

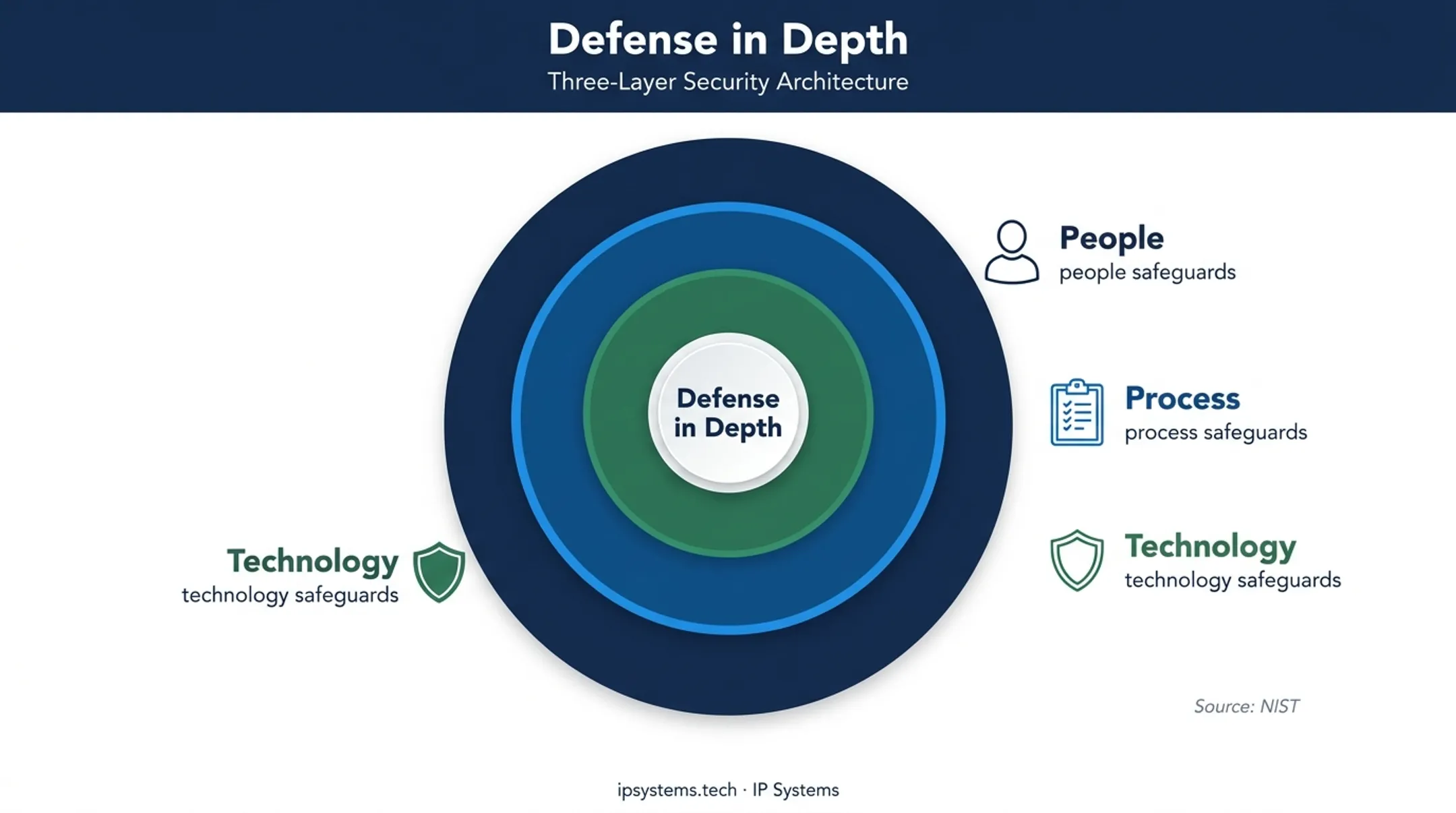

That's the case for defense in depth. NIST describes it as preventing single points of failure in cybersecurity defenses, with layers of protection organized around the critical system, instead of relying on one control.
In practice, those layers work together:
- Access control, video surveillance, and alarms
- Network protections and device-health monitoring
- Written policies, backups, and routine maintenance
On the physical side, IPS designs and installs access control that restricts who can reach equipment rooms, IDFs, and control rooms, with an audit trail of every entry. A problem we see often is a well-protected OT network sitting behind a door that half the building has a key to. It helps to think in the order Deter, Detect, Delay, Respond, working outward from the asset. An outdated alarm that never detects an after-hours entry into a server room leaves you with footage to review afterward and nothing that stopped the loss.

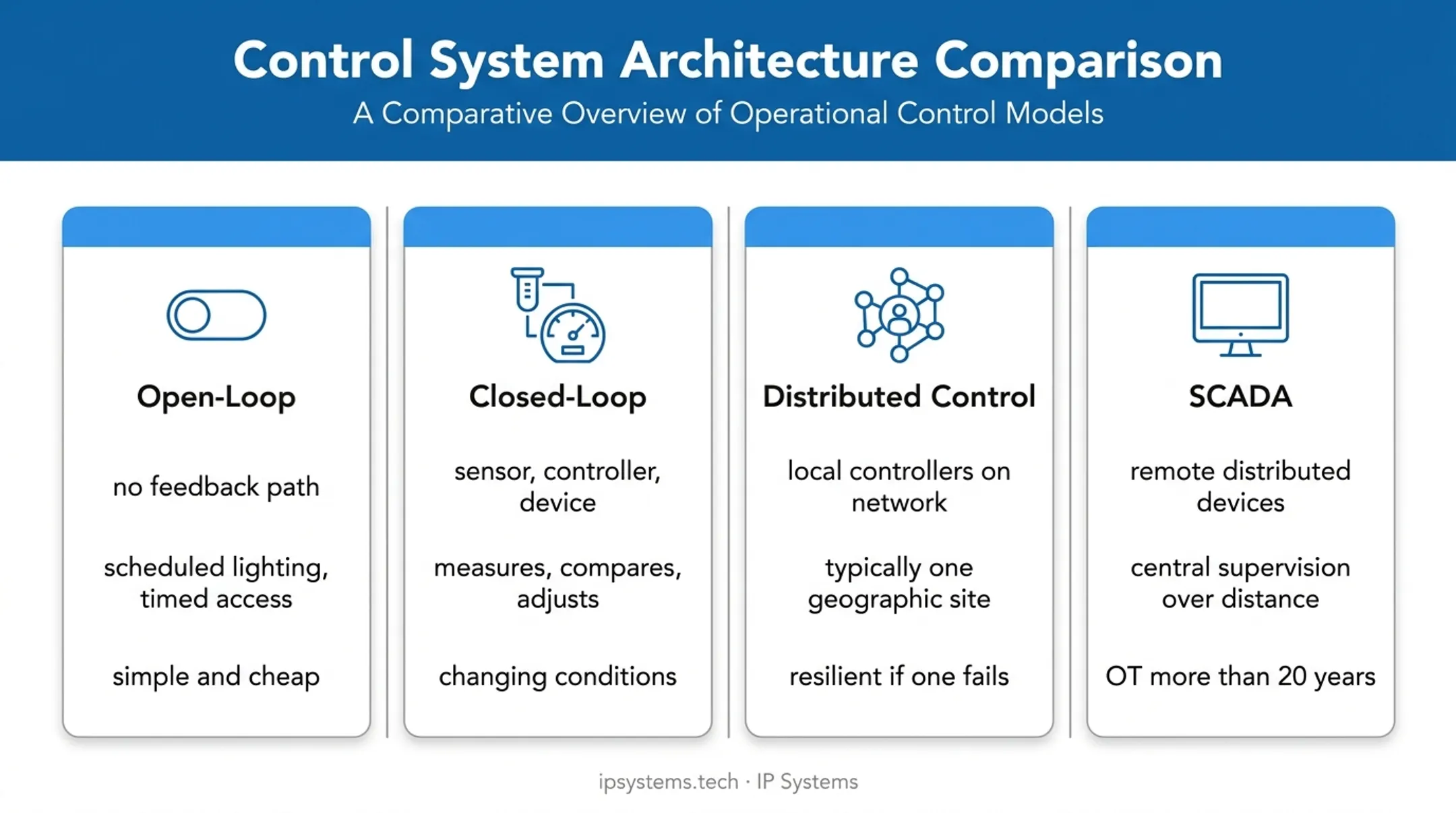

Types of Secure Control Systems
No architecture works everywhere. The right one depends on how fast you need a response, how complex the process is, how spread out your assets are, your safety requirements, and how many people you have to run it.
Open-Loop Control Systems
An open-loop system issues a command without checking the result. There's no feedback from the output to the controller. A typical example is a heating controller that sets output from outdoor temperature and expected load without measuring the actual room temperature.
Other everyday examples:
- Scheduled lighting that turns on and off at fixed times
- Timed door schedules, such as a lobby door that releases for set hours
- Fixed-duration equipment actions that run regardless of outcome
Open-loop systems are simple and cheap, but they assume predictable conditions. If something unexpected happens, the system can't notice. That's fine for repeatable tasks. It's riskier when you need confirmation the action worked, because you depend on inspections or an operator to check. A lobby door on a schedule, for example, will release on a snow day whether anyone is there or not.
Closed-Loop Control Systems
A closed-loop system measures an output, compares it to a target, and adjusts based on that feedback. Every closed loop needs a sensor, a controller, and a controlled device. HVAC discharge-air temperature control is a classic example. So are barrier arms that confirm a vehicle has cleared before closing, and a door that reports its position back to the access panel.
Feedback improves consistency and catches faults faster. It also adds dependencies:
- Sensors have to report accurate data
- Communication paths need protection from tampering
- Software logic and configuration need the same scrutiny as any network asset
Time lag and dead time affect loop performance. A slow scan time in a digital controller can add dead time and throw off tuning. Closed-loop systems fit places where conditions change often or holding a target matters. They need more calibration, maintenance, and cybersecurity attention than open-loop setups.
Distributed Control Systems
A distributed control system (DCS) spreads control across multiple local controllers on a network instead of routing everything through one central unit. NIST defines it as control achieved by intelligence distributed about the process, rather than by a single central unit, usually within one plant or site.
In electric power, for example, NIST notes that a DCS controls the generation facility while communicating with a SCADA system that coordinates output with transmission and distribution demand.
The strength is scalability and resilience. If one local controller fails, the rest keep running. DCS is a good fit for:
- Large industrial plants
- Multi-building campuses
- Manufacturing with distinct process zones
- Complex facilities with semi-independent areas
The trade-off is complexity. You need secure network segmentation, consistent configuration on every controller, tight access management, and central oversight. NIST points to unidirectional gateways and a DMZ architecture with firewalls to keep corporate network traffic from passing directly into operational technology. Integrating a DCS well takes specialized expertise, and managing the lifecycle of dozens or hundreds of controllers isn't trivial.
Supervisory Control and Data Acquisition Systems
SCADA gathers data from remote devices and lets operators supervise, visualize, and often control those assets from a central location. NIST defines it as a computerized system that gathers and processes data and applies operational controls over long distances.
This is where ICS vs. SCADA confusion starts. ICS is the umbrella term for systems that control physical processes, including SCADA, DCS, and PLC-based setups. SCADA is one architecture in that family, built for assets spread over a wide area.
Typical SCADA uses:
- Electricity transmission and distribution
- Water and wastewater systems
- Oil, gas, and pipeline networks
- Municipal infrastructure
- Multi-site operations with primary and backup control centers
The trade-offs are real. NIST notes that an OT system's lifespan can exceed 20 years, so many legacy systems run hardware and software the vendor no longer supports and that can't be patched. OT is also time-critical, with acceptable delay and jitter set by each installation.
Remote access needs a justification, limits, and strong authentication. It's a common way in for attackers targeting legacy equipment.
Security Control Categories That Protect These Systems
Whatever the architecture, it needs a security layer around it. Most frameworks group safeguards into four practical categories, though the terms vary by standard:
- Physical controls: locked equipment rooms, badge access, restricted server areas, cameras on critical spaces
- Technical controls: network segmentation, authentication, encryption, logging, device monitoring
- Administrative controls: written policies, staff training, risk assessments, incident-response plans
- Operational or management controls: the daily practices that keep the first three working
Controls are also described by function: preventive, detective, corrective, deterrent, and compensating. Those labels overlap the categories above rather than replace them. When a legacy system can't support a required control, NIST says compensating controls should be considered. It gives encapsulation as one example, and it recommends callback systems where dial-up modems are still used for remote access.
The goal isn't a perfect taxonomy. It's layered protection across people, process, technology, and physical space, tested and maintained on a schedule instead of assumed to work.
Don't Forget the Security Devices Themselves
Access control panels, NVRs, cameras, and intercoms are networked control systems too. They take inputs, make decisions, and release doors. The same rules apply, and this is where we see the most avoidable gaps:
- Default passwords left on cameras and controllers after installation
- Security devices on a flat network instead of their own VLAN
- Vendor remote access into the NVR that nobody reviews or turns off
- Firmware that hasn't been updated since commissioning. In 2021, a critical Hikvision camera flaw (CVE-2021-36260) was disclosed and patched, yet researchers found more than 80,000 internet-exposed Hikvision cameras still unpatched in 2022
- Video retention set by the NVR default instead of a written policy
Legacy security controls can fail the same way OT does. In Mastering Modern Security, IPS's Rob Jackson describes jail control rooms running CRT monitors, grainy analog cameras, and a Windows XP touchscreen PC controlling critical doors. The intercoms were unreliable, so operators decided whether to open a door from a poor camera view. One jail IPS supports had 30% of its cameras and 60% of its intercoms not working before leadership replaced the system under a 15-year support plan with scheduled equipment replacements.

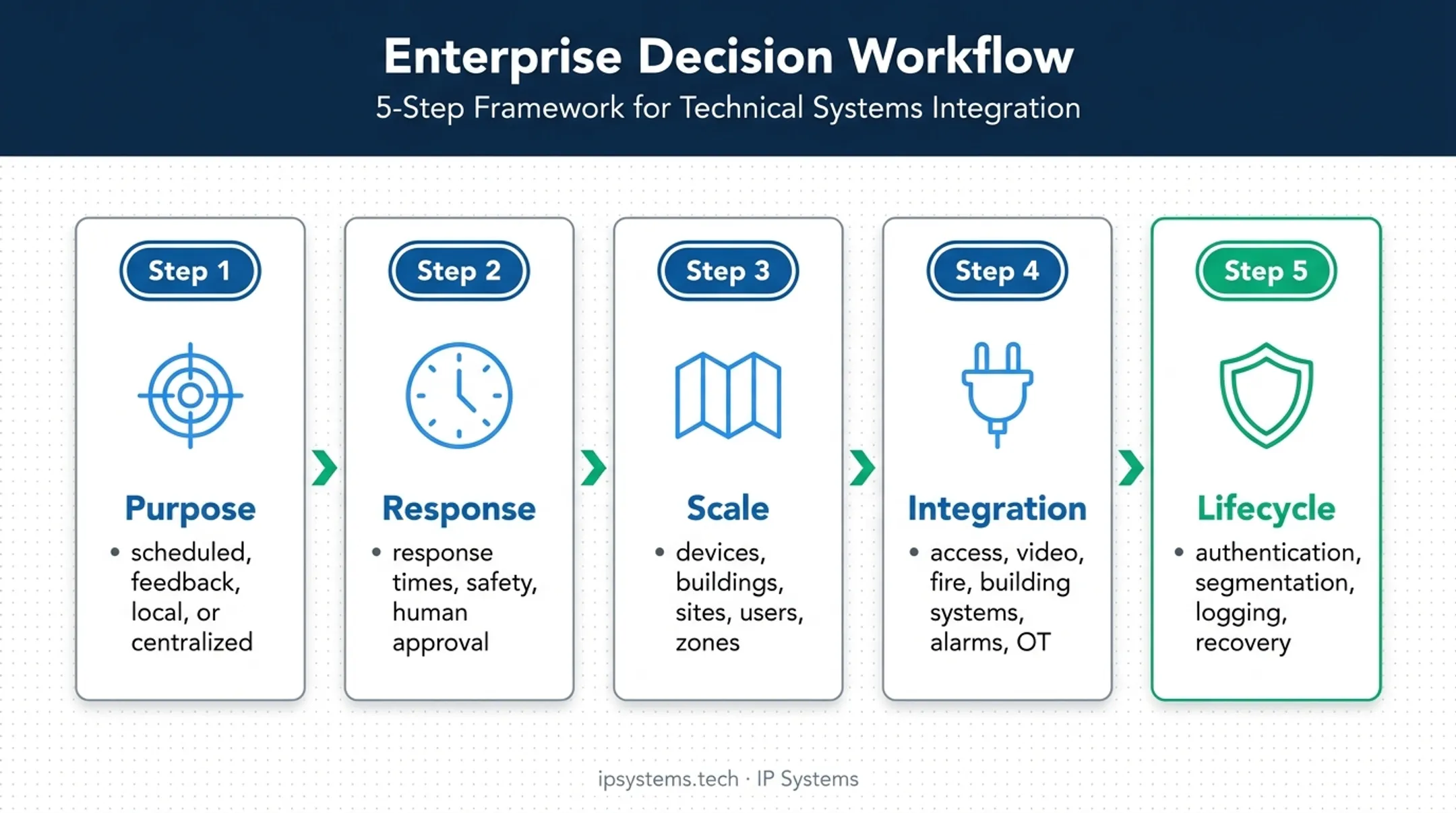

How to Choose the Right Type of Secure Control System
The right architecture depends on your process and risk, not on which system looks most advanced on a spec sheet.
Purpose, Process, and Response Requirements
Start with what the system needs to do. Simple scheduled actions? Automatic feedback and correction? Local control in each zone? Central supervision across sites? Often it's a mix.
Then assess:
- Required response times and the cost of a slow one
- Safety conditions and operating tolerances
- Whether a person should approve a command before it runs
Scale, Geography, and Integration
Count what you manage: devices, buildings, sites, users, and zones. Are assets in one place or across a region?
Then map integrations. A control system rarely stands alone. It usually needs to connect with:
- Access control and video surveillance
- Fire systems and life-safety communication
- Building management platforms
- Alarms and enterprise software
- Existing operational technology on-site
Security, Resilience, and Lifecycle Support
This is where deployments fail years later. Require role-based access, strong authentication, network segmentation, secure remote access, and event logging from day one.
Build in backup and recovery procedures, and plan to patch or replace legacy components before they become unsupported.
Also consider:
- Redundancy and local operation during communications outages
- Device-health monitoring and alert escalation
- Who owns maintenance long-term
- Whether your team can support the system for its full life
For the security systems IPS installs, our Network Operations Center adds remote, real-time risk detection. Probes on your servers and an IPS application on the video server run constant health checks and cybersecurity controls. They send outbound data over TLS to our secure AWS server, with smart dashboards and nearly immediate notifications when a device looks wrong.
Decision guidance: If you have a single building with scheduled doors and a small camera count, start with physical access to equipment rooms and a clean device inventory. If you have multiple sites and a lean IT team, prioritize central management, segmentation, and health monitoring before adding analytics. If legacy controllers can't be patched, document compensating controls first, then plan the replacement.
What to Check Before Finalizing a Type of Secure Control System
Before you sign off on a design, run it through a few final checks.
Don't over-engineer. The most advanced architecture isn't automatically the right one. Weigh benefits against installation cost, integration effort, training, maintenance, and eventual replacement.
Don't separate performance from security. A system that controls the process perfectly but leaves identities, permissions, remote connections, and firmware unmanaged isn't finished. Confirm how each is handled:
- Identity and permission management
- Remote-access paths and network segmentation
- System logs and backup procedures
- Firmware updates and incident-response steps
Test it against failure. Each case below needs a documented answer, not an assumption:
- Sensor failure
- Network loss or power disruption
- Unauthorized access attempts
- Incorrect commands
- Aging hardware
- Expansion to new sites
Predictive maintenance flags developing problems before they disrupt operations. Use it to catch issues earlier, not after something breaks.
Conclusion
Secure control systems aren't a product you buy off a shelf. They are operating architectures, each with its own strengths, paired with layered safeguards that protect people, assets, data, and continuity.
Understanding how open-loop, closed-loop, distributed, and SCADA systems differ is the foundation. Match those differences to your risk, scale, integration needs, and support capacity, and you'll make a decision you don't have to revisit in two years.
If you want a second opinion on the physical security layer around your control rooms, or on the health of your security devices, Request a Consultation with IPS.
Frequently Asked Questions
What are the four main types of security controls?
Most frameworks group them as physical, technical, administrative, and operational or management controls. Preventive, detective, corrective, deterrent, and compensating describe control functions that apply across those categories.
What's the difference between ICS and SCADA?
ICS is the broad category for systems that control physical processes, including SCADA, DCS, and PLC-based setups. SCADA is one ICS architecture, built to supervise and control assets across wide geographic areas.
What are the four types of control systems?
The four main types are open-loop, closed-loop, distributed control systems (DCS), and SCADA. They differ in whether they use feedback, whether control is central or distributed, and whether supervision spans remote sites.
