RFID card access control uses radio-frequency credentials, readers, controllers, and electronic locks to grant or deny entry without a key. A card or fob talks wirelessly to a reader. A controller then decides whether that credential can open that door at that time.
This guide covers how RFID systems work, how credential types differ, the security trade-offs, how to choose and plan a system, and the mistakes we see most often when organizations install or upgrade one.
Key Takeaways
- RFID access control is a full system: credentials, readers, controllers, locks, software, and network all have to work together.
- Legacy prox and MIFARE Classic cards can be duplicated with third-party tools. Modern encrypted credentials are much harder to copy.
- Design around door type, user volume, risk, and existing infrastructure, not a generic template.
- A migration off old cards is only finished when the old card types are turned off at the reader.
What Is RFID Card Access Control and How Does It Work?
RFID access control replaces metal keys, magstripe swipes, and standalone keypads with a wireless credential the reader identifies in a moment. Unlike biometrics, it doesn't need a fingerprint or face scan. Unlike a keypad, it doesn't rely on a shared code everyone in the office eventually knows.
How an Access Event Opens a Door
Behind every "beep and release" moment is the same sequence:
- Present the credential. A user holds a card, fob, or tag near the reader at the door.
- Reader captures the data. The reader reads the credential and passes its data to a controller.
- Controller checks permissions. The system compares the credential against identity, door, schedule, and access-level rules.
- Lock responds and the event is logged. The door releases (or stays secured) and the transaction is recorded.
Authentication, Authorization, and Credential Lifecycle
People use authentication and authorization interchangeably, but they are different. In NIST's glossary, authentication means verifying the identity of a user, process, or device, often before allowing access. Authorization is the access privileges granted to that user or the act of granting them.
In plain terms: the card proves who you are, and the system decides where you can go.
Administrators handle this constantly:
- Issuing credentials for new hires and visitors
- Changing access levels when roles change
- Suspending cards for people on leave
- Revoking credentials right after a termination or a lost-card report
How those tasks get done depends on architecture. Cloud-managed platforms allow remote administration; locally managed systems keep data on-site.
Either way, emergency egress, fire alarm interfaces, and fail-safe vs. fail-secure locking need to be settled during design, not after installation. A common problem we see is a maglock or strike chosen before anyone checked how the door must behave when the fire alarm activates or power drops.
RFID System Components, Frequencies, and Credential Types
A working system needs several pieces aligned, not just a reader on the wall.
Core components include:
- RFID credentials (cards, fobs, stickers, vehicle tags)
- Readers at doors, gates, elevators, or restricted zones
- Controllers or panels that make access decisions
- Locking hardware: electric strikes, magnetic locks, electrified panic bars, gate operators
- Software, network connections, power supplies, and battery backup

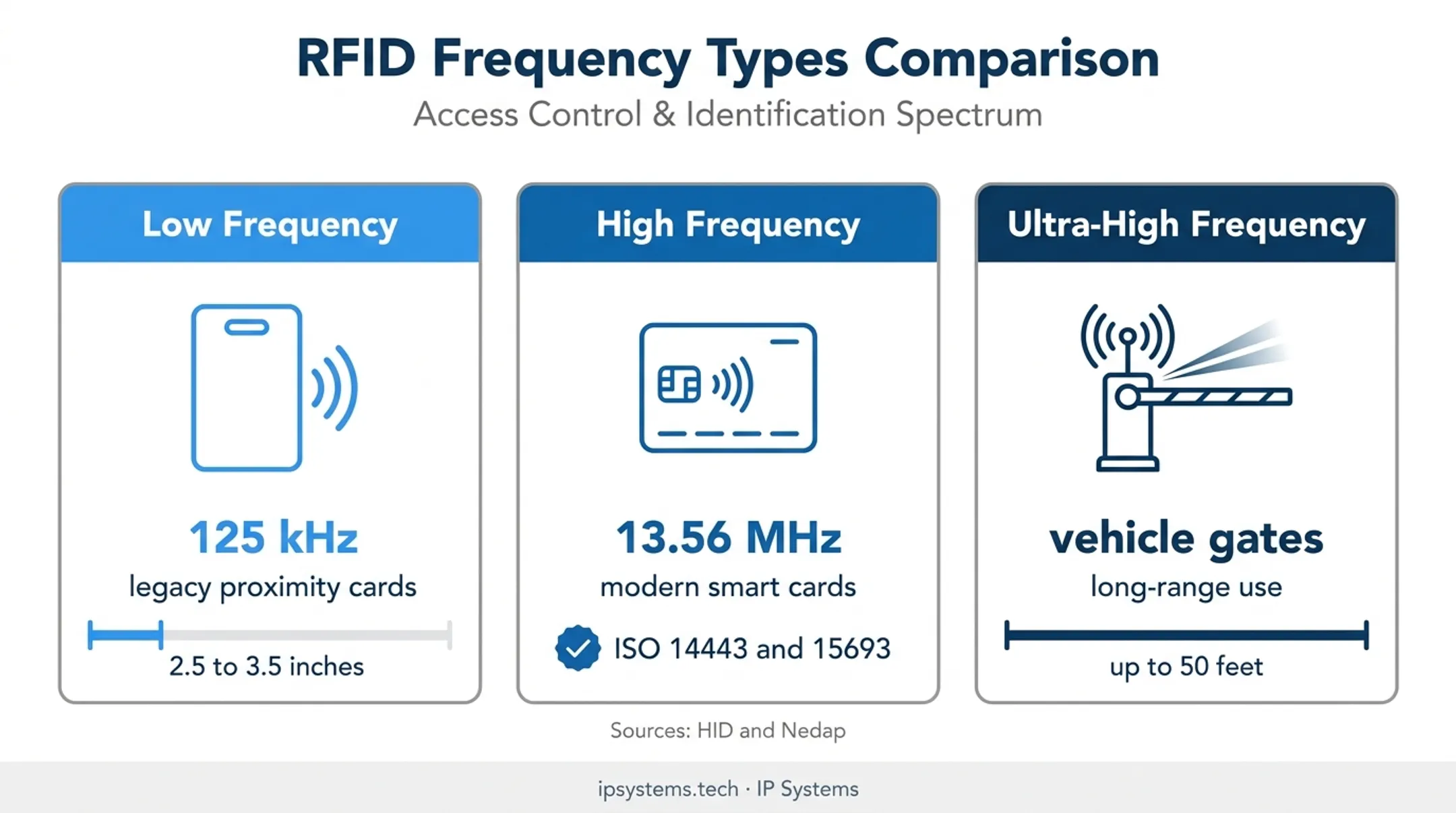

Comparing LF, HF, and UHF
Frequency affects both range and security:
| Frequency | Common Use | Security Profile |
|---|---|---|
| Low-frequency (125 kHz) | Legacy proximity cards | Few or no built-in protections; still common in older buildings |
| High-frequency (13.56 MHz) | Modern smart cards | Supports encryption and stronger authentication |
| Ultra-high-frequency (860–960 MHz) | Vehicle gates, parking, long-range use | Read ranges far beyond interior doors |
Proximity cards read at short range, typically a few inches up to around 20 inches depending on the reader. HF smart cards use the ISO/IEC 14443 and 15693 standards found in modern encrypted credentials.
UHF RFID for item management is covered by ISO/IEC 18000-63, which defines the air interface for 860 to 960 MHz. It reaches much farther. Nedap, for example, rates its uPASS Target vehicle reader at up to 15 meters (50 feet), a product-specific figure that depends on installation and environment.
Passive vs. Active Credentials
- Passive: Powered by the reader, lower cost, the standard for door entry
- Active: Onboard battery for longer range (vehicle tags, asset tracking); batteries need periodic replacement
Wiegand vs. OSDP
Wiegand sends unencrypted, one-way signals from reader to controller. It is still the most common interface in installed systems.
The Security Industry Association describes OSDP as an open standard with two-way communication, device supervision, and AES-128 encryption through Secure Channel. For new installs, supervised OSDP is the better default. The trade-off in a retrofit is that every reader and controller on the path has to support it. That can mean replacing readers you hoped to keep.
Matching Technology to the Environment
- Offices and multi-tenant buildings: HF smart cards with cloud-based credential management
- Healthcare: Encrypted credentials plus audit logging for compliance workflows
- Schools: Durable cards tied into visitor management
- Manufacturing and warehouses: Rugged readers; UHF at vehicle gates
- Data centers: Two-factor authentication with encrypted HF or biometric layers
Confirm frequency, encryption, controller protocol, and software compatibility before you buy. Mismatched pieces are expensive to pull out later.
Benefits, Limitations, and Security Considerations
RFID access control solves real operating problems.
Operational benefits:
- Fast, contactless entry for employees, students, tenants, and approved visitors
- Central permission management across doors and sites
- Event logs for investigations, audits, and accountability
- Replacing a lost card instead of re-keying locks
- Room to grow as doors, sites, and user groups are added
These systems support broader risk goals: deterring theft, restricting sensitive rooms, and documenting who entered where and when. Access control is one layer of a security program, not the whole program.
Limitations to plan around:
- Lost, shared, or misconfigured cards
- Cloning risk on older, weakly protected credentials
- Reader interference, power outages, and network disruptions
- Privacy and data-governance questions around access logs

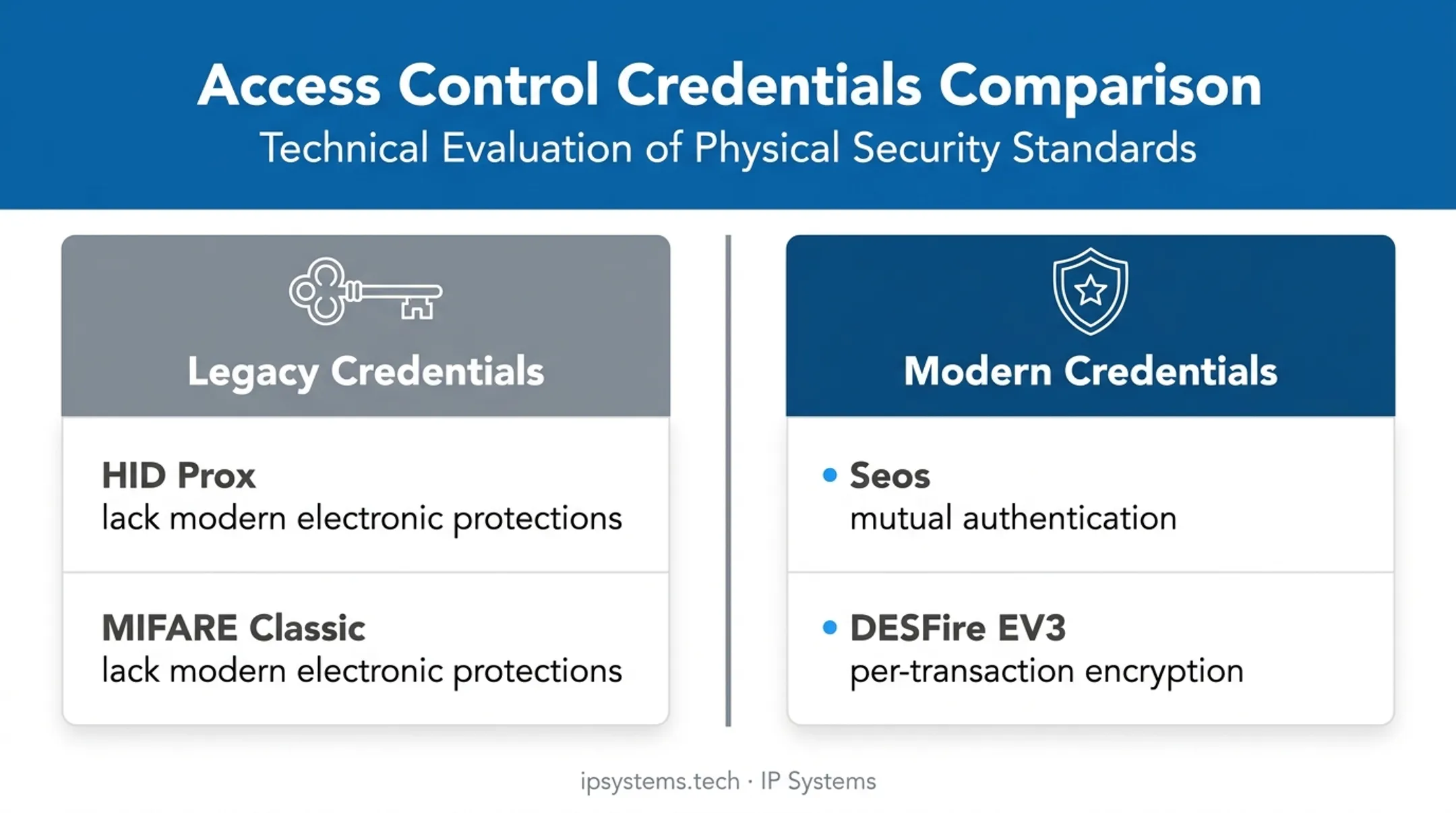

HID's guidance on legacy downgrade attacks is direct. Attackers read data from a secure credential and write it onto a less secure card type, such as MIFARE Classic, legacy iCLASS, or classic Prox. Readers left in "migration mode" will accept that copy. HID's advice is to disable Prox, legacy iCLASS, and MIFARE Classic at the reader once migration to Seos or MIFARE DESFire EV3 is complete. Those newer credentials use secure messaging and mutual authentication.
In our experience, this is the most common gap in upgraded systems. New cards get issued, but the old technology stays enabled "just in case" and never gets turned off. HID also notes that credential numbers work like passwords. Treat the printed numbers and the labels on card boxes with the same care.
A short security checklist:
- Use encrypted credentials with mutual authentication for higher-risk areas
- Use OSDP Secure Channel instead of unsupervised Wiegand where possible
- Apply least-privilege access and time-based schedules
- Document a process to deactivate lost cards immediately
- Review logs, firmware, and permissions on a set schedule
Regulated environments add requirements. Common U.S. examples include:
- Healthcare: HIPAA Security Rule facility access controls (45 CFR 164.310)
- Financial institutions: FFIEC IT Examination Handbook expectations for physical security of data centers and secured areas, including maintained physical security devices
- Federal facilities: FIPS 201 PIV credentials for employees and contractors
- Life safety and accessibility: NFPA 101 egress requirements, and ADA rules for door hardware that works with one hand and without tight grasping or twisting

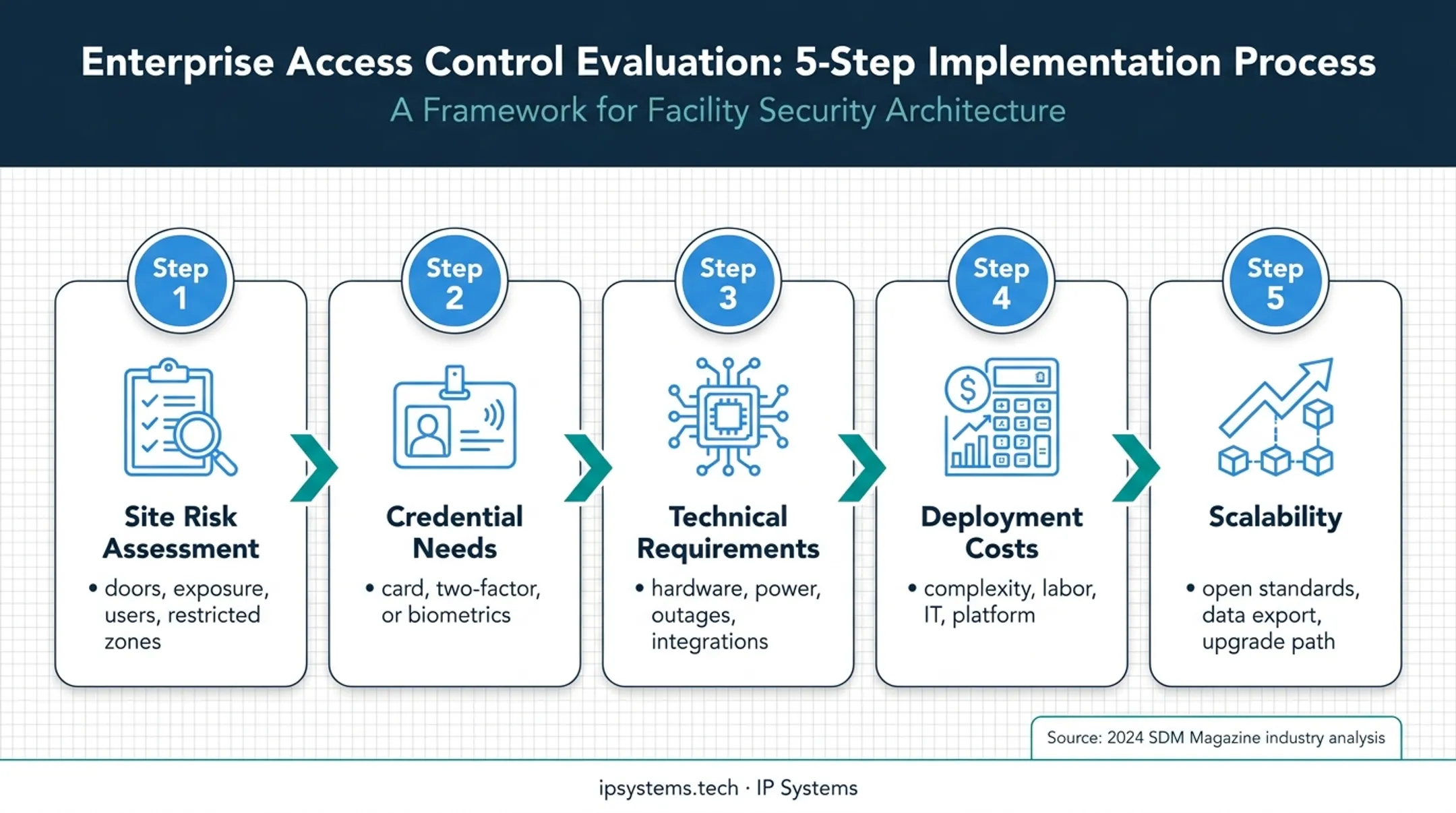

How to Choose and Plan an RFID Access Control System
Start with the site, not the product catalog.
Step 1: Conduct a site and risk assessment. Count doors, note interior vs. exterior exposure, estimate users, and flag restricted zones and emergency exits. Walk the doors. Frame type and existing hardware matter as much as the reader.
Step 2: Define credential and authentication needs. Some doors only need a card. Others, like server rooms or pharmacy storage, may need two-factor authentication or biometrics.
Step 3: Evaluate technical requirements.
- Confirm door hardware, cabling, and power
- Ask what happens during an internet or power outage
- Check compatibility with existing cameras, alarms, and HR systems
- Plan switch ports, PoE budget, and VLANs with IT
Step 4: Compare deployment costs. Cost follows system complexity, installation labor, the IT environment, and the platform type (on-premise or cloud) more than reader price. Budget for card issuance, training, support, and firmware updates, not just the install.
Step 5: Plan the migration and scalability. If you're replacing prox, decide between a one-time reissue and dual-technology cards during a transition. Card readers often last 10 to 12 years, so many prox readers still on the wall were bought when today's encrypted credentials barely existed, and the gap only grows the longer an upgrade waits. Also confirm the platform supports open standards, exportable event data, and a clear upgrade path from one building to several.
A qualified integrator turns that assessment into a workable design. IPS has helped businesses and public-sector organizations protect their people and property since 1998, and we design and install access control solutions on platforms that range from a single door to large integrated systems.
If you're weighing doors, users, risk, and integration goals, talk to an integrator before you buy. That conversation usually costs less than fixing a mismatched system later.
Integrating RFID Access Control With Broader Security Operations
Access control delivers the most value when it's connected to everything else in the building.
Common integrations include:
- Video surveillance, so a denied or forced-door event pulls up the matching footage
- Intrusion alarms and intercoms for a coordinated response
- Visitor management and elevator controls
- Fire systems and building management platforms
- Time-and-attendance software
Availability depends on the manufacturer and configuration. Confirm each integration during design instead of assuming it.
Access logs also show arrival, departure, and movement, and some organizations use them for time and attendance. In Mastering Modern Security, IPS's Rob Jackson adds a caution: just because you can use the data doesn't mean you should. Run new uses past HR and your retention and privacy policy first.
For multi-site organizations, central administration matters. The access control systems IPS installs support remote access control across multiple facilities, so an administrator can update permissions or issue a temporary credential without driving to each location.
Remote control only helps if the hardware stays healthy. Plan ongoing service during design, not after go-live. Readers and locks need periodic testing. Batteries need checking. Firmware needs updating. The IPS Network Operations Center runs constant health checks on connected security devices and supports predictive maintenance, so problems are caught before a door fails or an alert is missed.
A basic implementation checklist:
- Assign an owner for policies, enrollment, and the credential database after go-live
- Write reader type and card encryption into your Division 28 (Electronic Safety and Security) standard so every site buys the same credentials
- Document visitor procedures and emergency response steps
- Train staff on the system before go-live
- Complete acceptance testing and confirm post-installation support
Ready to plan an upgrade or a new install? Talk to a Security Specialist at IPS about an obligation-free assessment.
Frequently Asked Questions
How does the RFID gate work?
A vehicle tag communicates with a long-range reader at the gate, and the controller checks permissions before signaling the gate operator to open. Door cards work differently because they use shorter-range HF or LF technology.
How does an RFID door lock work?
A card or fob sends its data to a reader, which passes it to a controller. The controller checks access rules, tells the electronic lock to release, and logs the event.
Are RFID door locks safe?
It depends on credential encryption, reader and controller protections, installation quality, and access policies. Egress design and regular maintenance matter as much as the technology.
Which is safer, NFC or RFID?
NFC is a short-range form of HF RFID, operating at 13.56 MHz with a range of roughly 10 centimeters or less. Which is safer depends on credential encryption, the authentication method, and how the deployment is managed.
Can I use my phone as an RFID access card?
Some systems support mobile credentials through Google Wallet, Apple Wallet, or Bluetooth apps, but they need compatible readers and software. Most organizations keep a physical card as a fallback.
What is the best RFID door lock system?
The right system depends on site risk, door count, users, credential type, integrations, and budget. Match those to your facility's security and operating requirements before choosing a platform.
