Introduction
Handing out keys or sharing a four-digit code used to be enough. It isn't anymore.
Once a key gets copied or a PIN gets passed around the break room, you no longer control who walks through your doors. You need credentials that an administrator can assign, track, change and shut off the day someone leaves the building or the payroll.
That is where smart cards come in. A smart card is a chip-based credential that talks to a reader and an access control system, which checks permissions before the door releases.
This guide covers how smart card systems work, the card and reader types available, the security features worth checking, and how smart cards compare with mobile, PIN and biometric options. It also covers the planning mistakes we see most often when organizations move from keys or older prox cards.
Key Takeaways
- Smart cards pair a physical credential with chip-based data, so the access control platform can make real-time entry decisions.
- Contactless cards dominate facility entry. Contact cards still serve applications that need physical insertion.
- A working system includes cards, readers, controllers, locks, software and network. The card alone does nothing.
- Encryption, role-based permissions and fast revocation decide whether a deployment holds up. So does who owns the card database after go-live.
- Mobile, PIN, biometric and multi-factor options each carry trade-offs to weigh against your facility's risk.
What Is a Smart Card Access Control System?
A smart card access control system uses a chip-embedded credential, rather than a magnetic stripe, barcode or mechanical key, to verify identity and permissions before granting entry.
A basic mag-stripe badge just reads back a static number. The chip in a smart card can store identifying data, run authentication routines and support encrypted communication with the reader.

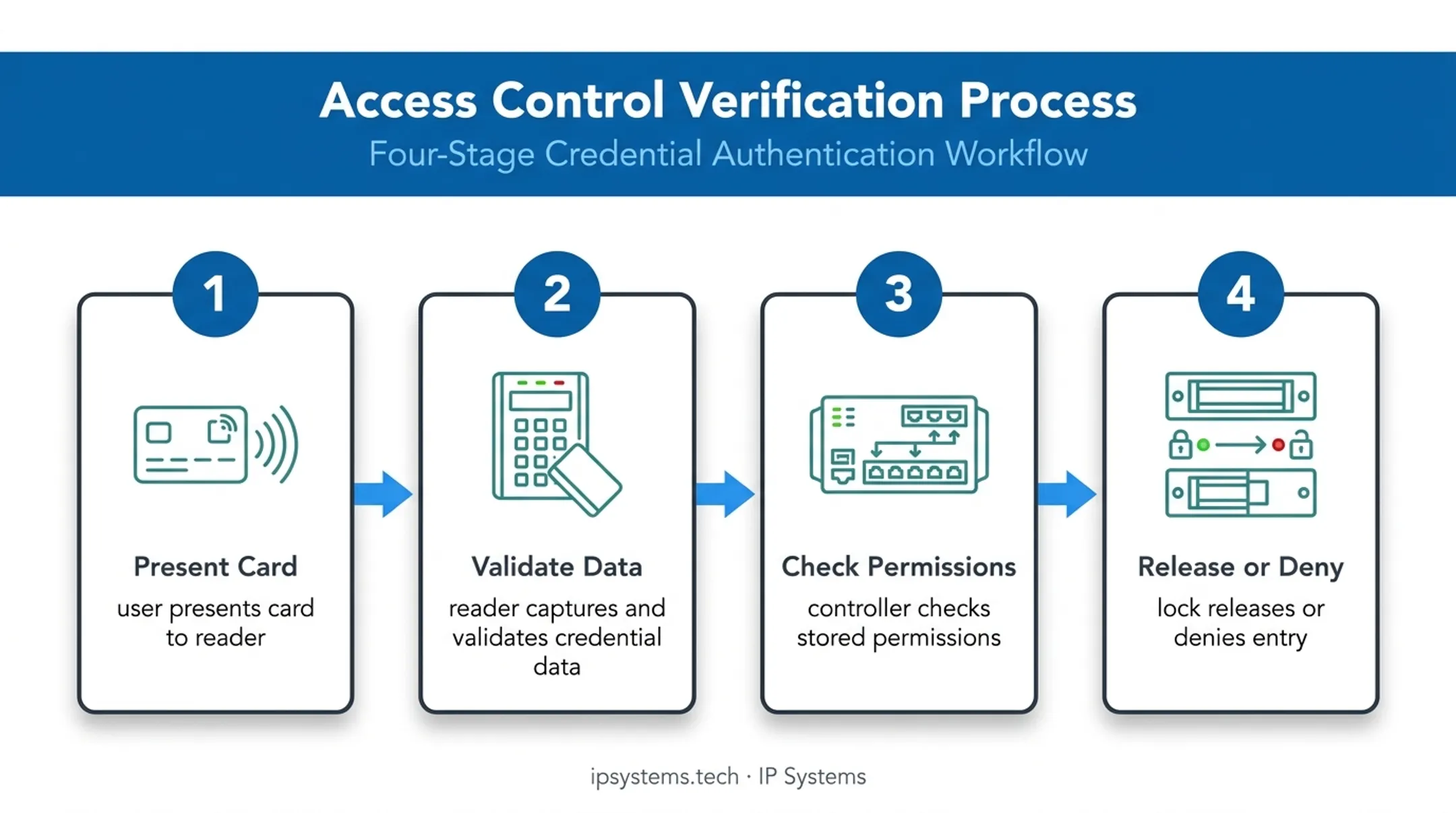

The Access Decision, Step by Step
Here is what happens between a badge tap and the door opening:
- A user presents the card to a reader at the entry point.
- The reader captures the credential data and validates it.
- The controller checks that data against stored permissions.
- The lock hardware either releases the door or denies entry.
The card is one component. A working system also needs:
- A reader at each entry point
- An access control panel or controller
- Electrified locking hardware (strike, maglock or electrified lockset)
- Management software and a permissions database
- Network connectivity and backup power
Remove any one of those and the credential is a piece of plastic.
Assigning Permissions by Person, Not Just by Card
Administrators tie each card to a specific person, then add rules for doors, schedules, departments, contractors and zones.
Take a hospital campus. One badge might give a nurse access to:
- Public lobbies and elevators at all hours
- The nursing unit during assigned shifts
- Medication rooms, logged and time-restricted
- Staff parking, but not the loading dock or data closets
That is the practical value: one credential, many rules, all managed centrally instead of re-keying locks every time staffing changes.
How Smart Card Access Control Systems Work
Contact vs. Contactless Communication
Contact cards need physical insertion or direct contact with the reader, like an EMV chip card at a payment terminal. They follow the ISO/IEC 7816 standard for cards accessed through physical contacts.
Contactless cards, far more common for doors, communicate over a short range when presented near a reader. Two contactless families matter:
- Proximity (ISO/IEC 14443): very close range, up to about 10 cm
- Vicinity (ISO/IEC 15693): designed for a longer read distance
Not every contactless card uses the same frequency or protocol. Legacy proximity systems still run at 125 kHz, while most modern smart cards use 13.56 MHz. Original 125 kHz prox cards have no smart chip. They simply transmit a facility code and card number, with no chip-based authentication behind it. If your building still runs prox, that is usually the first thing an assessment flags.
NFC is related but distinct. It works at very close range and is often used for mobile credentials, so it is not automatically interchangeable with every 13.56 MHz access card. Check reader and card compatibility by interface, frequency and protocol. Do not assume a match.
From Tap to Unlock: The Full Sequence
- The reader identifies the credential presented at the door.
- Authentication protocols check that the card is genuine and unaltered.
- The controller looks up permissions tied to that credential and door.
- The lock releases only if those permissions match the request.
- The system logs the outcome, granted or denied.
The link between reader and controller matters as much as the card. Many older installs use Wiegand wiring, which sends the card data unencrypted. OSDP, the Security Industry Association's reader protocol (published internationally as IEC 60839-11-5), is bidirectional, supervises the reader and supports an AES-128 secure channel. Encrypted cards on an unencrypted Wiegand run leave a gap at the wall. If you are replacing readers anyway, plan for OSDP.

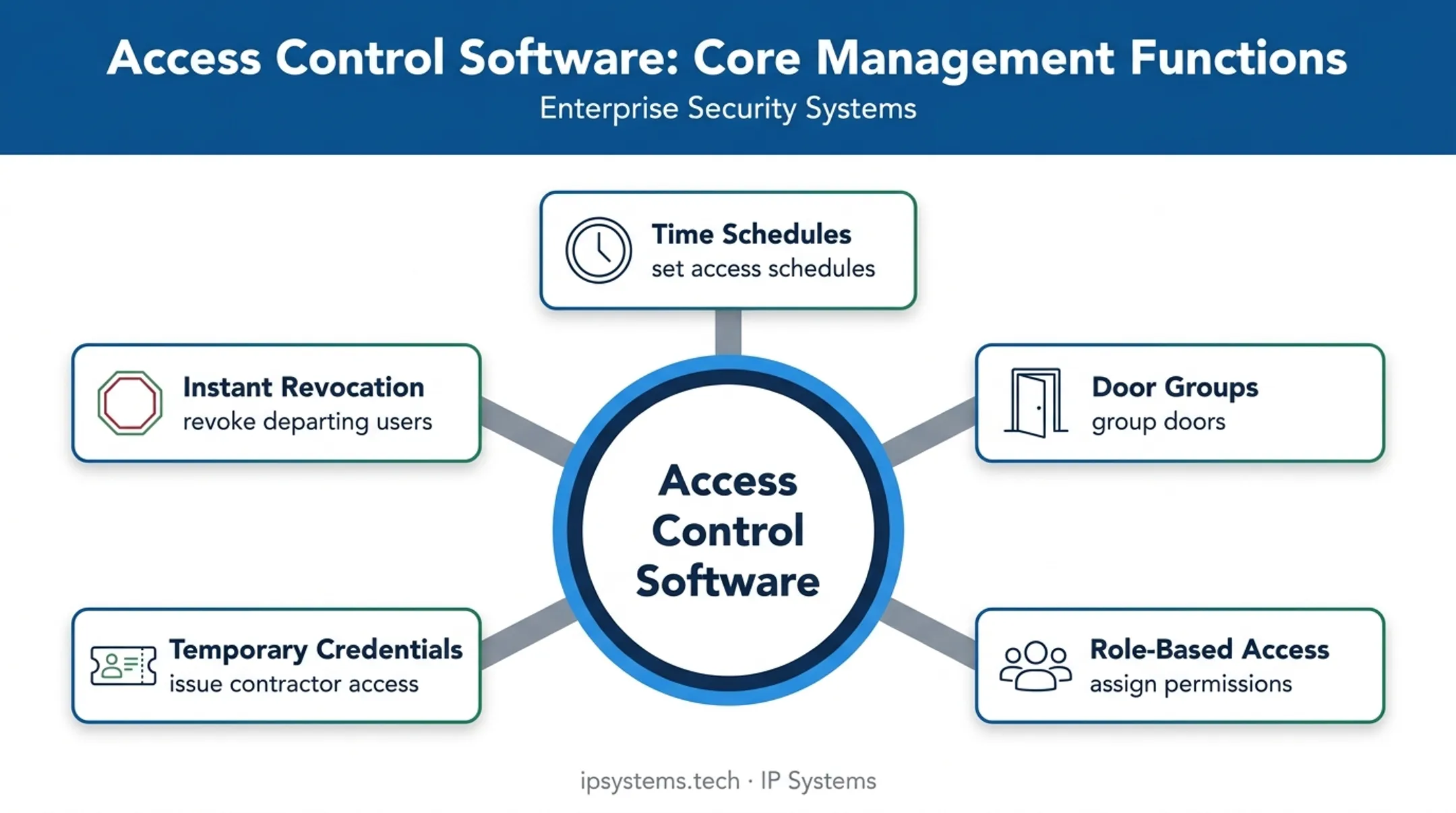

Managing Permissions Without Touching a Single Lock
Administrators handle nearly everything in software: time schedules, door groups, role-based access, temporary credentials for contractors, and revoking access the moment employment ends. No re-keying, no collecting keys from a departing employee.
What Happens When the Network Drops
Most systems keep working when a reader loses contact with the central server. Local controllers typically hold permission data and keep enforcing rules offline, then sync event logs and permission changes once the connection returns. Confirm this with your platform, and ask how long a controller can run offline and how many cardholders it can store locally.
Beyond the Door: Integration and Reporting
Every access event creates a record: denied attempts, successful entries, unusual patterns and activity around sensitive areas. That data is far more useful tied to other systems, such as:
- Video surveillance and alarms
- Visitor management and identity directories (HR or Active Directory)
- Elevators and parking control
- Time-and-attendance platforms
Compatibility varies by manufacturer. Confirm integration claims, ideally with a demo on your versions, before you commit.
Smart Card Types, Components, and Security Features
Memory Cards vs. Processor Cards
Not all smart cards are built the same way.
- Memory-based cards read and write to fixed addresses and cannot manage files or process data on their own. They work for simpler identification.
- Processor-based cards contain an onboard microcontroller that can process data, manage multiple independent files and support stronger authentication.
Processor cards suit facilities that need stronger authentication or several applications on one card (doors, printing, cafeteria). Memory cards can be reasonable where requirements are simple and budgets are tight.
The Components That Make Up a Deployment
| Component | Function |
|---|---|
| Chip and antenna/contact points | Store and transmit credential data |
| Reader | Captures data from the card at the door |
| Controller | Checks permissions and issues the release command |
| Locking device | Physically secures the door |
| Management software | Administers users, schedules, and permissions |
| Administrative database | Stores identity and access records |
Security Features Worth Evaluating
Before selecting a card technology, review:
- Encrypted communication between card and reader
- Credential authentication, not just a static ID read
- Tamper resistance in card and reader hardware
- Key management: who holds the encryption keys, and whether the site keys are unique to you
- Anti-cloning protections
- Support for multi-factor authentication where higher assurance is needed
Federal facilities follow a formal standard. FIPS 201-3 sets out the Personal Identity Verification (PIV) framework for federal employees and contractors and describes the PIV card as an ISO 7816 ID-1 card with one or more embedded chips that provide memory and computational capability.
The standard includes biometric, PIN-based and PKI-based authentication mechanisms. These can be combined to reach up to three authentication factors, depending on how sensitive the area is. Private facilities can apply the same logic door by door. In Mastering Modern Security, IPS's Rob Jackson describes a biological-pathogen facility where input from operations and compliance showed that one area needed a card plus a second factor, for a very short list of people. The rest of the building did not.

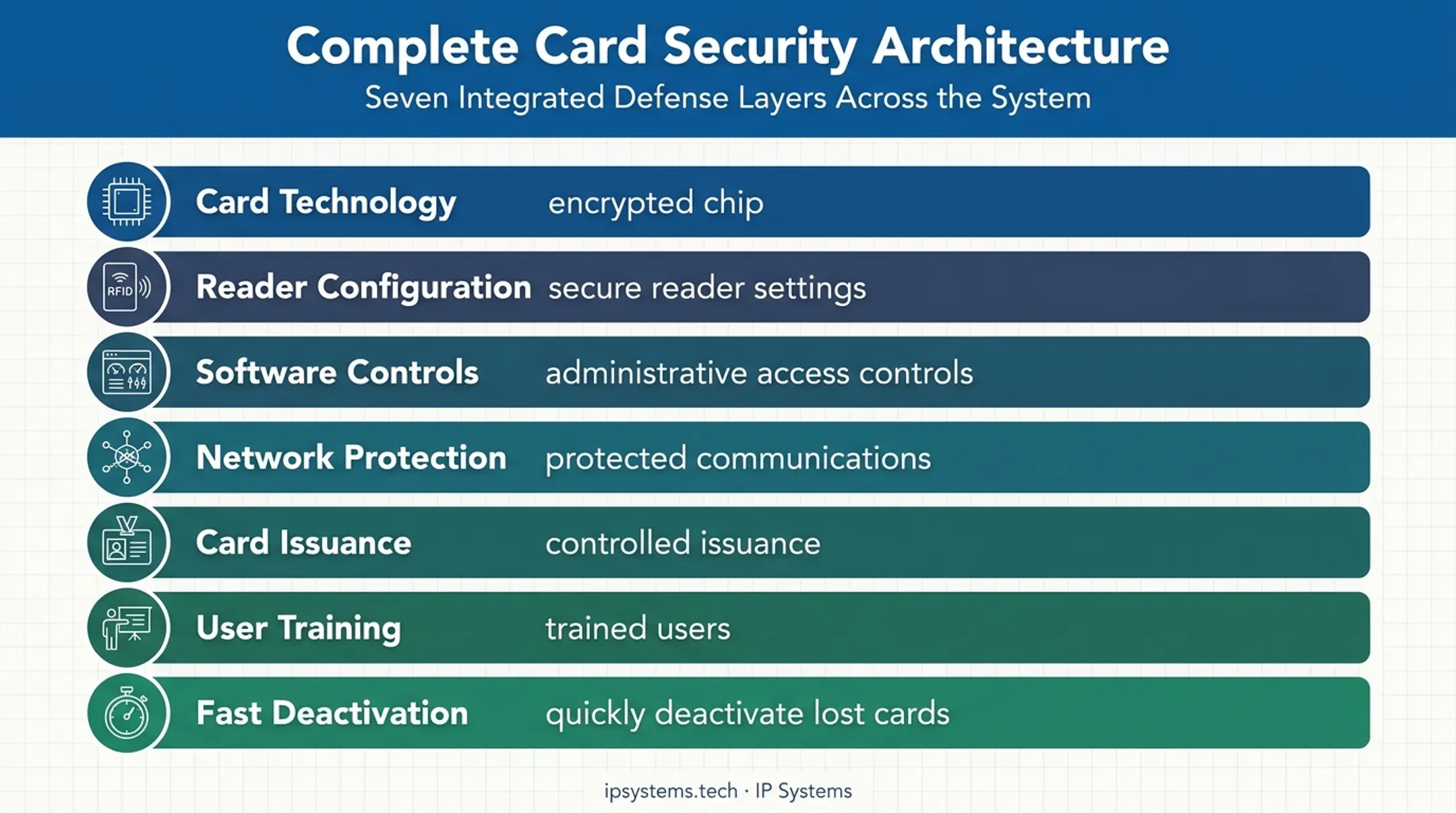

Card-level protection still fails when the surrounding process is weak. Security depends on the whole system: reader configuration, software permissions, network protection, how cards are issued, how users are trained and how quickly a lost card is shut off. A well-encrypted chip does not help if a terminated employee's badge stays active for three weeks.
Benefits and Use Cases for Commercial and Public-Sector Facilities
Smart cards replace unmanaged keys and shared codes with individually assigned credentials. That one change affects how you handle security every day.
Operational Wins
- One credential can authorize multiple doors, buildings or sites
- Contactless entry moves people faster through busy entrances
- Central administration removes re-keying costs when staff turn over
- Access logs support investigations, occupancy awareness and compliance documentation
Industry-Specific Applications
- Healthcare: restricting medication rooms and labs while documenting access for regulatory purposes
- Education: managing residence halls, labs and campus buildings for large student and staff populations
- Government: securing public buildings with layered, role-based restrictions
- Manufacturing: protecting production floors, equipment and restricted storage
- Banking and finance: controlling vault and back-office access with audit trails for examiners
- Data centers: enforcing tight physical controls around critical infrastructure
George Mason University is a published example. It rolled out HID Global Seos smart cards, multiCLASS SE readers and PERSONA Campus software, starting with facilities, residence halls, and library and cafeteria services.
According to a 2018 report, the university installed approximately 3,500 new locks and readers and issued more than 12,000 new ID cards to incoming freshmen. The report says staff gained real-time control when a lockdown or other change was needed, and could revoke or replace lost or stolen cards without changing lock cylinders.
IPS designs and supports access control for organizations across healthcare, education, government and manufacturing. Clients we have served include Kettering Health and Lakeland Community College.
How to Choose and Deploy a Smart Card Access Control System
Start With an Assessment
Before choosing hardware, identify:
- Protected areas and how many people move through each entry
- Operating hours and user categories
- Egress requirements, and which doors must release on fire alarm or power loss
- Environmental conditions (outdoor readers face different demands than interior ones)
- Existing security and building systems, and whether any of it can be reused
Do the door hardware survey before you price anything. The card and reader are rarely the expensive part. Frames, strikes, electrified hinges and power transfers are.
Evaluate Credentials, Readers, and the Management Platform
Match readers to how people actually move through the site:
- Read range and speed for your traffic
- Durability against weather or vandalism
- Compatibility with doors, gates and elevators
- Multi-technology support if you need to read old and new cards during a migration
On the software side, prioritize:
- Central administration and role-based permissions
- Audit trails and directory integration
- Multi-site scalability
On multi-site programs, write the approved card format, reader models and encryption into a standard and share it with each site contact. Otherwise a site manager buys off-the-shelf readers that don't match, and the card program splits in two.
Plan the Full Credential Lifecycle
- Enroll and issue credentials tied to verified identity.
- Adjust permissions as roles, departments or projects change.
- Issue temporary access for contractors or visitors with a set expiration.
- Replace lost cards quickly, revoking the old credential first.
- Offboard departing employees or contractors the same day they leave.
- Dispose of or reissue old credentials securely.
Name a person who owns this. The most common failure we see is not the technology. It is a card database nobody reviews after go-live.
Build a Realistic Implementation Plan
Deployment is more than hardware. Plan for:
- Door hardware, controllers and cabling
- Network, PoE budget and power redundancy
- Testing, user training and signage
- A phased rollout on larger sites instead of a single weekend cutover
A migration from prox to smart cards usually runs in phases: multi-technology readers go in first, new cards are issued by department, and the old cards are shut off on a set date. Trying to swap every card and reader at once in an occupied building is where schedules slip.
This is where an experienced integrator earns its keep. IPS has been designing and installing security systems, including access control, since 1998. Our technology alliances include HID, Bosch, LenelS2 and Axis, and the platforms we install scale from a single door to large multi-site systems.
For organizations that want access control tied to video surveillance, fire systems and cloud-based monitoring under one support relationship, that coordination matters more than any single card technology.
Don't Stop at Installation
Systems degrade quietly if nobody watches them. Health checks, software updates, permission reviews, reader testing and backup checks catch problems before they become incidents. Keep IT in the loop, too: a new firewall rule or threat-detection change can silently cut readers off from the controller. IPS's Network Operations Center monitors the health of security devices and supports predictive maintenance, so issues get flagged early and resolved through the maintenance contract. No monitoring program guarantees zero downtime, but it means you hear about a dead reader from us instead of from a locked-out employee.
Limitations and Alternatives to Smart Cards
Smart cards solve a lot of problems. They do not solve all of them.
Cards get lost, stolen, shared or damaged. Without a second factor, nothing proves the person holding the badge is the person it was issued to.

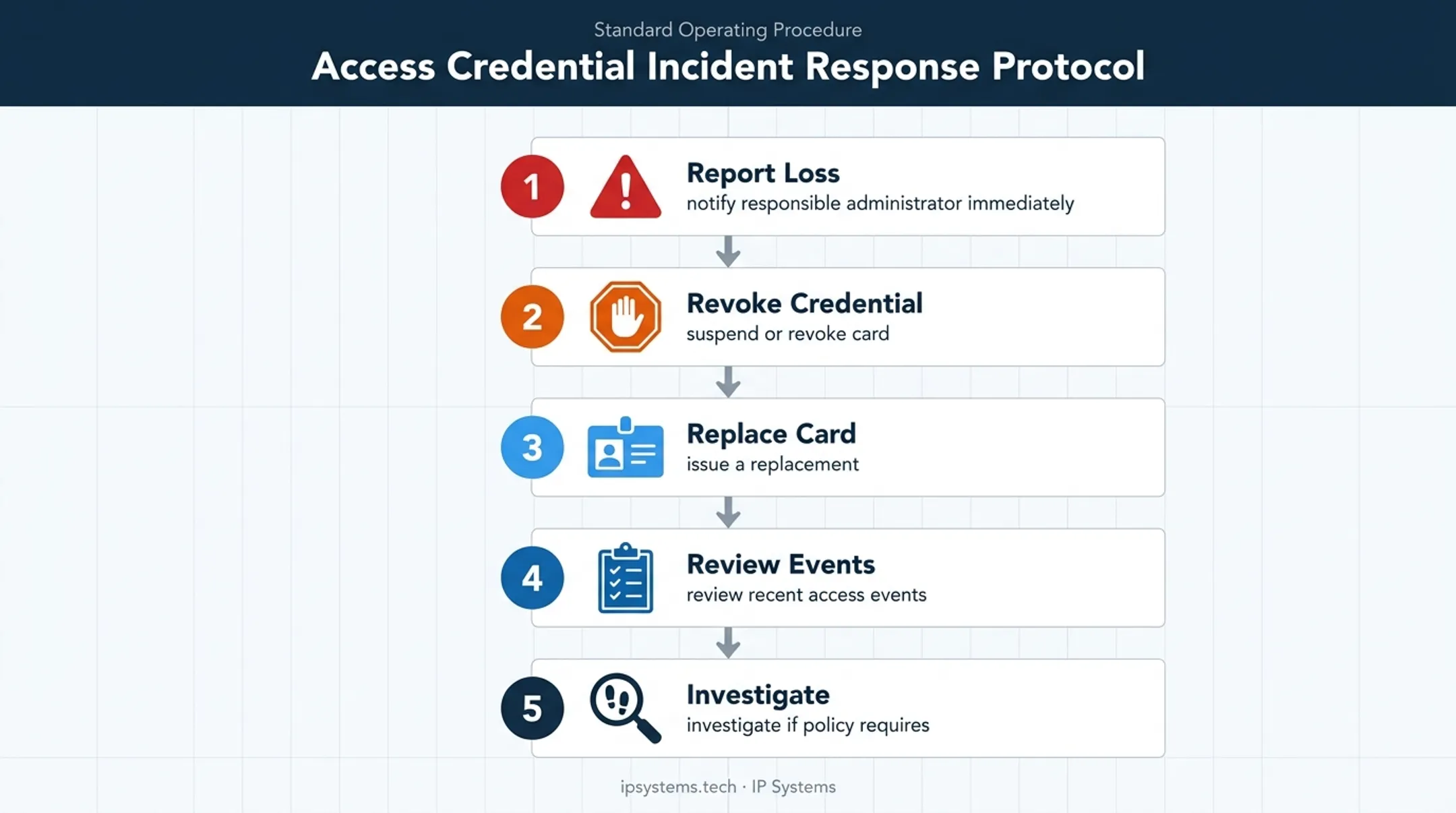

The Standard Response to a Lost Card
- Report the loss to the responsible administrator immediately.
- Suspend or revoke the credential in the system.
- Issue a replacement.
- Review recent access events tied to that card.
- Investigate further if policy requires it.
Comparing the Alternatives
| Credential Type | Strengths | Trade-offs |
|---|---|---|
| Mobile credentials | Reduces physical badge handling; lower printing and replacement costs | Depends on compatible phones, battery life, and reader interoperability |
| PIN codes | Simple, low-cost | Easily shared, observed, or forgotten |
| Biometrics | Strong identity verification, nothing to carry | Privacy, enrollment, and demographic-accuracy concerns need governance |
| Multi-factor | Highest assurance for sensitive areas | Adds friction and cost |
Mobile credentials can extend beyond doors to elevators, turnstiles and parking, but they still need compatible readers and a supporting ecosystem of manufacturers and software. The industry is working on interoperability through standards such as Aliro, which the Connectivity Standards Alliance released as version 1.0 in February 2026. Mobile is not yet a drop-in replacement for an existing card system.
If you already run durable physical credentials, clear role-based permissions, multiple sites and compatible infrastructure, smart cards often remain the more practical choice. Many organizations end up with both: cards for most staff, mobile for those who want it, and a second factor at the few doors that need it.
Compare security requirements, user population, facility conditions and total lifecycle cost before you replace or supplement what already works. If you want help sorting that out, Schedule an Access Control Assessment with IPS.
Frequently Asked Questions
What is a smart card access control system?
A smart card access control system combines chip-based credentials, readers, controllers, locking hardware and management software. Together they verify a person's permissions before granting entry to a facility or restricted area.
What is the purpose of a smart card?
A smart card identifies or authenticates a user and carries or communicates the credential information used to control access to authorized spaces, replacing easily shared keys or codes.
What are the two types of smart cards?
Contact and contactless. Contact cards need insertion or direct contact with a reader, while contactless cards communicate wirelessly when presented nearby.
Are smart cards secure for access control?
It depends on the card technology and the system around it. Encryption, authentication protocols, an encrypted reader connection (such as OSDP secure channel), administrative controls, regular access reviews and fast revocation of lost cards all matter.
What happens if an employee loses a smart access card?
Report the loss immediately so security can deactivate the card, issue a replacement and review access records if the situation calls for it.
