One project touches camera placement, cable routing, power, network configuration, cybersecurity hardening and final testing. Get one piece wrong and the whole system underperforms.
Some of this work suits a trained low-voltage technician or a capable in-house IT team. Other parts, such as mains electrical connections, difficult structural penetrations or fire-rated wall crossings, call for licensed specialists.
Rushed installs create problems that show up later: blind spots, unstable video, failed recordings, water in the housings, and code violations that mean expensive rework. This guide walks through planning, installing, testing and documenting a wired camera system built to last, along with the mistakes we see most often.
Key Takeaways
- Treat installation as coverage planning, cabling, recorder design, power, configuration and commissioning, not just mounting cameras.
- PoE/IP runs data and power on one Ethernet cable; HD-over-coax needs coax video plus separate or paired power.
- Bench-test devices, label every cable and port, then verify live view, recording, playback, export and night performance.
- Bring in qualified pros for mains power, hard access, multi-building runs, fire-rated assemblies or regulated sites.
Installation Sequence and What Drives Complexity
A wired camera project follows a set sequence:
- Assess the site
- Choose the system architecture
- Plan coverage and cable routes
- Bench-test equipment
- Run and terminate cabling
- Mount cameras
- Configure the recorder and network
- Validate everything
- Document the finished system
The time and skill required scale with:
- Number of cameras and building size
- Cable distances and the number of floors or buildings
- Ceiling and wall construction (drywall vs. concrete, plenum spaces, fire-rated assemblies)
- Outdoor exposure and environmental conditions
- Integration with access control, alarms or existing video management software
- After-hours or phased work requirements
A five-camera retail install and a 200-camera correctional facility share the same basic steps. They do not share the same risk.
Occupied buildings add their own layer. Ceiling work over open offices, patient areas or production lines usually has to happen in set windows, and after-hours work costs more. Settle the schedule before the project is priced, not after.
Prerequisites and Safety Considerations
Before any cable gets pulled, confirm the site is actually ready.
Site Readiness Checklist
Walk the site and define the security objective for each camera location: perimeter detection, entrance identification, dock monitoring, or evidence collection in restricted areas. Write it down per camera. "Identify a face at the front door" drives different lens, height and resolution choices than "see that someone is in the parking lot." Then confirm:
- Mounting surfaces can support the camera and housing
- The equipment room has space, ventilation, power and network connectivity
- The recorder location allows secure, access-controlled administration
- Outdoor runs, plenum or riser paths, fire-rated walls, underground pathways and hazardous areas are flagged so the right cable and materials can be specified
Compatibility Checks Before You Buy Anything
Mismatched equipment is one of the most common, and most avoidable, causes of delay.
- Match camera type to recorder type. IP/PoE cameras need a compatible NVR or PoE switch; HD-over-coax cameras need a matching DVR, signal format, resolution and connectors.
- Verify capacity. Check camera count against recorder channels, storage, network bandwidth, per-port PoE, total PoE budget and cable distance limits.
- Confirm interoperability with existing access control, alarm systems or video management software if you need integration.
- Check the manufacturer against your contracts. NDAA Section 889 bars U.S. federal agencies and contractors from using certain Chinese-made video surveillance equipment, including Hikvision and Dahua. If you hold or bid on federal work, confirm before you buy.
Reuse vs. Replace
If the building already has coax from an older analog system, you do not always have to pull new cable. Ethernet-over-coax adapters can carry IP video and PoE over existing coax; Axis notes its adapter supports runs of up to 500 meters, compared with the 100-meter limit for standard Ethernet. The trade-off is another device per run to power, maintain and troubleshoot. Reuse makes sense when the coax is in good shape and the pathways are hard to reopen. If you are opening ceilings anyway, new Cat 6 is usually the better long-term choice.
Non-Negotiables
Do not proceed until these safety and compliance items are done:
- Locate and mark concealed utilities
- De-energize equipment before terminations
- Confirm safe ladder or lift access
- Review electrical, building, fire and permitting requirements with your jurisdiction (the AHJ may inspect firestopping and pathways)
Ladder and lift safety is non-negotiable. OSHA requires ladders to be inspected before initial use in each work shift, with defective ladders tagged and removed from service (OSHA 1910.23). Aerial lifts fall under separate OSHA rules (1910.67 for general industry, 1926.453 for construction): only trained persons may operate them, and lift controls must be tested each day before use.
Site-Specific Cost Planning
Cost varies with camera count, system type, cable routes, building construction, access difficulty, recorder and storage needs, and integration scope. Rather than trusting a generic per-camera number, ask for pricing based on a site walk. Licensing, storage and long-term maintenance often exceed the first equipment estimate.
Tools and Parts Required
Your parts list depends on the architecture you choose.
Essential components:
- Cameras and a compatible NVR or DVR
- Surveillance-rated storage
- PoE switch or power supply (for IP systems)
- Ethernet or coaxial cable, connectors and mounts
- Junction boxes, weatherproof fittings and cable supports
- Labels and a display for setup and verification
Typical tools:
- Drill with appropriate bits, and screwdrivers
- Fish tape or pull rods
- Cable tester and Ethernet or coax termination tools
- Label maker and measuring tools
- Ladder or lift, plus PPE
Larger commercial deployments may also need:
- Cable certification testers and fiber tools
- Conduit, firestopping materials and grounding equipment
Do not substitute cheaper parts when that compromises code compliance, connector integrity or test accuracy.
Optional but valuable:
- Local monitor for on-site verification
- Surge protection and UPS backup for the recorder and PoE switches
- Extra junction boxes for future expansion
How to Install a Wired Security Camera System Step-by-Step
Shortcuts create hidden failures. Follow the approved design and document any change instead of improvising cable routes on the day.
Plan Camera Placement and Cable Routes
Map each camera before you pull cable. For every location, document:
- Purpose and target area
- Viewing angle, lighting and mounting height
- Cable route back to the recorder or switch (and the IDF it lands in)
Prioritize entrances, exits, vehicle approaches, high-value assets and blind spots. Avoid placements where privacy expectations or local rules prohibit recording. Loop in HR early: cameras near break rooms or restrooms, and who is allowed to view footage, are the questions that stall rollouts after the fact.
Choose a secure, ventilated location for the NVR or DVR and any backup power.
Bench-Test Before Mounting Anything
Connect each camera, recorder, storage device and power source on a bench before installation day. Check power-on, video, correct timestamps, storage recognition, and that recording and playback both work. Update firmware here too; it is much easier on a bench than on a lift. This step catches dead-on-arrival equipment before it is 20 feet up.
Install and Protect the Cabling
Run cable along the planned route, avoiding crushing, sharp bends and unsupported spans. Use cable rated for the environment: outdoor, wet-location, riser or plenum as applicable.
Keep communications cable at least 2 inches (50 mm) from electric light and power conductors unless a code exception applies, such as when the power conductors are in raceway (NEC 805.133(A)(2) in the 2023 edition; older editions numbered this 800.133, see EC&M's Article 800 summary).
Protect penetrations, use approved firestopping in fire-rated assemblies, and label both ends of every run before connecting equipment.
Mount and Connect Each Camera
Secure the mount to a structural surface and set the field of view using a live display. Avoid glare, reflective surfaces and easily tampered locations.
- PoE/IP systems: Connect to the correct PoE NVR or switch port; confirm power and network capacity.
- HD-over-coax systems: Connect video and power to the assigned DVR input; check signal format and polarity.
Configure the Recorder, Network, and User Access
Give cameras clear names, set resolution and recording schedules, and configure retention and time synchronization. Set retention from your policy (insurance, legal or contract requirements), not from the recorder's default, then confirm the storage actually holds that many days at your settings. Decide the rest of the recording standard at the same time: continuous or motion recording, 7, 14, 30 or 90 days, and whether the recorder gets RAID, redundant OS drives or dual power supplies. Each option adds cost, so choose it per site. Use unique administrator credentials and limited user permissions.
CISA's IoT guidance is blunt: default passwords are easily found online, so they don't provide any protection, and patches should be applied as soon as possible (CISA, Securing the Internet of Things). Decide at handover who owns firmware updates. On many sites, nobody does.
Put cameras on their own VLAN, separate from general office traffic, and work that out with IT before install day. Confirm local live view, recording and export before enabling remote access. Remote access needs network connectivity, but it does not make a wired camera wireless.
Commissioning and Handoff Documentation

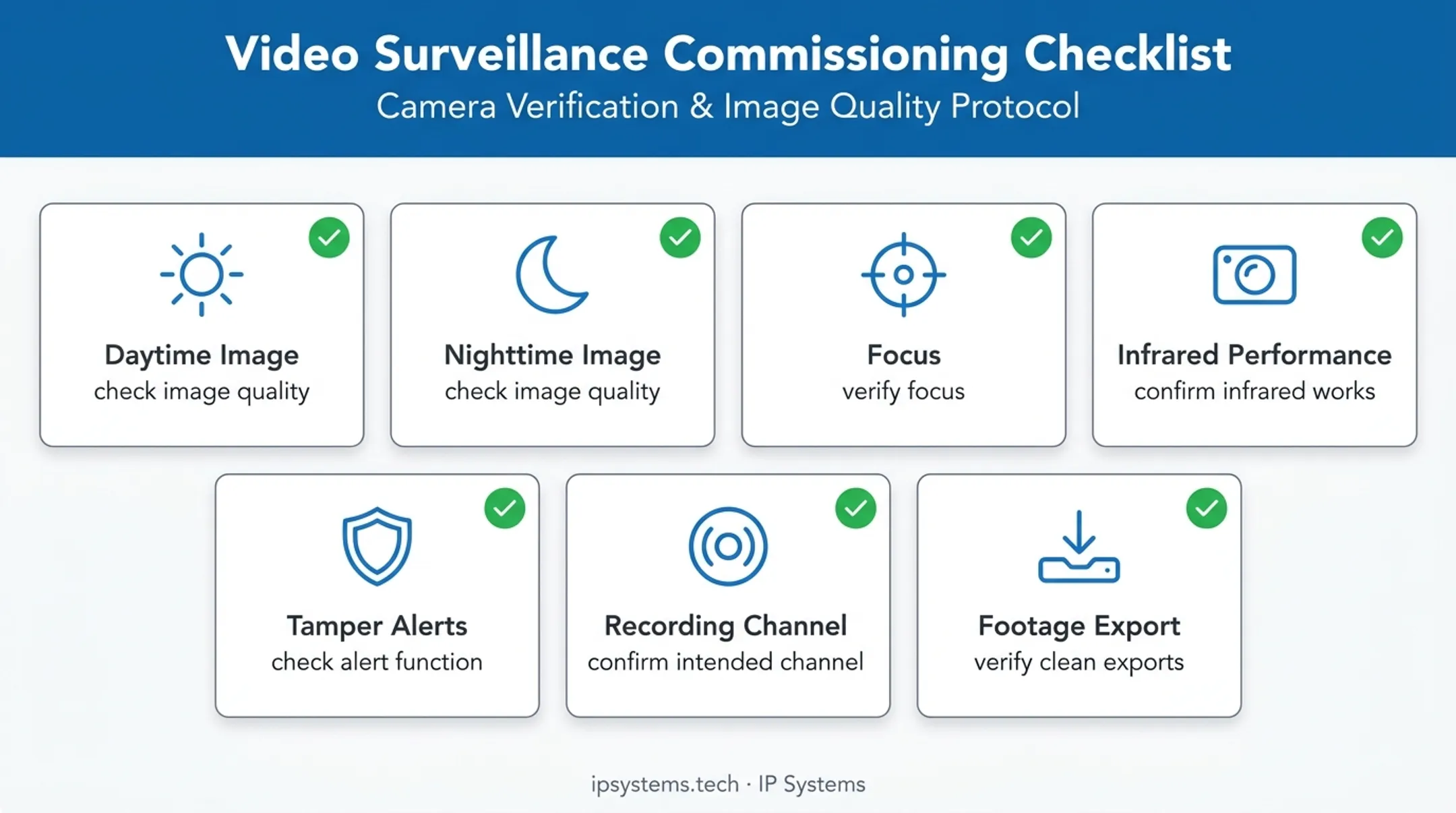

Check daytime and nighttime image quality, focus, infrared performance and tamper alerts. Confirm every camera records to its intended channel and that footage exports cleanly.
On IPS deployments, project managers, installation technicians and software specialists work together, and we make sure the client has accepted the installation and training before closeout.
Record cable routes, camera names, switch ports, equipment models, settings and any open items in the handoff documentation. It becomes the reference for every future service call.
Post-Installation Checks and Validation
A live image on every camera does not mean the job is done. Commissioning has to prove the system produces usable evidence and can be supported long-term.
Visual and structural checks:
- Mounts are secure and lenses are clean
- Connectors are protected and penetrations sealed
- Cabling is supported and correctly labeled
- No exposed or easily damaged wiring remains
Functional checks:
- Continuous or scheduled recording works as configured
- Playback, export and storage health are confirmed
- Time synchronization and remote access (if enabled) work correctly
- Night performance, network connectivity and PoE power are stable
| Sign of correct installation | Sign of incorrect installation |
|---|---|
| Stable video, no unexpected resets | Intermittent video or offline events |
| Accurate timestamps | Missing or corrupted footage |
| Clean, protected connections | Water intrusion or voltage drops |
| Reliable recording and playback | Failed exports or blind spots |
Skipping this step does not make problems go away. It delays when you find them, and the worst time to find a failed camera is during an actual incident.
Common Installation Problems and Fixes
Most post-install failures come down to power, image quality or recording. Use this quick reference before replacing hardware.
| Issue | Likely Cause | Fix |
|---|---|---|
| Camera won't power on or keeps dropping offline | Insufficient PoE budget, incompatible power supply, excessive cable distance, damaged termination | Test with a known-good cable and port; check total PoE budget before replacing hardware |
| Video is blurry, dark, or affected by glare | Dirty lens, poor focus, bad mounting angle, reflective surfaces or IR reflection | Reposition and refocus the camera; retest under both day and night conditions |
| Recording, playback, or export fails | Storage issues, wrong channel assignment, network problems, firmware mismatch | Check storage health, recorder settings, and firewall/remote-access configuration; document final settings |

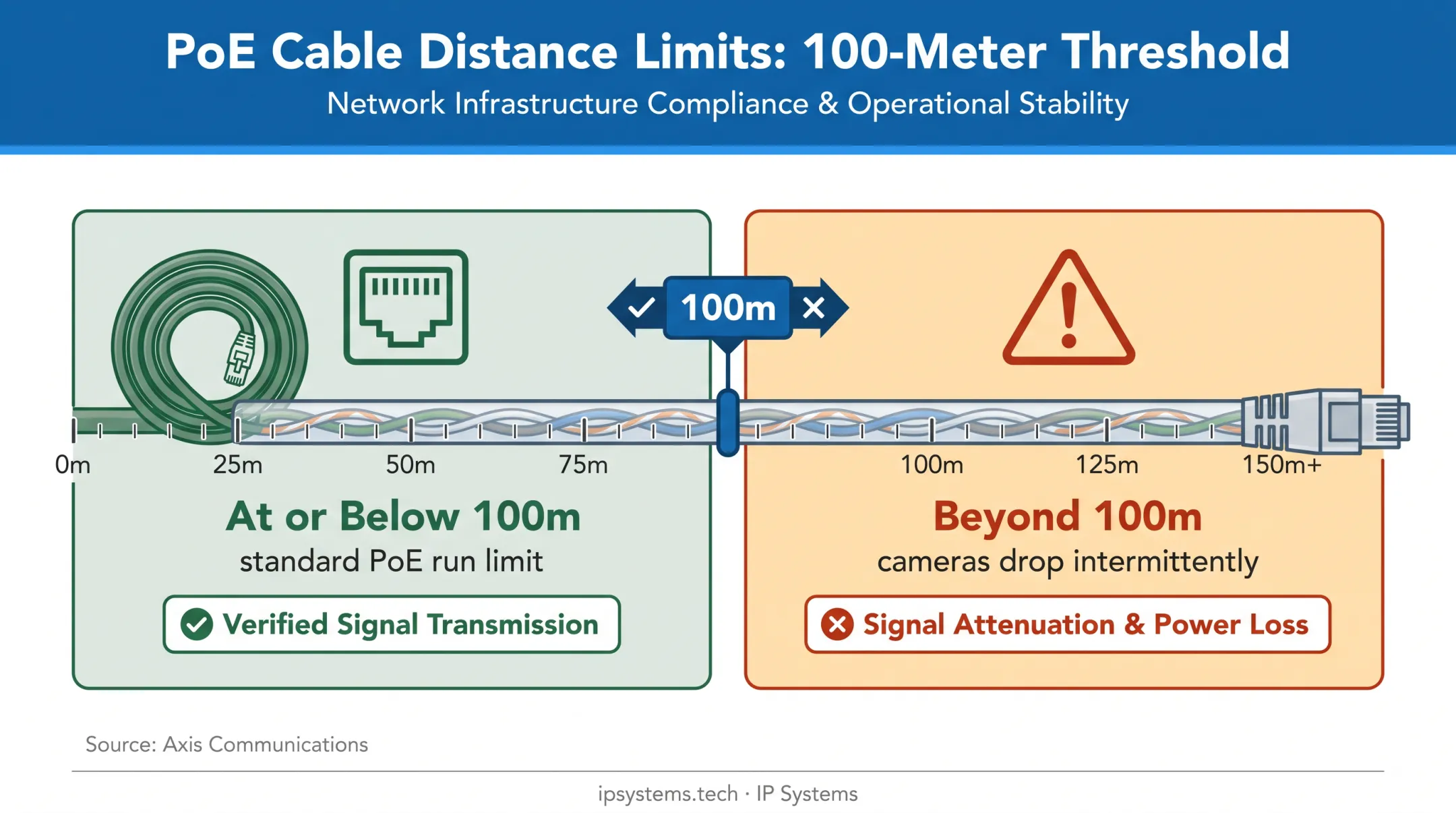

Cable distance is a frequent failure point on IP systems. Standard Ethernet runs are limited to 100 meters (about 328 feet) in total between switch and camera, and Axis suggests a rule of thumb of about 90 meters for the horizontal run plus about 10 meters for patch cables (Axis Communications, installation guidance). Go past that and cameras can drop intermittently even with good terminations. Plan an extra IDF, a PoE extender or fiber for long runs. In Mastering Modern Security, IPS's Rob Jackson describes a parking-lot project where IPS reviewed the contractor's submittal. It proposed large highway-style license plate cameras on small lot poles, and the pole runs were over 700 feet, well past the Cat 6 limit. IPS recommended a better-fitting camera, saving almost $1,200 per camera (about $12,000 across 10), and the cabling plan was changed before install.
A camera feed that keeps dropping and a display too blurry to show detail are two of the most common reasons we get called to existing systems. If that describes one of yours, Talk to a Security Specialist and we will help you get it resolved.
Pro Tips for Installing Wired Security Cameras Effectively
Sequence the work to reduce rework:
- Finalize the coverage plan and confirm equipment compatibility before any cable is pulled
- Bench-test cameras, recorders and injectors so failures show up on the bench, not on the ladder
- Pull and label every run while pathways are open
- Mount cameras only after cable paths and power are verified
- Configure, harden and validate recording, retention and remote access end to end
Design for service and growth. Build the install so the next technician, or the next expansion, does not start from scratch:
- Leave documented service slack at cable ends
- Use consistent, permanent labels on both ends of every run
- Reserve spare recorder channels, switch ports and PoE budget
- Put the recorder and network gear in a secure, ventilated room away from casual access
Treat documentation and cybersecurity as deliverables. At handoff, record test results, equipment details, user permissions and firmware versions.
IPS Support Programs build on that baseline with two preventative maintenance visits per contract year, including performance analysis, and Network Operations Center monitoring that tracks device health and flags issues before they cause downtime.
Know when to call a specialist. Healthcare facilities, banks, government buildings, data centers and multi-site campuses often bring compliance rules and integration needs beyond a straightforward pull-and-mount job.
IPS serves medium and large organizations and government agencies across healthcare, government, education, banking and other sectors. Clients we have served include Kettering Health, the Ohio Department of Veterans Services and Cleveland Public Library.
Questions to Ask Any Installer
- Will you provide a camera schedule showing what each camera is meant to identify?
- How will you confirm the PoE budget and cable lengths before install?
- Who handles firestopping and permits, and will the AHJ inspect?
- What does acceptance testing include, and what documentation do we receive?
- Who owns firmware updates and passwords after handover?
Conclusion
Installation quality decides everything after it: coverage, evidence quality, uptime, cybersecurity and how long the system stays useful. A rushed job can look fine at handoff and still fail when you need the footage.
Before anyone relies on the system, get the fundamentals right:
- Build a detailed design
- Use properly rated materials
- Follow a disciplined installation sequence
- Complete documented commissioning
Simple, single-building installs are often manageable for a capable in-house team. Complex, regulated or multi-site projects are different. That is where an experienced systems integrator like IPS, backed by an ongoing support plan, earns its keep. Schedule a Security Assessment to talk through your building.
Frequently Asked Questions
How much does it cost to install wired security cameras?
Cost depends on camera count, cable runs, building construction, storage and any electrical or integration work. Ask for pricing based on a site walk rather than a generic per-camera figure. Licensing and storage fees often add up quickly.
Do you need an electrician to install wired security cameras?
Low-voltage camera cabling is different from work on mains power, new circuits or outlets. Licensing for low-voltage installers varies by state and locality, so confirm local rules and use qualified personnel whenever electrical work is involved.
Is it better to hardwire security cameras?
Wired systems offer more stable connectivity, continuous power and easier expansion for commercial and mission-critical sites. Wireless installs faster but depends on signal strength and battery management, so choose based on your building, budget and expansion plans.
