Introduction
Keeping the right people in and the wrong people out sounds simple. In practice, most facility managers are juggling dozens of doors, shifting schedules, and visitors who need temporary access without opening up the rest of the building.
A badge access control system answers more than "who can open this door." It assigns role-based permissions, keeps an audit trail, ties into hiring and termination, and connects to cameras, alarms, and fire systems.
This guide covers how these systems work, the credential types available, the real benefits and limits, and how to choose and run a system for a U.S. commercial or public-sector facility. We've also included the mistakes we see most often after go-live, because that's where badge systems usually break down.
Key Takeaways
- Treat badge access as a full stack: credentials, readers, controllers, locks, and software that decides every entry
- Require role-based permissions, fast credential revocation, and dependable audit logging
- Match the credential to the risk: proximity cards, encrypted smart cards, mobile phones, or biometrics
- Plan the whole lifecycle: assessment, installation, integration, training, and maintenance, plus a named owner for the database
What Is an Employee Badge Access Control System and How Does It Work?
The National Institute of Standards and Technology (NIST) defines a physical access control system as an electronic system that controls the ability of people or vehicles to enter a protected area by means of authentication and authorization at access control points. For an employee badge system, that means a credential, a reader, a controller, and a lock working together at every door.

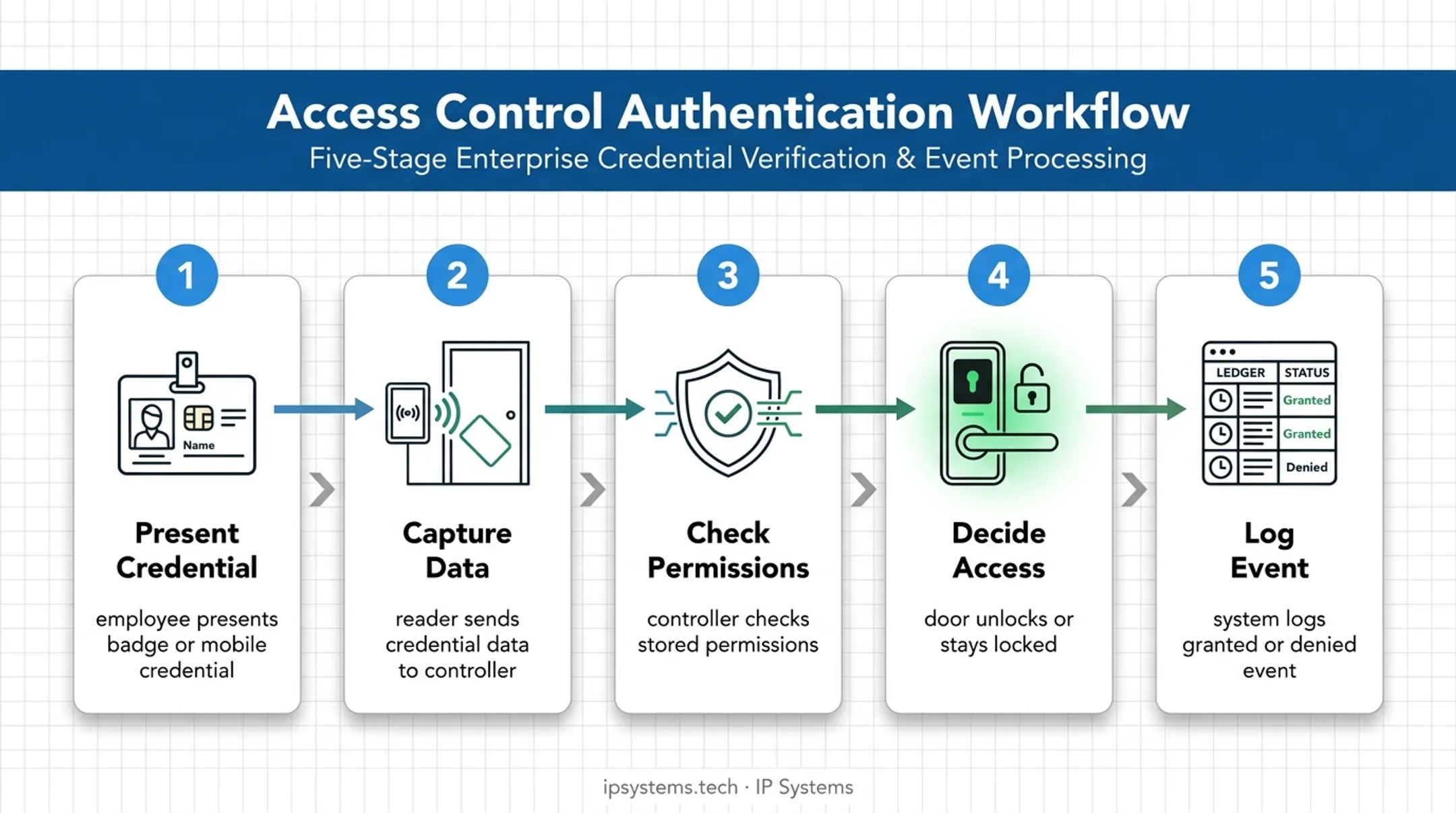

The basic sequence looks like this:
- Employee presents a badge or mobile credential at the reader
- Reader captures the credential data and sends it to the controller
- Controller checks the credential against stored permissions
- Door releases or stays locked based on that decision
- System logs the event, granted or denied
Access decisions usually weigh more than whether the badge is valid: role, time of day, anti-passback rules, and door-specific policies. A warehouse badge may work at the loading dock from 6 a.m. to 6 p.m. and never work at the executive suite.
Cloud, On-Premises, and Hybrid Architectures
Where the decisions happen matters. Genetec, a platform vendor, describes the difference this way: on-premises systems keep infrastructure and management on site, while cloud-hosted systems support remote administration and multi-site visibility. Hybrid setups connect existing on-site hardware to cloud applications.
Each model has trade-offs:
- On-premises: full local control; your IT team owns servers, updates, and patching
- Cloud-based: simpler multi-site admin and reporting; needs dependable internet and a clear split of cybersecurity responsibilities with the provider
- Hybrid: local controllers still make door decisions while configuration and reporting move to the cloud
A practical test: ask who will patch the server three years from now. If nobody on staff wants that job, on-premises is going to age badly.
Who Manages the System
Badge systems rarely belong to one department. Day-to-day ownership usually splits:
- Security: watches alarms, incidents, and access activity
- Facilities: maintains doors, readers, and lock hardware
- IT: supports the network, directory integration, and cybersecurity controls
- HR: triggers hire, transfer, leave, and termination events
Designated administrators handle routine permission changes. The HR-to-security handoff is where lifecycle control matters most:
- Issue credentials before a new hire's first day
- Update zone access after a role or department change
- Suspend access during leave when policy requires it
- Revoke badges at separation, not days later
The most common failure we see isn't technical. It's that nobody owns the credential database after the installer leaves. Six months later, there are active badges for people who left, "temporary" contractor badges with no end date, and permission groups nobody can explain. Assign one owner and put the HR handoff in writing. In Mastering Modern Security, IPS's Rob Jackson lists internal threats among the eight hidden risks of an outdated security program, and a former employee whose badge still works is the classic case.
Badge Types, System Components, and Access Control Methods
A badge access system is a chain of parts, not a card. Buyers tend to focus on the credential first, and for good reason: credentials are not equally secure.
Core components typically include:
- Credentials (cards, fobs, or mobile credentials)
- Readers, electronic locks, and request-to-exit devices
- Door controllers and management software
- Network connectivity and audit logs
- Backup power, with each door's fail-safe or fail-secure behavior decided on purpose

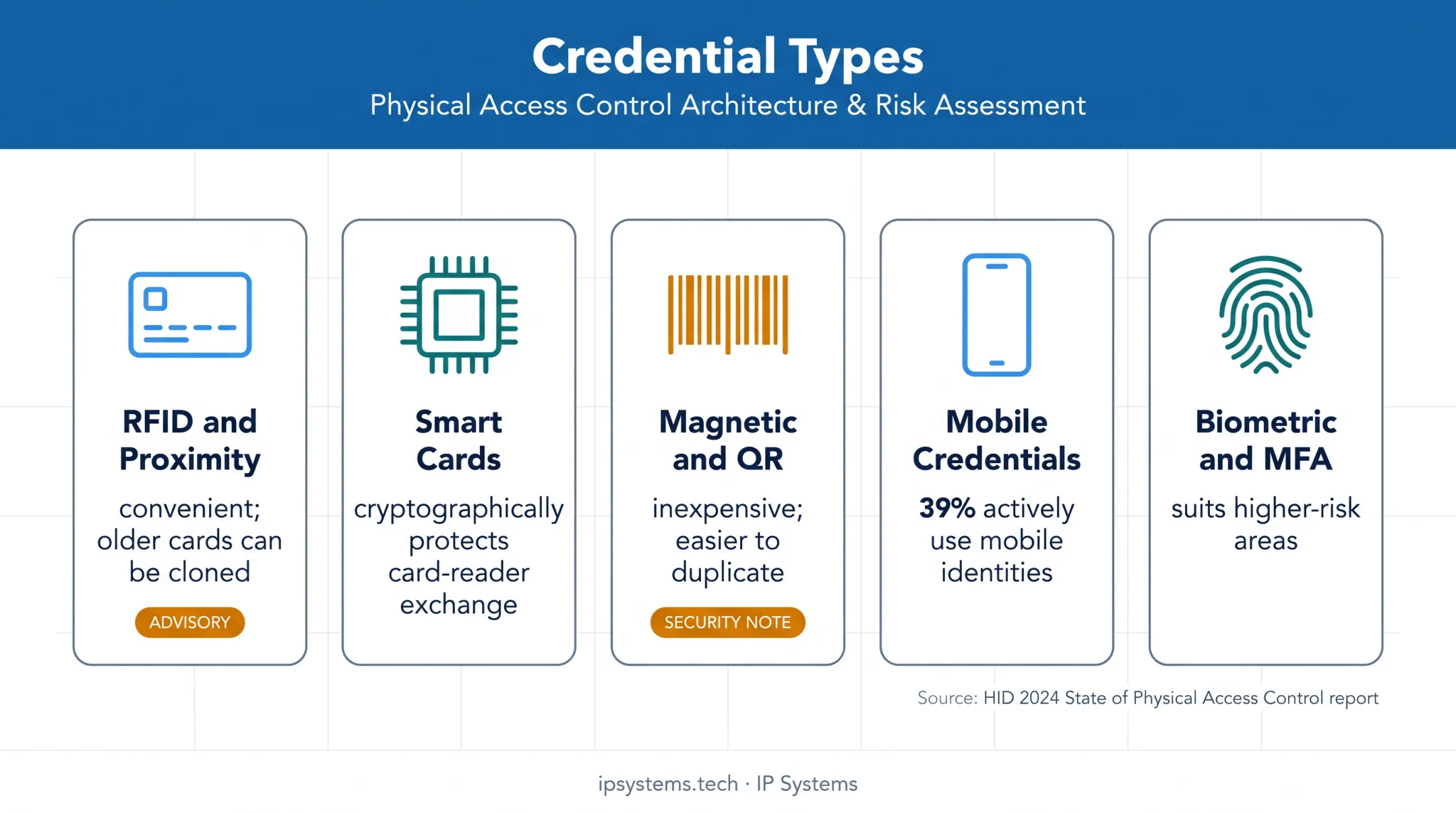

Comparing Credential Types
RFID and proximity cards are still common because they are cheap and convenient, but older 125 kHz proximity cards have a real weakness. Security researchers note that legacy proximity credentials transmit their ID in plaintext and can be cloned with only a moment of access to the card. If you still use them, start with your most sensitive doors when planning a move to encrypted credentials.
Smart cards and encrypted credentials, like HID's Seos technology, address that gap by protecting the exchange between card and reader. HID says its dual-frequency Seos + Prox card communicates no traceable identifiers during card sessions, to keep card data from being disclosed or cloned. Because it carries both technologies, it is a common way to migrate off legacy prox one building at a time.
Magnetic-stripe and QR-code credentials still appear in legacy systems and in uses like visitor passes. They are inexpensive, but they wear out faster and are easier to copy than encrypted options.
Mobile credentials keep gaining ground. HID's 2024 State of Physical Access Control report, based on a survey of more than 1,200 security professionals, found that 39% of organizations were actively using mobile identities. HID's 2026 report found that security, not convenience, was now the leading reason organizations adopt them.
Mobile credentials cut badge printing and make remote revocation simple. The trade-off is dependence on a working, charged phone. Keep a fallback card policy for staff who can't or won't use their personal phone.
Biometric and multi-factor methods suit higher-risk areas like server rooms or pharmacies. In some states, biometrics come with legal obligations. Illinois' Biometric Information Privacy Act requires written notice, a publicly available retention policy, and a written release before collection. Texas and Washington have their own biometric laws. Get the policy reviewed before enrollment starts.
Identification vs. Authentication
A badge proves that a credential is valid. It doesn't prove the person holding it is the employee it was issued to. That gap drives how you set access methods by zone.
Common tiers:
- Badge only for lower-risk offices and general perimeter doors
- Badge plus PIN for finance rooms, records storage, and similar mid-risk spaces
- Badge plus biometric for server rooms, pharmacies, and other high-risk areas
Don't over-tier. Two-factor readers on busy doors slow traffic and invite propping. Use them where the risk justifies the delay.
Physical Badges vs. Mobile Credentials
| Factor | Physical Badge | Mobile Credential |
|---|---|---|
| Revocation | Deactivated in software; card still needs to be collected | Deactivated remotely; nothing to collect |
| Device dependency | None | Requires a charged smartphone |
| Replacement cost | Card reissue and printing | Per-credential license fees vary by platform |
| User adoption | Familiar, no app needed | May need setup help and training |
Temporary and Visitor Credentials
Visitor, contractor, and temporary credentials should never look or work like permanent employee badges. Build in expiration dates, limited schedules, host sign-off, and restricted zones from the start.
Benefits and Use Cases for Employee Badge Systems
Badge systems reduce dependence on keys and avoid rekeying every time someone leaves with one. But badges work best as one layer in a broader security posture, alongside cameras, alarms, and trained staff, not as a standalone fix.
Operational and Compliance Value
Centralized permission changes let an administrator update access for one person or a whole department in minutes. Searchable logs support investigations and give auditors documentation. Some organizations also use badge arrival and departure records for time and attendance. If you do, write it into your privacy and retention policy first, and get HR and legal to agree on who can see the data.
This matters in regulated industries:
- Healthcare: the HIPAA Security Rule's facility access controls standard requires covered entities to limit physical access to electronic information systems and the facilities that house them, while making sure authorized access is allowed. See our guide to protected health information and access control.
- Banking: FFIEC examination guidance calls for institutions to review access lists regularly, maintain logs of access to restricted spaces, and remove electronic credentials in a timely manner after transfer or termination
- Education: FERPA expects schools to use reasonable methods so that only officials with a legitimate educational interest can reach student records, and badge zoning on records rooms supports that
Real-World Integration Results

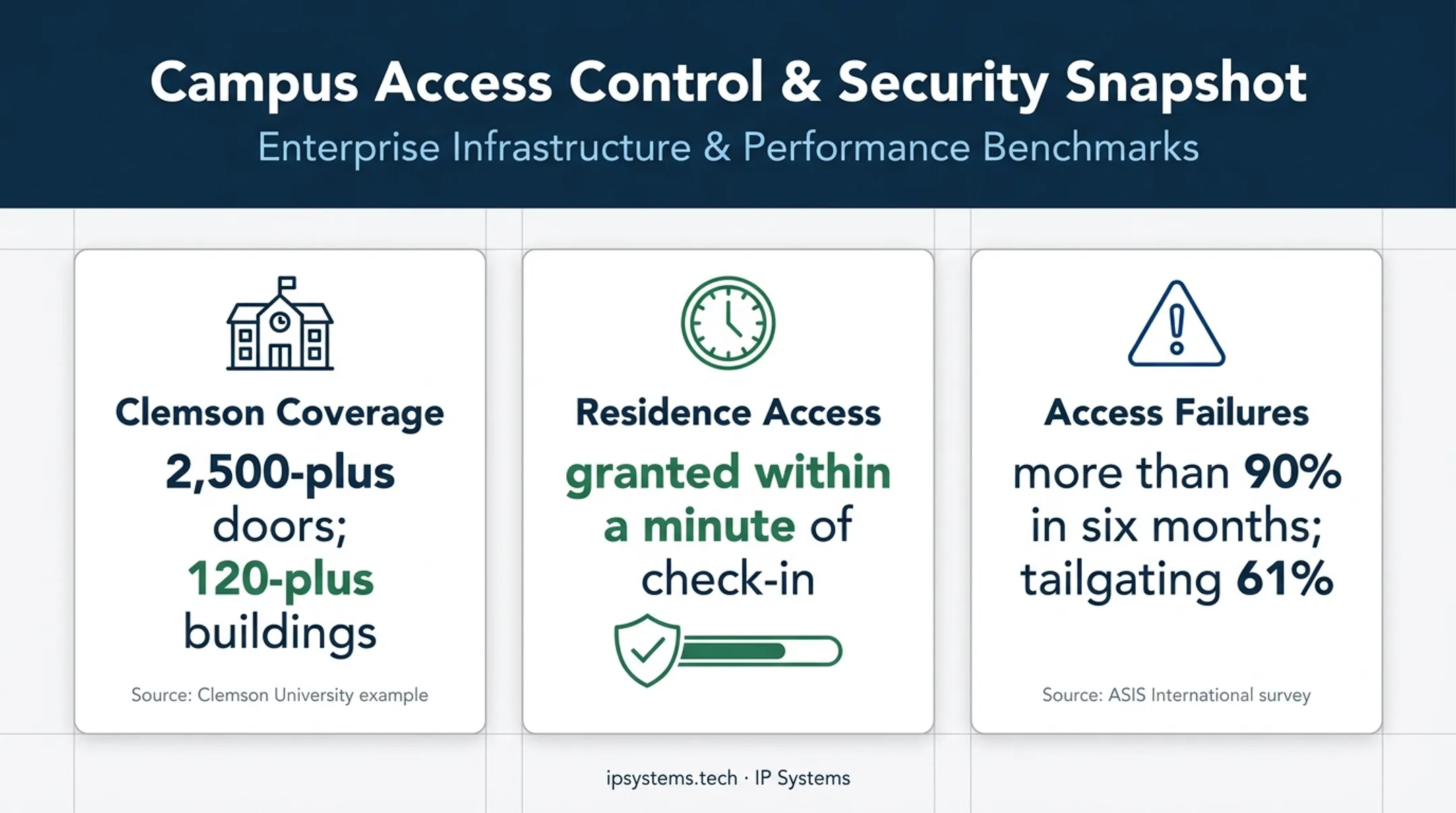

Clemson University is a well-documented example. According to a Genetec case study, the university manages more than 2,500 doors across 120-plus buildings and syncs credentials with its HR, student directory, course-registration, and housing systems.
In that case study, residents typically get access to their building and room within a minute of check-in, and public safety staff can pull access records and video within seconds during an investigation.
Integration also helps with a problem most facilities underestimate. An ASIS International survey of more than 1,000 security professionals found that 92% had experienced at least one access control failure in the prior six months, with tailgating the most common issue at 61%.
Badges alone won't stop someone following an employee through a door. Door-held alarms, cameras at key entrances, and awareness training close that gap.
Practical Limitations to Plan For
Even well-designed badge systems have limits:
- Lost or shared credentials weaken the whole system
- Reader failures or network outages can disrupt access
- Some employees resist using personal phones for mobile credentials
- Old permissions pile up without regular access reviews
How to Choose, Implement, and Manage a Badge Access Control System
Start with a site and risk assessment, not a product catalog. Before you compare vendors:
- Inventory every door and protected area
- Identify user and visitor groups
- Map security zones
- Document emergency egress requirements
- Survey the door hardware: frames, hinges, strikes, and exit devices
That last item gets skipped more than any other. When it does, the install turns up doors that can't take the specified lock, and the project picks up change orders.
Requirements and Total Cost
Look at the full scope, not the badge price: readers, controllers, locks, software licensing, installation, network and electrical work, training, and support. Avigilon's buyer guide notes that door count, controller count, and cloud subscription fees all shape total cost more than the badge does.
Reusing existing readers and panels can lower the first-year cost. It can also lock you into Wiegand wiring and legacy prox for another decade. Weigh that against moving to OSDP readers and encrypted credentials.
Implementation Steps
- Design access schedules and role-based permission groups around real traffic patterns
- Set up administrators and enroll employees before go-live
- Test normal and denied-entry scenarios at every controlled door
- Verify egress under power-loss and fire-alarm conditions, with the AHJ where required
- Train users, hand over documentation, and assign clear system ownership
In an occupied building, plan the cutover door by door so each opening is only out of service for a short window, and schedule noisy work around operations. After-hours work is possible but usually costs more, so decide which doors really need it.
Ongoing Management
Access control needs an owner after go-live. Regular tasks include:
- Deactivating lost or stolen badges right away
- Offboarding people promptly when they leave
- Quarterly user access audits that deactivate inactive accounts, passcodes, and badges
- Firmware and software updates on a set schedule
- Backup power testing and reader inspections
Write down the response to common events before they happen. For an after-hours badge use in a restricted area, that means an alert, a log review, a dispatch decision, follow-up with the badge holder, and temporary revocation until it's explained.
Resilience Questions to Ask Vendors
Life-safety codes apply here. Egress doors must open from the inside without a key, tool, or special knowledge. Building and fire codes also set how electrically locked doors behave on power loss or fire alarm. Ask any vendor:
- How do doors behave during a network outage?
- What happens to locks during a power interruption or fire alarm?
- Are fail-safe and fail-secure decisions documented per door?
- Who patches controller firmware, and how will we know it's done?
This is where an experienced integrator helps. IP Systems (IPS) has designed and installed access control systems for commercial and public-sector organizations since 1998. The platforms we install scale from a single door to thousands of doors and alarm points, so a system can grow with you.
After installation, IPS's Network Operations Center provides device-health monitoring and predictive maintenance for connected security systems. When it identifies an issue, we troubleshoot and resolve it through the maintenance contract, which helps catch reader or controller problems before they turn into a lockout.
Vendor Evaluation Checklist
- Relevant experience in your industry
- Installation and integration capabilities
- Documented cybersecurity practices
- How service calls are handled and scheduled
- Training and documentation provided at handover
- Scalability for future doors or sites
- Clear split of support responsibilities
If you want help working through that list for your building, Talk to a Security Specialist at IPS.
Frequently Asked Questions
How much does an access control system cost?
Cost depends on door count, number of sites, credential type, software licensing, installation complexity, and support needs. A scope review or site assessment gives you a real number; a generic per-door price usually doesn't hold up.
How does a badge system work?
An employee presents a credential, the reader captures the data, the controller checks permissions, and the door releases or stays locked. The system logs the event for later review.
What are the steps in the access control process?
The process moves through identification, authentication, authorization, an access decision, event logging, and ongoing review or revocation of credentials.
What is the best access control system?
The right system depends on site risk, industry regulations, door count, credential types, integrations, and budget. There is no single best option for every facility.
What are the different types of access control?
Access control models include discretionary (owner-controlled), mandatory (clearance-based), role-based (tied to job function), and rule-based (global policy rules). Most employee badge systems rely mainly on role-based access.
Where can I get employee badges?
Badges usually come through the access control manufacturer, your security integrator, or an approved credential provider. Confirm compatibility, encoding security, and replacement support before ordering.
