Introduction
Facility and security teams are retiring standalone, hard-wired door panels in favor of networked access control that works with the rest of the building's technology.
According to ASIS International's 2023 research, 93% of organizations call access control an essential piece of their broader risk management or security plan, and 54% have merged it with video monitoring.
The core job hasn't changed. You still need to control who enters which door, and when, without slowing people down or creating a maintenance headache. What changes is the toolset, and the questions you have to ask about the network, uptime, compliance and growth.
This guide explains what IP-based access control means, how readers and controllers work together, the deployment models, the benefits and risks, and when to bring in a professional integrator. We've also added the planning mistakes we see most often.
Key Takeaways
- "IP-based" means devices talk over a TCP/IP network. It does not automatically mean cloud-based.
- Plan the full stack: credentials, readers, controllers, locks, software and backup power.
- Look for central management, multi-site scale and video/alarm integration.
- Design in cybersecurity, network segmentation, emergency egress and offline behavior from day one.
- Put security and IT in the same room before the design is final.
What Is an IP-Based Door Access Control System and How Does It Work?
In physical security, Internet Protocol is the language devices use to exchange data over a network. When a door reader, controller or management server is "IP-based," those parts communicate across your LAN, WAN or another approved network instead of relying only on dedicated point-to-point wiring.
IP-Based, Cloud-Based, and Hosted Aren't the Same Thing
These terms get used interchangeably, and that causes confusion. It helps to separate three deployment models:
- Traditional (on-premises): server, software and control panels stay on site
- Hosted: the same software runs at a remote location, and your team still administers it
- Cloud / ACaaS: built for the cloud and used through a browser or app
An IP-based system can run on any of these. A fully on-premises system with an in-house server is still IP-based if its readers and controllers talk over Ethernet. Don't assume "networked" means "cloud."

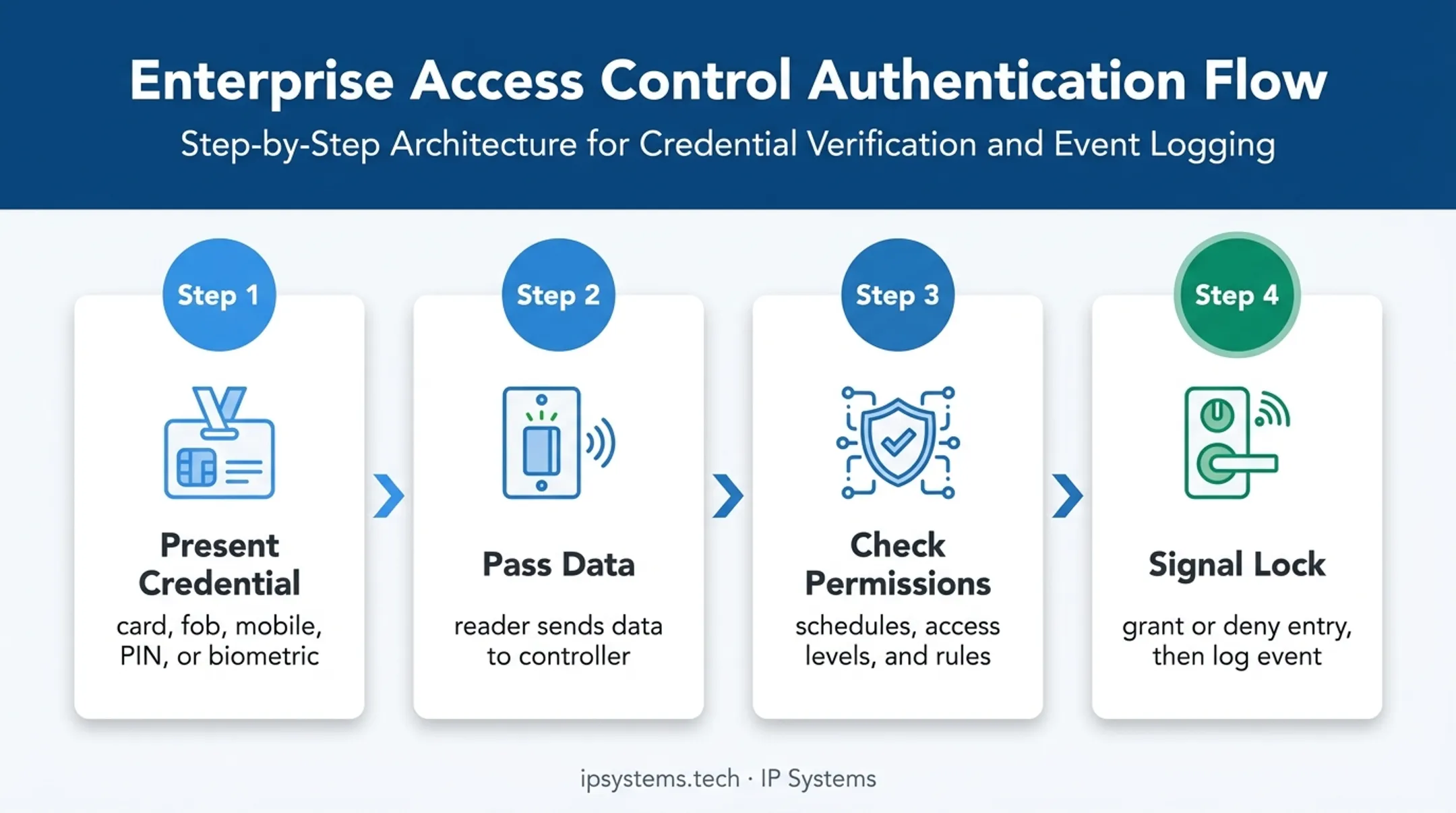

How an Access Request Actually Happens
Every credential check follows roughly the same sequence:
- User presents a credential at the reader: card, fob, mobile credential, PIN or biometric
- Reader passes that data to a controller or combined reader-controller
- Controller checks permissions against schedules, access levels and rules
- Controller signals the lock to grant or deny entry, then logs the event
Many controllers store authorized credentials and rules locally. A properly configured door can keep making decisions during a short server or network outage. Confirm this in writing before you buy, because it varies by manufacturer and model.
Beyond grants and denials, the system also tracks:
- Forced-door alarms and doors held open too long
- Anti-passback violations
- Visitor access and scheduled lock and release times
Those logs support investigations and compliance records. Paired with video, they let you match a door event to the footage from that moment.
What Are the Main Types and Components of IP Door Access Control Systems?
Every IP access control system uses the same basic building blocks, even when the hardware brands differ.
The Core Components
- Credentials: cards, key fobs, mobile credentials, PINs, biometrics or temporary visitor passes
- Readers: accept a credential and may include a keypad, biometric sensor or intercom
- Controllers: local devices that enforce permissions, watch door inputs and trigger the lock
- Electronic locks and door hardware: electric strikes, maglocks, electrified exit devices, request-to-exit sensors and door-position contacts
- Management software: user administration, schedules, access levels, alerts, audit logs and reports
Choosing a Deployment Model
Three deployment models dominate:
- On-premises/server-based: you own and manage the server, backups and updates
- Hosted: a third party runs the software environment, and you administer it remotely
- Cloud-based: the platform is delivered as a service, and the provider manages updates and infrastructure
Compared with older serial-wired panels, IP systems use standard network cabling, you manage them from a central console instead of a local panel, and you often expand by adding a network drop instead of a new dedicated cable run.
The trade-off: access control now depends on reliable network infrastructure, and on an IT team willing to support it.
How to decide: if you have a strong internal IT team, a server room you already maintain and a preference for keeping data on site, on-premises is still a solid choice. Plan for the server to be replaced every 4 to 6 years, well before the controllers (typically 7 to 10). If you have many small sites with no IT staff, a hosted or cloud model usually costs less to run, but check what happens at each door when the internet connection drops.
Power and Reader Communication
Power over Ethernet (PoE) can carry data and power to compatible readers and controllers on one cable, which often simplifies installation. The design still needs attention in a few places:
- Lock power and door hardware current draw (maglocks and electrified exit devices often need their own power supply)
- Switch PoE capacity and port budgets in each IDF
- Backup power for controllers, locks and network switches
- Device datasheets, since PoE limits vary by manufacturer
A common problem we see: the design counts the readers but not the switch. Doors get added over the years, and the PoE budget on an IDF switch runs out, or the switch has no UPS and every door on it goes dark in a power blip.

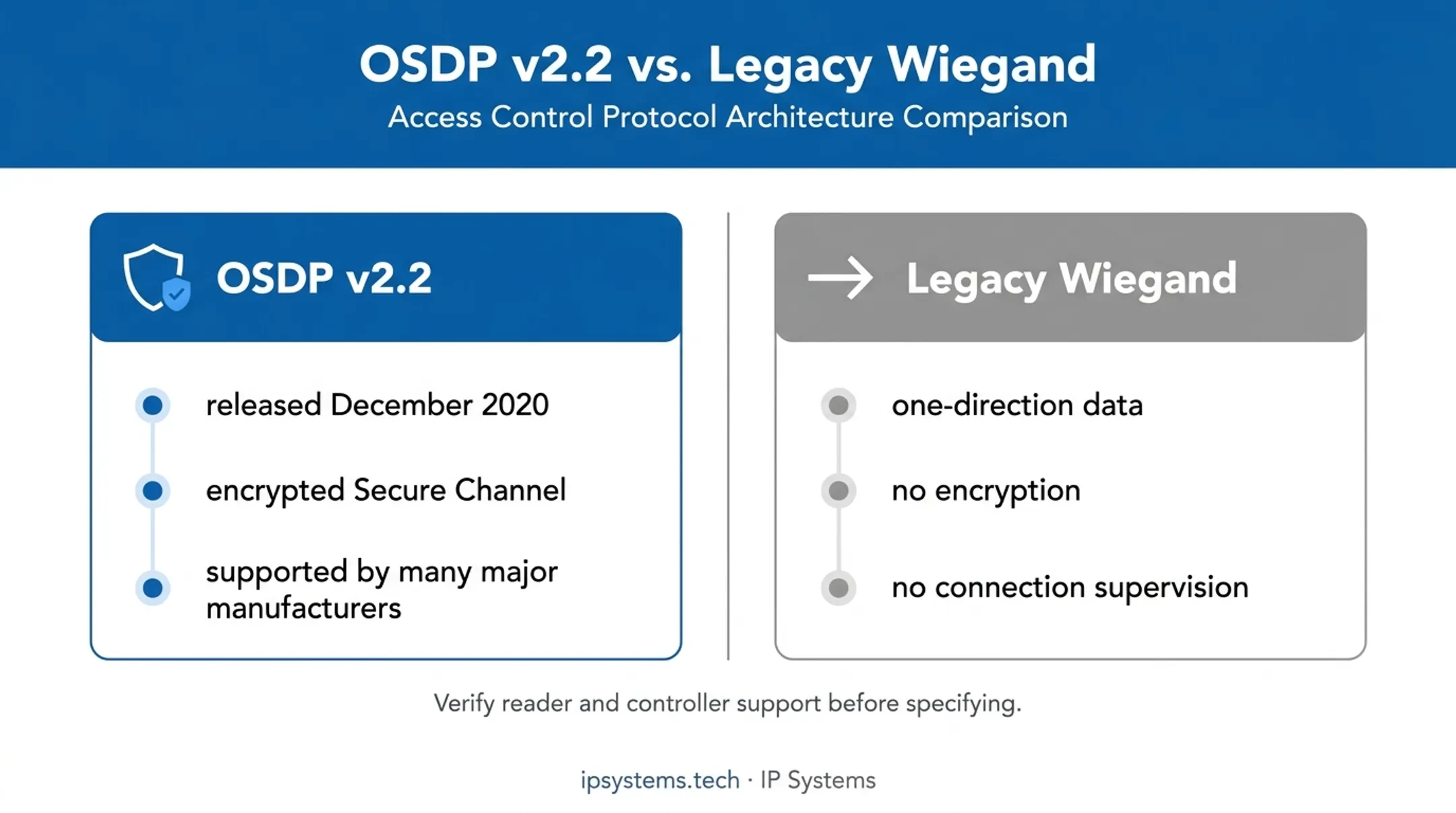

Reader-to-controller communication matters too. SIA's OSDP v2.2 standard, released in December 2020, supports encrypted Secure Channel communication, and SIA released an updated version 2.2.2 in 2024. Legacy Wiegand wiring sends data one way only, with no encryption or line supervision built in. Verify what your readers and controllers actually support, and confirm Secure Channel is turned on, not just available.
Selection Checklist
Before choosing a system, confirm:
- Total door count and number of sites
- Credential types the organization must support
- Integrations needed for video, alarms and visitor management
- Network readiness and available bandwidth
- Preference for server, hosted or cloud deployment
- Data retention needs and room for future expansion
What Are the Benefits of IP-Based Door Access Control?
Central management is usually the first benefit teams notice. Administrators can add or remove access, change schedules and pull activity logs across sites without visiting each door.
Centralized, Remote Management
For multi-site organizations, that control matters. A facilities manager at a hospital network, multi-branch bank or school district can push a schedule change or lock down one entrance from a single console, without sending staff to every building.
Scalability, With a Caveat
Adding doors, buildings or campuses is simpler with IP-based systems than with older serial-wired panels. It still isn't automatic. Confirm controller licensing, network capacity and system architecture can support the new doors before you set a rollout date.
Infrastructure Reuse on Ethernet and PoE
Because many IP systems run over standard Ethernet and PoE, some projects reuse existing network paths instead of pulling dedicated cable to every door. IP Systems reuses existing infrastructure when it meets the client's needs. Treat reuse as a design option, not a promised saving, because results vary by building. Old cable of unknown quality, undocumented splices and full IDF racks can erase the saving quickly.
Integration Multiplies the Value
An access control system that only opens and secures doors leaves value on the table. Connect it to IP video, intrusion alarms, visitor management and identity directories, and scattered events become one picture:
- Video correlation: confirm who triggered a forced-door or denied-entry alarm
- Alarm integration: see security events across systems in one view
- Visitor management: track temporary credentials and guest activity
- Identity sync: keep permissions aligned with HR and time-and-attendance records
IP Systems has technology alliances with manufacturers including HID, Bosch, LenelS2, Motorola Solutions and Axis, which lets us design access, video and alarms to work together instead of living on separate systems.
The trade-off to weigh is one platform versus best-of-breed. One platform is simpler to train on and support. Mixing makers can fit specific needs better, but every integration is something that has to be retested after each software update.
With device-health monitoring through the IP Systems NOC, teams get earlier warning when a reader or controller starts to fail, instead of finding out when someone can't get through a door.
Planning and Securing an IP Access Control Deployment
Deploying IP access control well takes more than plugging in readers. It needs coordination between security and IT teams from day one.
Network and Cybersecurity Requirements
Access control traffic should live on a segmented or dedicated security VLAN, not share open space with general office traffic.
CISA's cybersecurity and physical security convergence guidance warns that connecting security devices to networks expands the attack surface of a facility and makes traditional physical security devices more exposed to cyber threats.
Practical steps we recommend:
- Network segmentation and minimal exposure to the internet
- Strong authentication and least-privilege administrative access, starting with replacing installer passwords. In Mastering Modern Security, IPS's Rob Jackson describes an installer's password left unchanged for 15 years; use a password manager, unique passwords and annual resets of critical accounts
- Encryption in transit for credential and event data
- Timely firmware patching, with a named owner, and regular vulnerability review
- Documented logging and clear vendor support responsibilities
Patching delays have real costs. In the 2017 Equifax breach, attackers exploited a web-software flaw for which a patch had been available for about two months, exposing data on roughly 147 million people. That was not a physical security system, but an unpatched door controller is the same kind of open network device.
Plan for Power and Network Interruptions

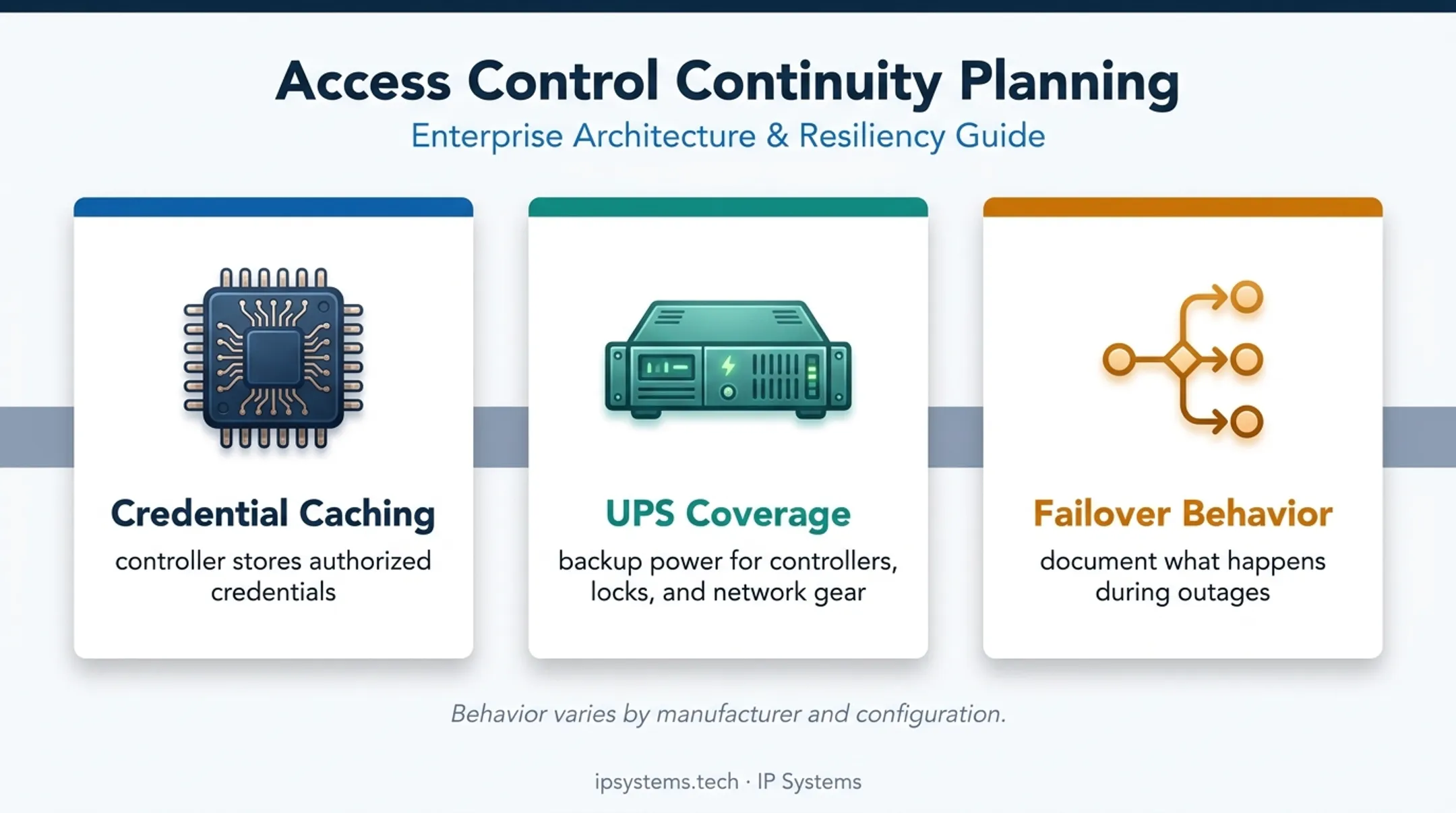

Ask your integrator directly: what happens to each door if the network goes down, or if power fails? Controller-side credential storage, UPS coverage and documented failover behavior all affect the answer, and it varies by manufacturer and configuration. Get it in writing.
Life-Safety and Egress Come First
Fail-safe versus fail-secure decisions, emergency egress, fire-alarm interfaces and accessibility standards aren't design preferences. They're often code requirements. Review door hardware with the authority having jurisdiction before you finalize the design, especially for doors on egress routes. A maglock on an egress door that doesn't release on fire alarm is one of the most common findings at a fire marshal walkthrough, and it is expensive to fix after the ceiling is closed.
Run a Pre-Installation Assessment
A pre-installation assessment should document:
- Every door, frame and lock type (a door-hardware survey)
- Reader locations and cabling paths
- Available network drops, PoE capacity and power sources
- Restricted areas and user groups
- Integration requirements
At IPS, every project starts with a risk and needs assessment. For many organizations the first step is an obligation-free system assessment, where we evaluate the property and identify risks before recommending a design.
Compliance and data retention rules vary by industry and jurisdiction. Confirm them with your security, legal and IT teams and code officials before you finalize the system.
Choosing an IP Access Control Implementation Partner
Complex environments such as hospitals, school districts, government facilities, manufacturing plants, data centers and multi-site commercial portfolios rarely do well with a hardware-only vendor. They need a partner who can assess the site, design the system, install it correctly, document it and support it for years.
IP Systems has worked with businesses and public-sector organizations since 1998, providing design, installation and ongoing support for access control, video and intrusion alarm systems.
Clients include Cleveland Public Library, STERIS, Kettering Health and Lakeland Community College.
What to Look For in a Provider
When evaluating any integrator, ask about:
- Response process: how do they handle a down door or failed controller, and what is in writing?
- Documentation: will you receive as-built drawings, credential lists and system diagrams?
- Update management: who handles software and firmware updates going forward?
- Ongoing monitoring: is device-health monitoring included, or a separate line item?
- Expansion support: can the system scale as you add doors or buildings?
- Acceptance and training: how is every door tested, and who signs off?
A good partner closes those gaps after install instead of leaving them as open questions. IP Systems covers several through its Network Operations Center, which provides device-health monitoring, predictive maintenance and cybersecurity controls. Our support programs add two preventive maintenance visits per contract year and priority response times for remote and onsite support.
If you want a second look at your doors, network and long-term access control plans, schedule a security assessment with IPS. Call (330) 963-0064 or email salesteam@ipsystems.tech.
Frequently Asked Questions
Which is better, RBAC or ABAC?
Neither is better everywhere. RBAC assigns permissions by job role and fits straightforward org structures. ABAC evaluates conditions like location, time or device when policies are more complex.
What does IP-based mean?
IP-based means system devices (readers, controllers and software) communicate using Internet Protocol over a network such as Ethernet, a LAN or a WAN. It doesn't necessarily mean the system is cloud-managed.
What are the different types of door access control systems?
Categories include mechanical, electronic, standalone, networked IP, cloud-managed, biometric, card-based, mobile, keypad and hybrid systems. These labels often describe different aspects of the same deployment, not separate categories.
Is IP-based access control the same as cloud-based access control?
No. IP-based describes how devices connect to a network. Cloud-based describes where the management software and data are hosted. An IP system can be managed on premises, through a hosted provider or in the cloud.
What happens if the network or power goes down?
It depends on controller memory, lock type and backup power. Confirm offline access behavior, how events sync once the connection returns, UPS coverage and life-safety requirements with your integrator before purchase.
How many doors can an IP access control system manage?
Capacity depends on the controller model and software license. Platforms range from a single door to enterprise systems managing thousands of doors and alarm points across multiple sites.
