That gap matters. Anyone who can reach a rack can unplug it, copy data to removable media or plant hardware, no matter how good the digital defenses are.
Data center physical security is the mix of people, procedures, facility design and technology used to deter, detect, delay and respond to unauthorized physical access, theft, tampering and environmental damage. This article covers the layers that make it work, the access control and video behind them, the standards that shape requirements, the mistakes we see most often, and how to keep it all working after installation day.
Key Takeaways
- Physical security protects the people, hardware and media inside the facility, not only the network path to it.
- Good protection is layered, from the property line to the cabinet door.
- Access control, video, visitor procedures and environmental monitoring only work well when they are tied together and someone owns them.
- Size the controls to your risk, data sensitivity, tenant model and contract obligations. More hardware is not the same as more security.
What Data Center Physical Security Means
Physical Security vs. Cybersecurity
The two solve different problems. Cybersecurity keeps unauthorized users out of networks, applications and data. Physical security controls who can reach the building, the server room, the rack and the storage media.
ISA's article on data center physical security makes the same split: physical security protects people, property and assets from theft, disaster and other damage, while software security prevents unauthorized access to the data on the servers. It also makes the point that a physical breach can make the software controls useless.
Neither replaces the other. A hacked firewall and a server room door left open end in the same place: compromised data.
What Happens When a Physical Breach Occurs
A physical failure rarely stays small. Typical consequences include:
- Equipment stolen or tampered with inside the facility
- Digital controls bypassed by plugging straight into a device
- Downtime while affected systems are inspected or replaced
- Data copied or removed from storage media
- Safety incidents and compliance findings in regulated environments
The UK's National Protective Security Authority lists the physical perimeter and buildings, data halls and meet-me rooms among the risk areas data centre owners should plan for. Meet-me rooms deserve extra attention because they are where outside networks physically connect to yours.
These incidents are not hypothetical. In Iceland's "Big Bitcoin Heist" (December 2017 to January 2018), thieves took about 600 bitcoin-mining computers, worth roughly $2 million, from data centers. In Mastering Modern Security, IPS's Rob Jackson also describes an after-hours break-in to a server room where someone connected to the equipment and pulled data. The outdated alarm never detected it, and the video was only found afterwards.
After the incident come the recovery costs, the security upgrades and the conversations with customers and auditors.
Physical security protects the confidentiality, integrity and availability of data. It also supports uptime, deters theft and leaves records you can defend if an incident has to be investigated.

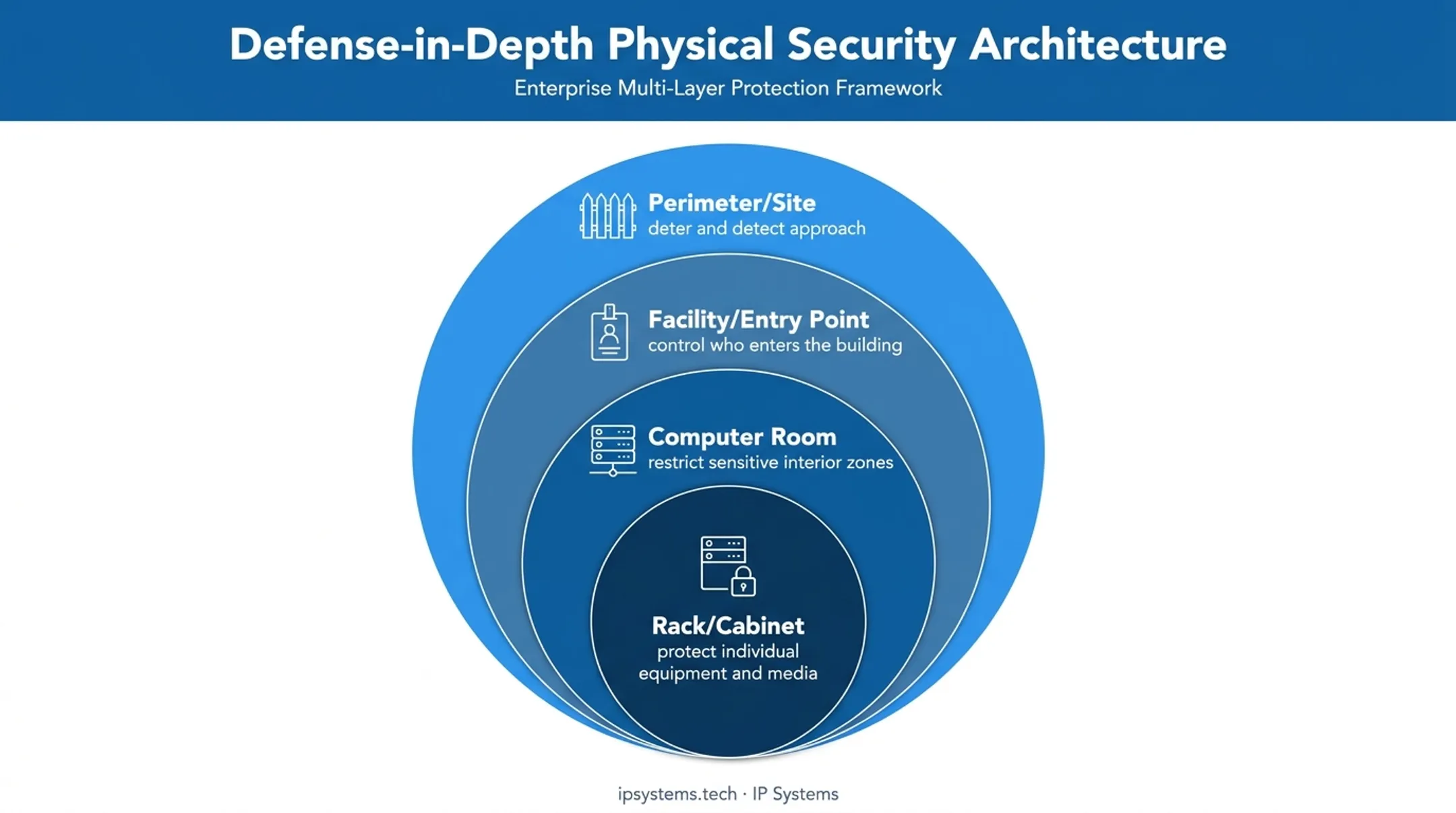

The Main Layers of Data Center Physical Security
No single control stops every threat. A fence can be climbed. A reader can fail. A camera can be blocked. Defense in depth stacks layers so that when one fails, the others still deter, detect, delay or document the attempt.
| Layer | Primary Objective | Typical Controls |
|---|---|---|
| Perimeter/Site | Deter and detect approach | Fencing, gates, lighting, exterior cameras |
| Facility/Entry Point | Control who enters the building | Badge/biometric readers, mantraps, visitor logs |
| Computer Room | Restrict sensitive interior zones | Role-based access, real-time video, forced-entry alerts |
| Rack/Cabinet | Protect individual equipment and media | Locked cages, access records, chain-of-custody |
Perimeter and Site Security
Site selection sets the tone before the first camera goes up. A good perimeter slows the approach and gives you time to detect it.
Typical controls include:
- Fencing or walls with controlled gates
- Lighting on approach routes and parking
- Exterior intrusion detection
- Video coverage of the site boundary
A practical note: exterior cameras are only as useful as the lighting and mounting positions behind them. Before you buy, decide what each exterior camera has to do (detect a person at the fence line, read a plate at the gate) and design to that.
Facility and Entry-Point Controls
Once someone reaches the building, controlled entrances take over. This layer usually involves:
- Staffed reception or security posts
- Badge and biometric authentication at doors
- Anti-tailgating measures such as mantraps or turnstiles
- Visitor preauthorization with temporary badges and escorts
- Access logs tied to every entry attempt
Tailgating is where this layer usually leaks. A mantrap or turnstile helps, but only if the door-held and door-forced alarms actually go to someone who responds. We often find those alarms muted because they were "too noisy" during a busy week.
Computer-Room and Restricted-Area Controls
Not everyone needs every room. Role-based permissions, two-factor verification for sensitive spaces, live video and door-held-open alerts keep movement in check.
This is also where tenant separation matters most in colocation, and where contractor and maintenance access needs its own written procedure.
Rack, Cabinet, and Media Controls
The last layer protects individual equipment and media:
- Locked cabinets or cages
- Per-cabinet access records
- Controlled handling of removable media
- Approved destruction procedures for retired drives
The access control platforms IPS installs can log entry down to the individual door, so facility managers review an auditable record instead of relying on memory. Electronic cabinet locks can extend that record to the rack, but plan the cabling and controller capacity for them early. Adding them after the cages are built is harder.
Physical Security Requirements and Standards

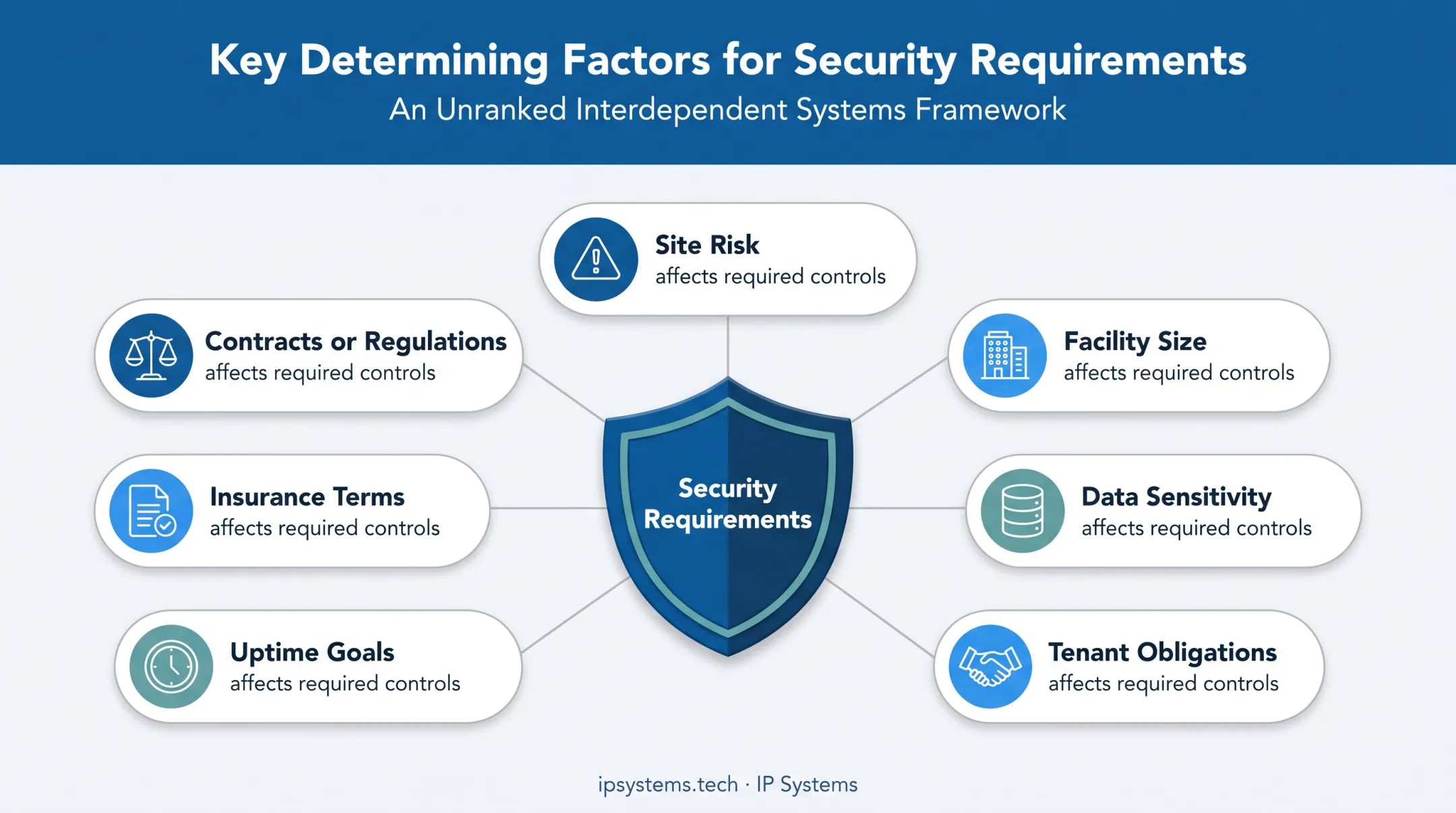

There is no single checklist for every data center. Requirements depend on site risk, size, data sensitivity, tenant obligations, uptime goals, insurance terms and the contracts or regulations that apply. Several frameworks still shape the decisions.
Core Technology and Facility Requirements
Most well-run facilities operate these controls as one coordinated system, not as separate tools:
- Access control
- Video surveillance
- Intrusion detection
- Security communications
- Visitor management
- Alarm monitoring
- Emergency notification
- Reliable event logging
Environmental and life-safety systems affect both security and uptime:
- Fire detection and suppression
- Water-leak detection
- Temperature and humidity monitoring
- Backup power and cooling
- Protection against regional hazards
Verify the technical specifications for these systems against current local codes with qualified fire, electrical and engineering professionals. The authority having jurisdiction (often the fire marshal) may add requirements of its own, especially around door release during a fire alarm.
Frameworks Worth Knowing
| Framework | What It Covers | Status |
|---|---|---|
| ANSI/TIA-942-C | Data center infrastructure, including physical security | Voluntary consensus standard (published 2024) |
| ISO/IEC 27001 | Information security management systems | Voluntary certification |
| NIST SP 800-53 | Physical and environmental protection controls | Mandatory for applicable federal programs |
| PCI DSS v4.0.1 | Restricting physical access to cardholder data | Required by payment card industry contracts |
| HIPAA Security Rule | Facility access, device and media controls for covered entities | Federal regulation |
| NFPA 75/76 | Fire protection for IT equipment (75) and telecom facilities (76) | Adopted through code or contract |
None of these apply everywhere. Confirm with legal counsel or a compliance specialist which ones actually bind your facility before you treat any framework as a mandatory checklist.
Where Tier Classifications Fit In
Uptime Institute's Tier system (I through IV) measures infrastructure topology and operational sustainability: power, cooling and fault tolerance. Uptime's own Tier page says its standards do not cover factors such as security, building codes and regional weather, because they vary case by case. So a Tier IV facility is not automatically better secured than a Tier II one. Redundancy and physical protection are separate conversations.

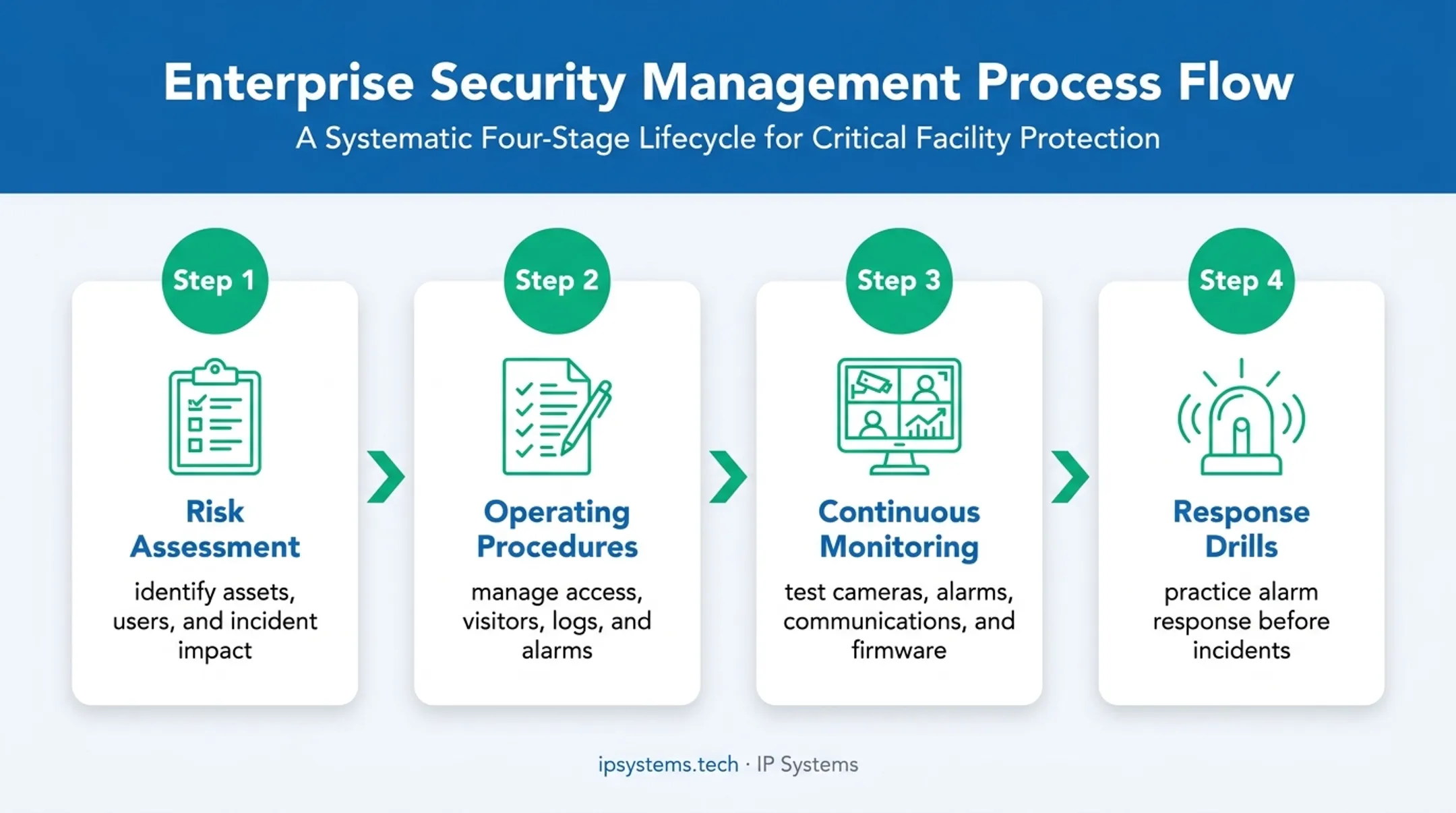

How to Implement and Maintain Data Center Physical Security
Installing cameras and readers is the easy part. Keeping them effective for years takes a documented process and an owner.
- Start with a risk assessment and asset inventory. Identify critical rooms, racks, entry points, authorized user groups and the impact of different incident types.
- Write the operating procedures. Cover onboarding and offboarding, access changes, visitor and contractor approval and vendor escorts. Include log reviews, alarm response and incident reporting.
- Monitor the security systems themselves. Camera health checks, reader and alarm testing, backup communications and firmware updates should run on a schedule, not when someone remembers.
- Run documented response drills. Staff should know what happens when an alarm triggers before it does. Take an after-hours badge in a restricted area: alert, log review, dispatch, follow-up and temporary revocation of the credential until it is explained.
Common Mistakes We See
- No one owns the credential database after go-live. Badges for departed staff and old contractors stay active for months. Pick a named owner and a review cycle before the system goes live.
- Retention set by the recorder default, not by policy. Decide how long video must be kept (contracts and auditors often specify it), then size storage to that number.
- Fail-safe vs. fail-secure picked without thinking. Egress doors and doors on a fire-alarm release need to be coordinated with the AHJ. Getting this wrong fails an inspection or creates a life-safety problem.
- No firmware or patching plan. Cameras, controllers and servers are network devices, and an outdated one is an unpatched device on your network. Someone has to be responsible for updates and for the VLAN they live on.
- Work in a live facility planned like new construction. Occupied data halls need shutdown windows, change control and escorted work. Build that into the schedule and the price up front.
Questions to Ask Before You Upgrade
- Can we reuse the existing cabling, controllers or cameras? (Often yes, if they still meet the requirement. An assessment should tell you which.)
- Should we do a phased rollout or a single cutover? Phasing costs more coordination but keeps the facility protected during the change.
- What does acceptance testing look like, and what documentation do we receive at handover?
- Who patches and monitors the system after installation?
A Practical Review Checklist
Before assuming your controls are solid, confirm:
- Access permissions match current job responsibilities
- Cameras cover every critical zone, with no blind spots
- Logs are kept for the required period
- Cabinets and removable media are tracked and controlled
- Environmental alerts reach the right people immediately
- Corrective actions are tracked to completion
Ongoing support is where internal teams usually get stretched. IP Systems designs and installs integrated video, access control and fire systems, and most of our clients keep us on through support programs after commissioning. Our Network Operations Center watches the health of the security devices themselves, so a failing camera or an unresponsive door controller gets flagged and worked through the maintenance contract before it becomes a coverage gap. If you want a second set of eyes on your current setup, Schedule a Security Assessment. It is obligation-free.
Frequently Asked Questions
What kind of security do data centers have?
Most data centers use layered physical controls: perimeter protection, badge and biometric access, video surveillance, security staff or remote monitoring, restricted server-room and rack access, environmental safeguards and documented visitor procedures.
What are the physical security requirements for a data center?
Requirements depend on risk level, facility type, data sensitivity, uptime needs, customer obligations and the standards that apply. Core categories include access control, video surveillance, intrusion detection, environmental monitoring and event logging.
What are the two areas of physical security within a data center?
External or facility-level protection covers the site, perimeter, entrances and building shell. Internal protection covers server rooms, cages, racks, cabinets, equipment and media inside the facility.
What are the 7 layers of security?
Layer models vary by source. A common approach runs from site selection and perimeter controls through facility entry, internal zones, computer rooms, racks or cabinets, media handling, and monitoring or governance.
What are the 5 D's of physical security?
The commonly cited five D's are deter, detect, deny, delay and defend (or respond). Labels differ by source, so use the model your facility or auditor uses.
What is tier 1, 2, 3, and 4 data center?
Tiers I through IV represent increasing infrastructure redundancy and fault tolerance, from basic capacity to fully fault-tolerant designs. Uptime Institute's Tier standards do not cover security, so a Tier rating says nothing on its own about physical protection.
