MarketsandMarkets valued the global access control market at $10.62 billion in 2025 and projects it will reach $15.80 billion by 2030, growing 8.3% a year (MarketsandMarkets). That growth reflects what many facility managers already feel: key-based security doesn't meet the operational or compliance needs of most commercial buildings anymore.
Key card entry systems use electronic credentials, readers and management software to control who enters which areas. This guide covers how they work, how credential technologies compare, what drives cost, the mistakes we see on card system projects, and when a professional integration partner makes the difference between a system that works and one that is fragile.
Key Takeaways
- Credentials you can revoke from software replace physical keys and avoid rekeying after a loss or termination.
- Encrypted smart cards resist cloning far better than older 125 kHz proximity cards.
- Cloud-managed platforms lower upfront cost and simplify multi-site admin; on-premises systems keep local control.
- A working system is hardware, software, policy and maintenance, not just readers.
- Access data tied to video and alarms makes investigations faster and more accountable.
What Is a Key Card Entry System and How Does It Work?
A key card entry system is a form of electronic access control that uses a card to identify a person and decide whether a door should release.
It's one part of a broader physical access control system. The National Institute of Standards and Technology (NIST) defines that as an electronic system that controls the ability of people or vehicles to enter a protected area through authentication and authorization at access control points.
A complete deployment often goes beyond cards to include mobile credentials, biometrics, keypads, visitor management, video and emergency lockdown controls.
The Five Core Components
Every key card system relies on the same building blocks:
- Credential: stores a unique identifier tied to a person, role or schedule
- Reader: captures the credential by swipe, proximity tap or NFC
- Controller: checks the credential against programmed permissions and makes the access decision
- Locking hardware: releases or stays secured based on that decision, while meeting fire and life-safety codes
- Management software: provisions users, assigns permissions and logs every event

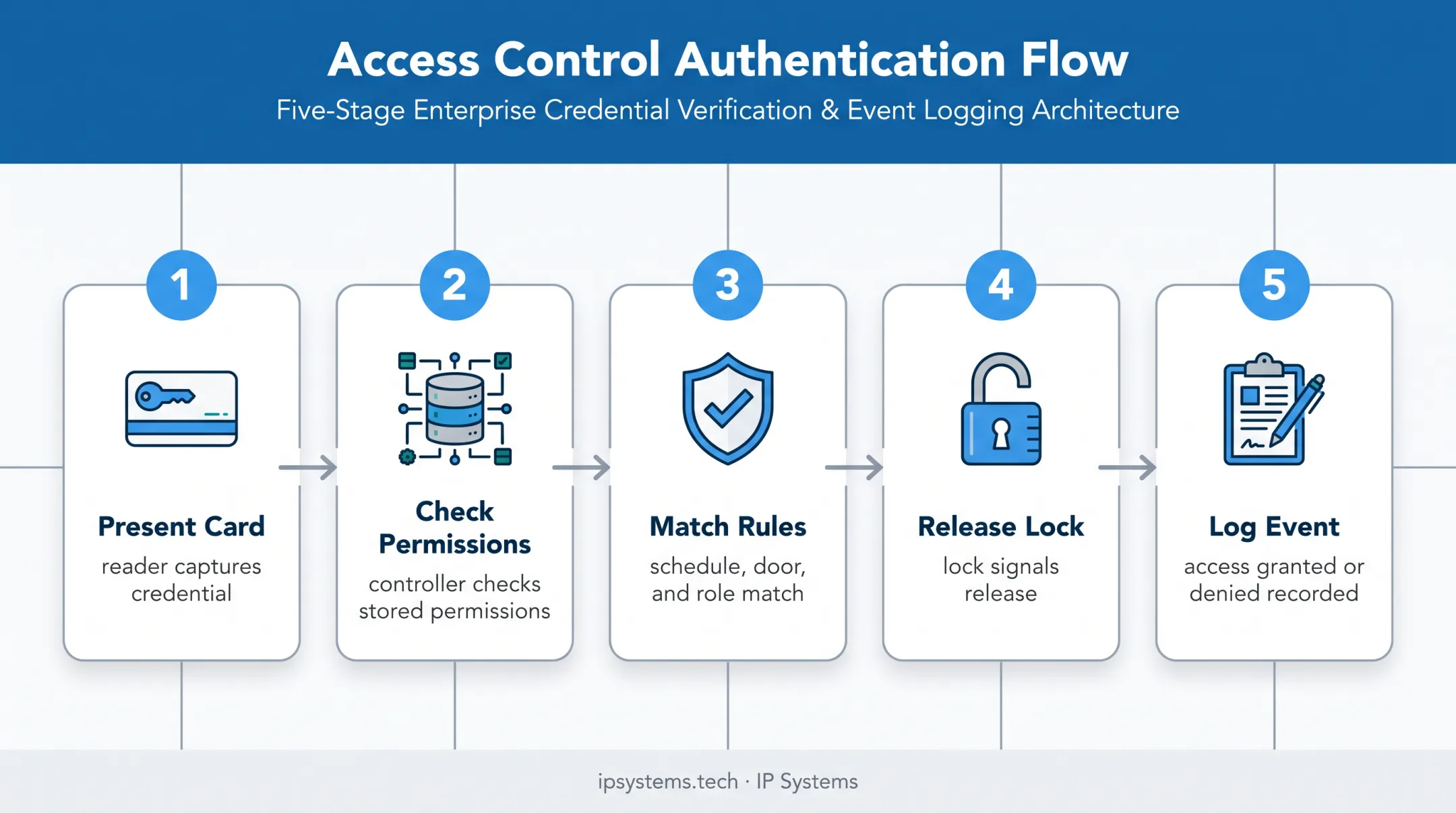

From Card Tap to Door Release
When someone presents a card, the reader captures it and sends it to the controller. The controller checks stored permissions, and if the schedule, door and role match, it signals the lock to release. The event is logged either way, granted or denied.
Administrators use this to build role-based, door-based and time-based rules. A contractor might get the loading dock only between 7 a.m. and 3 p.m., while a facilities manager has 24-hour access to every building on campus.

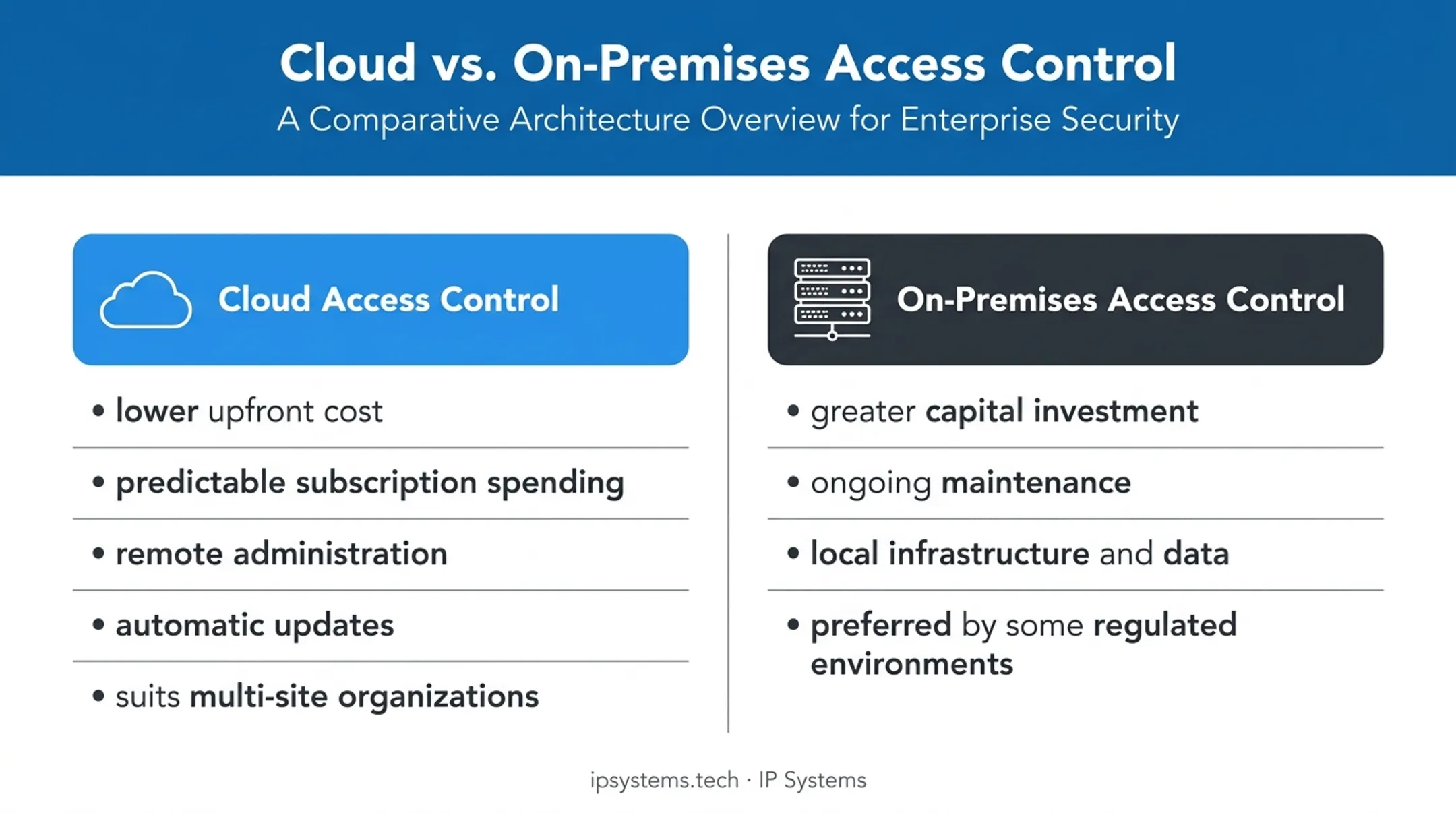

Cloud-Managed vs. On-Premises
Cloud platforms allow remote administration from anywhere and usually push updates automatically, which suits multi-site organizations. On-premises systems keep servers and data inside your own network, which some regulated environments prefer.
IPS Hosted & Managed Services let customers move infrastructure, applications and administration off site. They are designed for 24/7/365 system availability, with redundancy through certified data center partners, so IT teams have less on-premises equipment to maintain.
Either model still needs a sound site plan. Before installation, an assessment should confirm door hardware compatibility, power and network availability, emergency egress requirements and how the new system will work with anything already in place.
Types of Key Card Credentials and Access Control Systems
Not all key cards are built the same, and the differences matter for both security and cost.
Magnetic Stripe Cards
Magnetic stripe cards store data on a stripe, like older credit cards. They're cheap and simple, which suits low-risk uses. Trade-offs include:
- The stripe wears with repeated use
- Swiping is slower than tapping
- They are easier to duplicate than newer options
RFID and Proximity Cards
RFID proximity cards use radio signals for contactless entry. Read range depends on the reader model and installation conditions. Not all RFID cards are equal. Older 125 kHz proximity cards typically send their identifier with no encryption. Security researchers have shown these cards can be cloned quickly with inexpensive, widely available tools.
NFC and Smart Cards
NFC is a short-range wireless technology operating at 13.56 MHz. NFC Forum certification historically tested connections at 5 millimeters; in October 2025 the NFC Forum added certification for an extended range of up to 20 millimeters. Smart cards on this frequency, such as MIFARE or iCLASS families, can support encryption keys and mutual authentication between card and reader. That makes them much harder to clone than legacy proximity cards. Even so, the security depends on how the cards and readers are configured. A smart card system still running a manufacturer's default keys, or reading only the card's serial number, gives up much of that advantage.

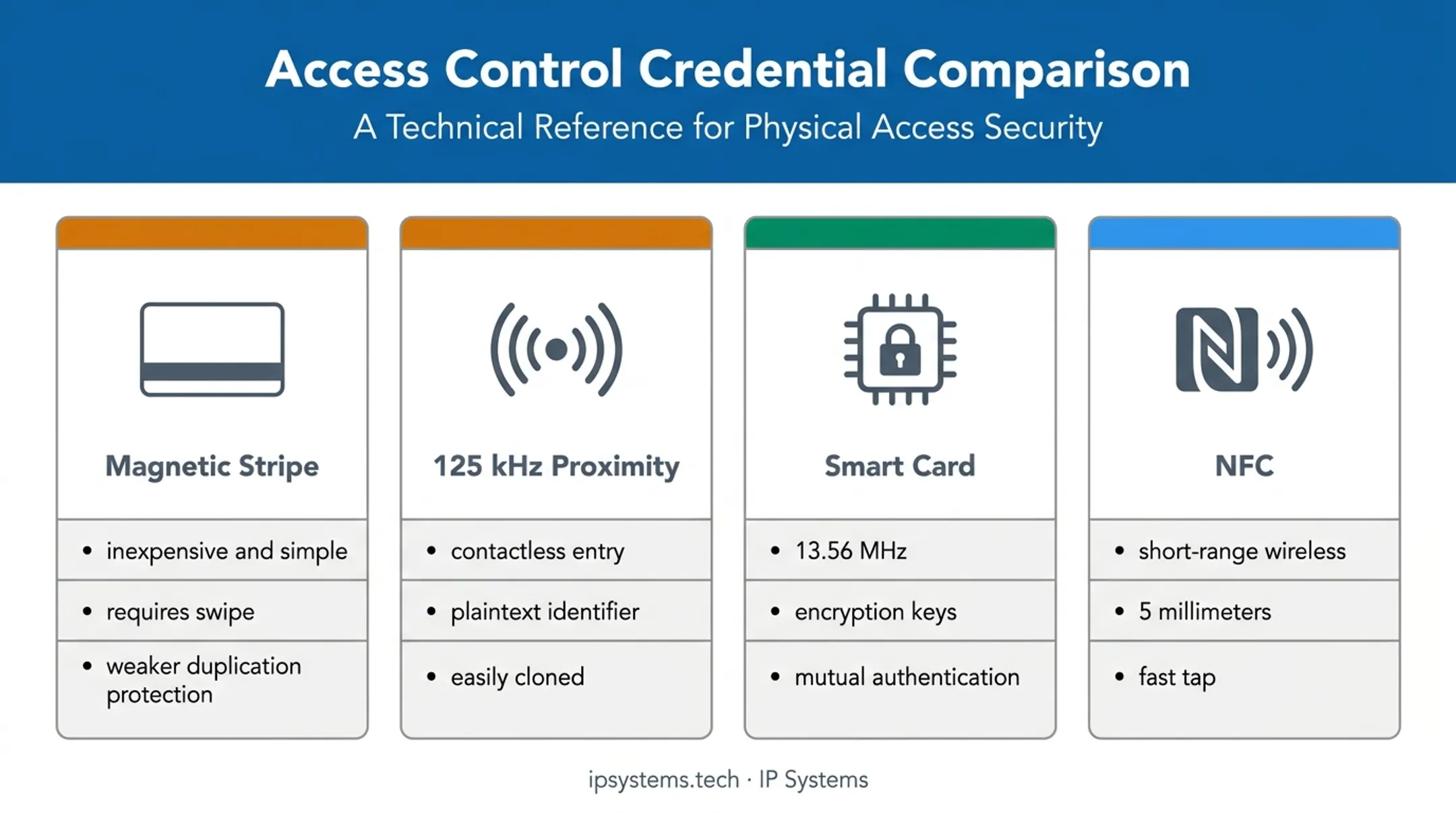

Comparing Credential Types
Side by side, common credential types compare like this:
| Credential | Security Level | Convenience | Durability | Best Fit |
|---|---|---|---|---|
| Magnetic stripe | Lower | Requires swipe | Wears with use | Low-traffic, low-risk areas |
| 125 kHz proximity | Lower | Contactless | Durable | Legacy systems, budget-limited sites |
| 13.56 MHz smart card | Higher | Contactless | Composite, wear-resistant | Offices, healthcare, education |
| NFC | Varies by implementation | Very fast tap | Device-dependent | Mobile-first environments |
Alternatives and Hybrid Approaches
Other options fit specific doors and rollout plans:
- Mobile credentials simplify provisioning on smartphones but depend on people having their phones
- Keypads, QR codes and biometrics suit individual doors or visitor scenarios
- Hybrid systems keep existing cards in place while adding mobile credentials or multi-factor authentication for sensitive areas only If you are moving off 125 kHz cards, a common approach is multi-technology readers that read both old and new cards during the transition, then retiring the old format on a set date. The mistake we see is skipping the retirement date. Two years later the old cards still work everywhere, and the upgrade bought very little security. Confirm current encryption options and reader compatibility with a qualified integrator before committing to one credential technology.
Benefits and Limitations of Key Card Access Control
What Key Cards Do Better Than Traditional Keys
Individual, revocable credentials fix the core problems that make mechanical keys unmanageable at scale:
- Each person gets a unique credential instead of a shared physical key
- Permissions can be set by door, schedule and role
- A lost card is deactivated in software, with no rekeying
- Every entry attempt is logged for audits and investigations
- Central software handles onboarding, offboarding and contractor access across sites
For multi-site organizations, that pays off during turnover and contractor projects. Administrators can grant or remove access remotely for a set window instead of visiting every door.
Where Key Cards Fall Short
Key cards still have limits:
- Cards get lost, forgotten or shared between coworkers
- Legacy 125 kHz cards carry real cloning risk
- Reader failures and network outages can disrupt access
- Someone still has to own issuance policies and run periodic audits
That last point is the one we see fail most often. The system goes live, the project team moves on, and nobody owns the cardholder database. Within a year there are active cards for people who left. In Mastering Modern Security, IPS's Rob Jackson lists former employees who can still get in among the hidden risks of an outdated, unmanaged system. He also describes a plant where an exterior gate reader sat broken for six months and visitors piggybacked through every day, because the system "still works most of the time." Name an owner before go-live and put quarterly access reviews on their calendar, including a check for broken readers and doors people have learned to work around.
Building in Safeguards
Most of these limits have practical fixes:
- Require prompt lost-card reporting and clear issuance policies
- Choose encrypted credentials over legacy proximity cards
- Add multi-factor authentication for sensitive areas
- Use backup power, offline access rules and scheduled reader maintenance
- Connect offboarding in HR to credential revocation where the platform supports it
Preventive maintenance keeps readers reliable. Locks, closers, door sensors and readers loosen and wear with daily use, and a door that no longer latches defeats the best card. IP Systems support programs include two preventive maintenance visits per contract year, which is where intermittent reader and lock problems get caught before they block a door.
How to Choose, Budget for, and Implement a Key Card System
Start With a Needs Assessment
Before comparing vendors, document the basics: how many doors, which user groups, traffic patterns, sensitive areas, operating hours and expected growth. A site walkthrough with a door-hardware survey finds problems a spreadsheet won't, such as worn frames, doors that don't latch, or fire-rated doors that limit which lock you can use.
What Actually Drives Cost
Pricing varies too much by scope for generic per-door figures to be useful. The real cost drivers are:
- Hardware: number and type of doors, readers, locks, controllers and cabling
- Credentials and software: card printing, encoding, licensing and cloud subscription fees
- Installation complexity: door modifications, network work and integration with existing systems
- Ongoing costs: training, support, device-health monitoring and future expansion
Deployment model, whether existing hardware can be reused, and how many sites need central administration all shape total cost. At IPS, pricing follows a scope review and is based on the number of devices and the services required. We reuse existing infrastructure when it still meets the client's needs.
Occupied buildings add cost that people forget to plan for: after-hours work around tenants, door cutovers that need someone on site, and coordination with the fire alarm contractor on doors that must release on alarm.
Cloud vs. On-Premises
ACRE describes cloud access control as lower upfront cost with subscription pricing that is more predictable, while on-premises systems carry higher capital expense plus separate maintenance and upgrade costs. The right choice depends on your IT capacity, data governance requirements and how many sites need central administration.
A simple way to decide: if you have one or two buildings, an IT team that already runs servers and a reason to keep data on site, on-premises is often fine. If you have many small sites and little IT support, cloud or hosted usually costs less to run over the life of the system.
Vendor Evaluation Checklist
Before signing with any integrator, confirm:
- Interoperability with existing readers, cards and video or alarm systems
- How the system handles lost credentials, power outages and offline decisions
- Audit log retention, backup procedures and cybersecurity controls
- Installation quality, training, documentation and response process
- Whether the system can expand without a full replacement later
- Who owns firmware updates after go-live
A Phased Implementation Process
- Assess the site and review risk across doors, users and sensitive areas
- Design the system and select credentials for traffic patterns and security levels
- Configure software and install readers, locks and controllers
- Test door behavior, then enroll users and access groups
- Train staff and roll out badge, visitor and exception policies
- Review performance after go-live and set support procedures
IP Systems supports businesses and public-sector clients through these phases with project managers, installation technicians and software specialists. Clients accept the installation and training before closeout, and most keep IPS for support afterward: help desk, software updates, device-health monitoring, preventive inspections and onsite service.
Applications and Integrations for Commercial and Public-Sector Organizations
Access requirements change with the environment:
- Healthcare facilities need restricted access to medication, records and clinical areas, with detailed event history for compliance reviews
- Schools, colleges and government buildings often need phased deployment, visitor control and central administration across many buildings
- Manufacturing, warehouses and data centers need zone-based permissions separating production floors, server rooms and hazardous areas
- Commercial and multi-tenant properties need tenant-specific permissions, amenity access and portfolio-level administration
IPS serves organizations in each of these industries. Clients include Kettering Health, Lakeland Community College and the Cleveland Public Library.
Integrations With Other Building Systems
A key card system is more valuable when it's connected to other building systems:
- Video surveillance, so an access event can be matched to footage of who walked through the door
- Alarm systems, for coordinated lockdown response
- Visitor management, to issue temporary credentials without manual badge creation
- HR systems, so offboarding in payroll removes building access automatically
- Active Directory, so administrators sign in to the access software with their existing network accounts instead of a separate shared login
Pairing access logs with video creates a time-linked record that speeds up investigations. Integration depth varies by platform, so confirm compatibility with your specific systems before purchase instead of assuming it will work.
Conclusion
A key card entry system coordinates credentials, hardware, software, policy and integrations. Ongoing support keeps that working as doors, users and risks change.
Getting it right takes more than picking hardware from a catalog. It takes an assessment of your actual doors, users and risks, and a system that can grow without being ripped out in five years.
If you're evaluating access control for your facility, whether that means a new system or working with what you already have, schedule a security assessment with IP Systems. We'll map doors, credentials and growth plans into a system you can expand without a rip-and-replace.
Frequently Asked Questions
How much does a key card entry system cost?
It depends on the number of doors, hardware, credentials, software, installation complexity, integrations and ongoing support. Ask for a site-specific assessment instead of relying on a generic price.
What are the best door entry systems?
The best system depends on your risk level, door count, user volume and growth plans. Key cards are one strong option alongside mobile credentials, keypads, biometrics and hybrid systems.
What is an electronic access control system?
An electronic access control system authenticates credentials, applies programmed permissions, controls locking hardware and records access events for authorized doors or areas, per NIST's definition.
What are the different types of door access cards?
The main categories are magnetic stripe, RFID/proximity, NFC and smart cards. Security, read range, encryption and management features vary by implementation.
Are key cards NFC or RFID?
Key cards may use RFID, NFC, magnetic stripe or smart-card technology. NFC is a specific short-range form of RFID communication, so confirm the exact technology with your card and reader manufacturer.
Do RFID cards really work?
Yes. RFID cards provide reliable contactless access when the card, reader, controller and locking hardware are properly matched and maintained. Performance depends on system design, installation quality and environment.
